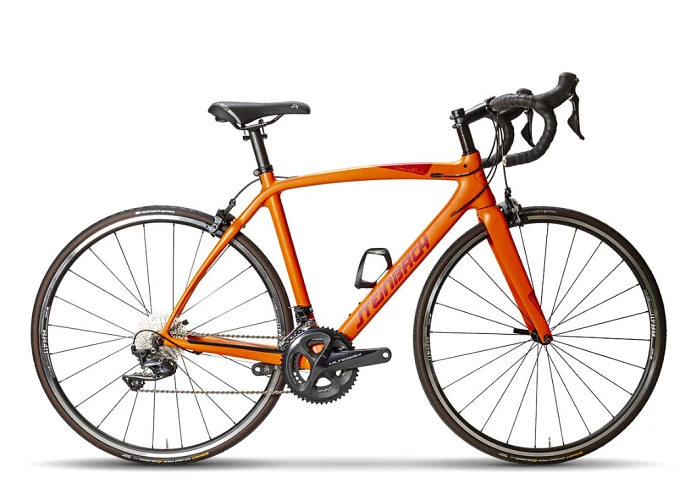

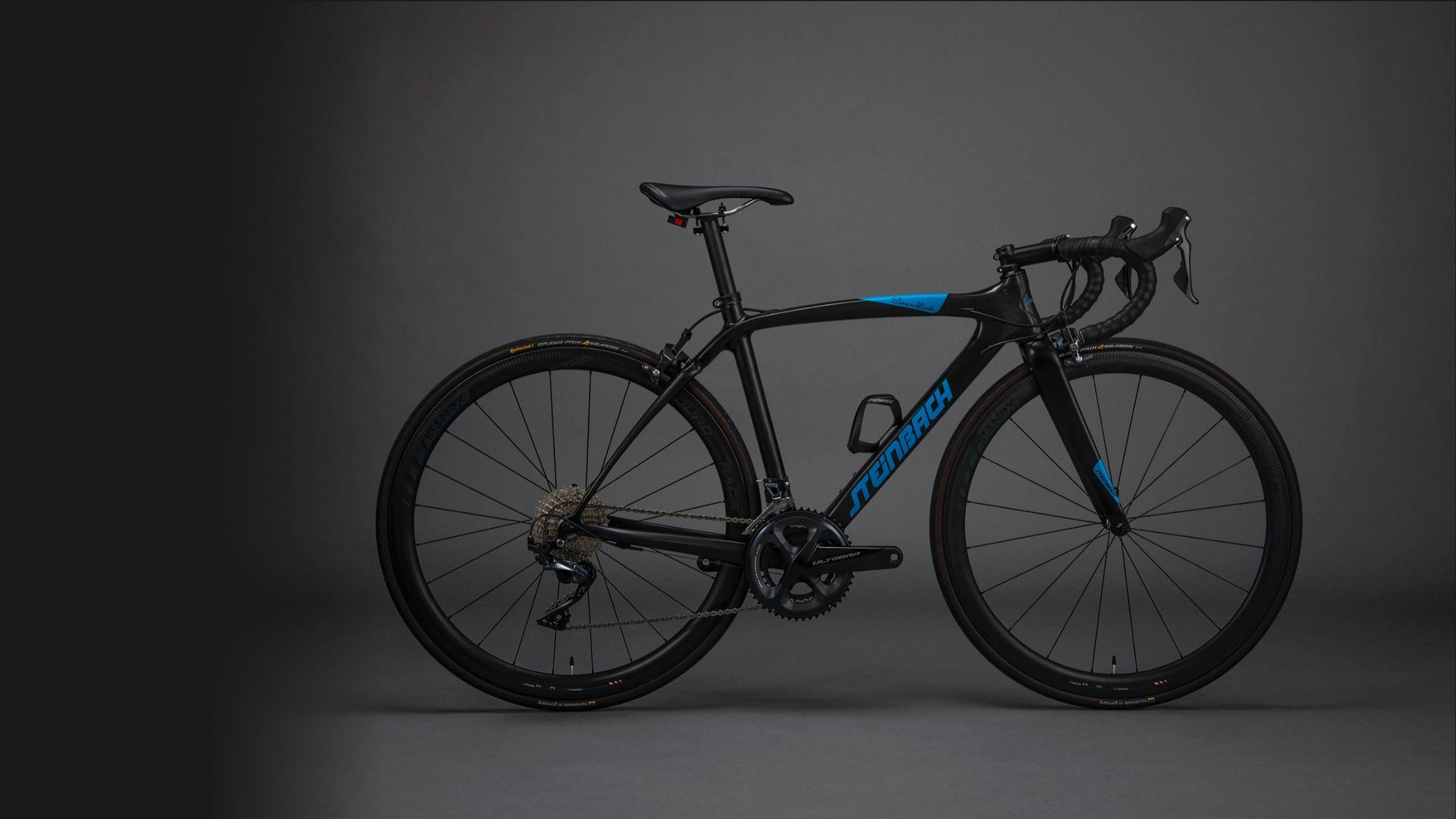

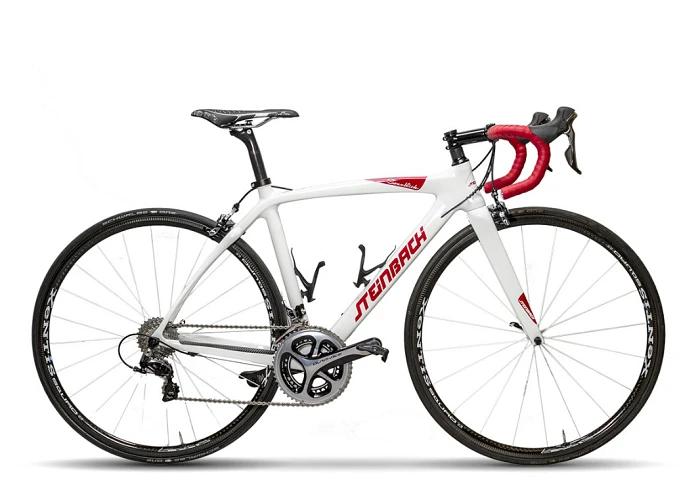

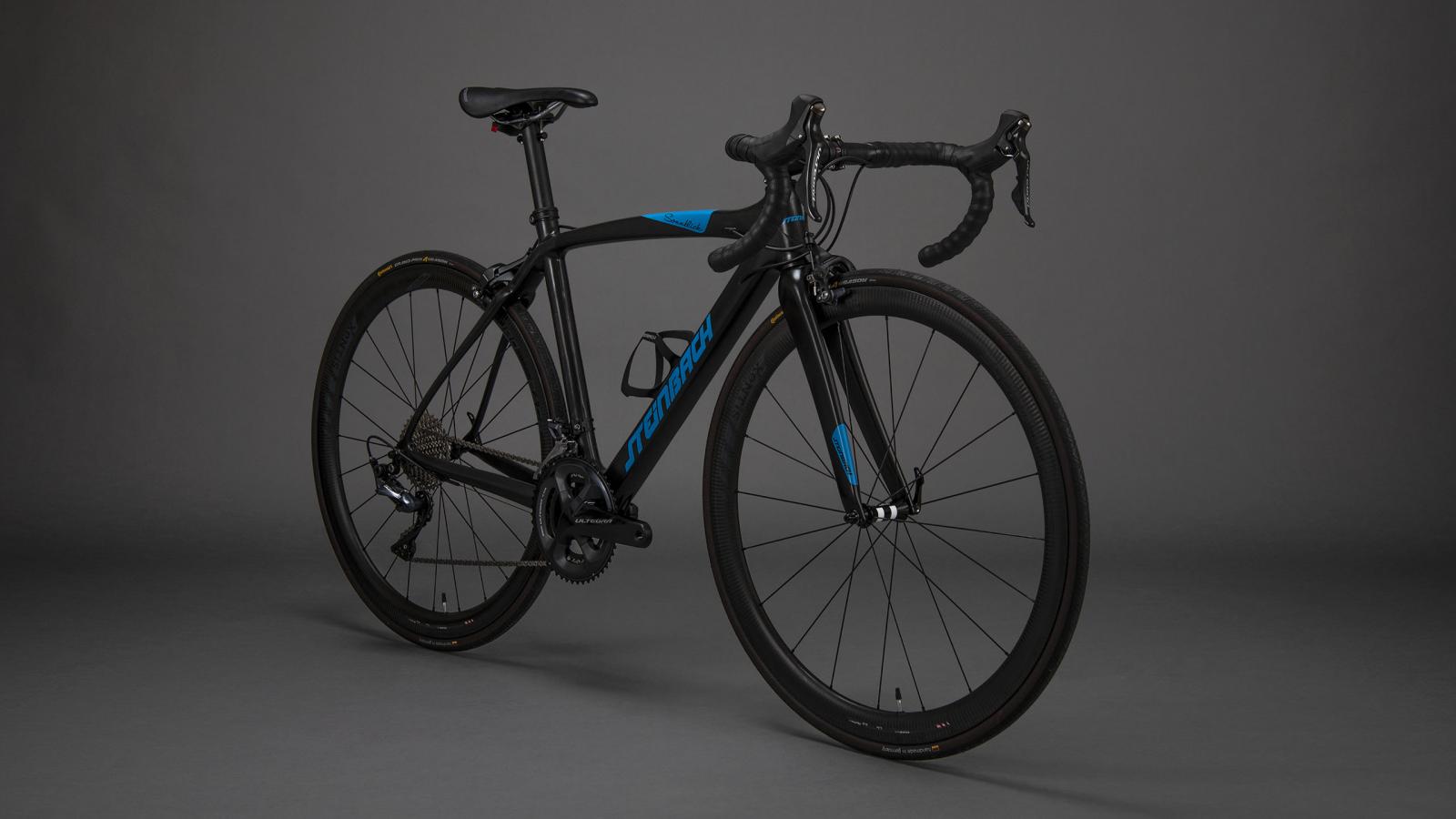

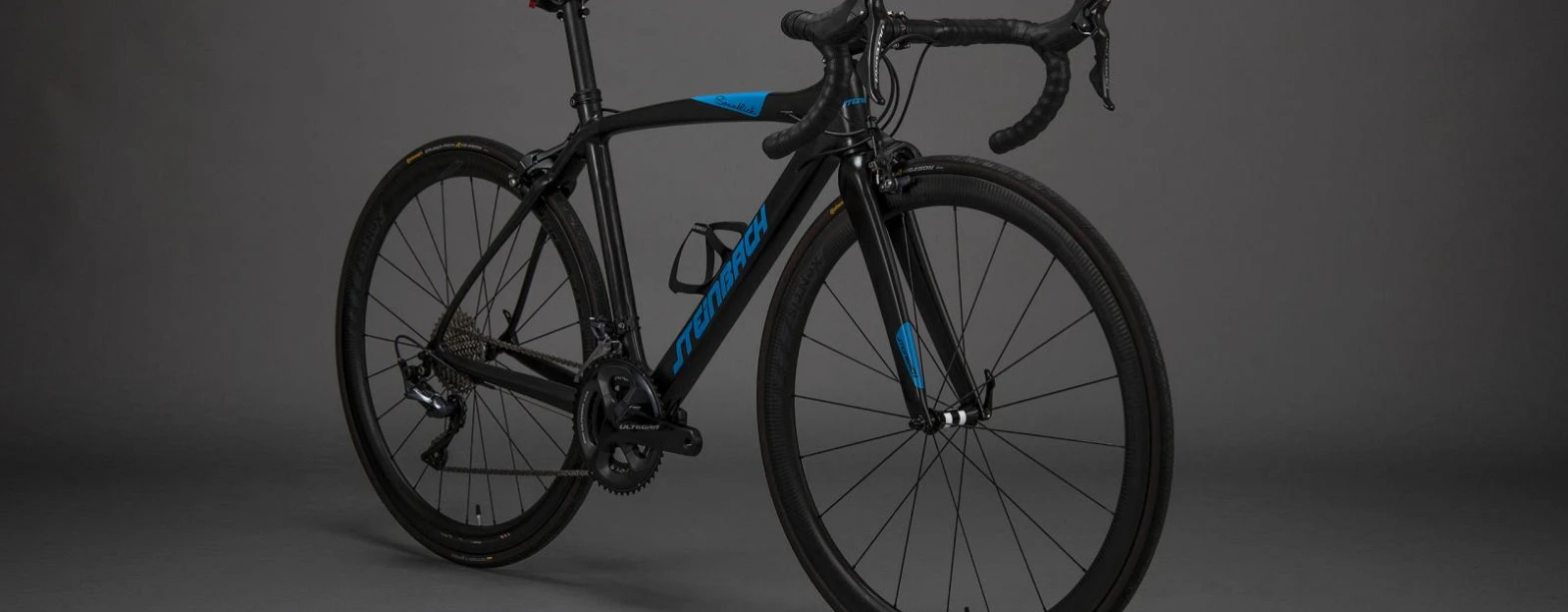

Like extremely long and hilly tours? Our Sonnblick is the perfect high-end road racing bike for professionals and ambitious amateurs. The slim and curved chainstays ensure maximum flex and ride comfort.

Designed for
Road
Rims size
700C
weight
from 6.5 kg

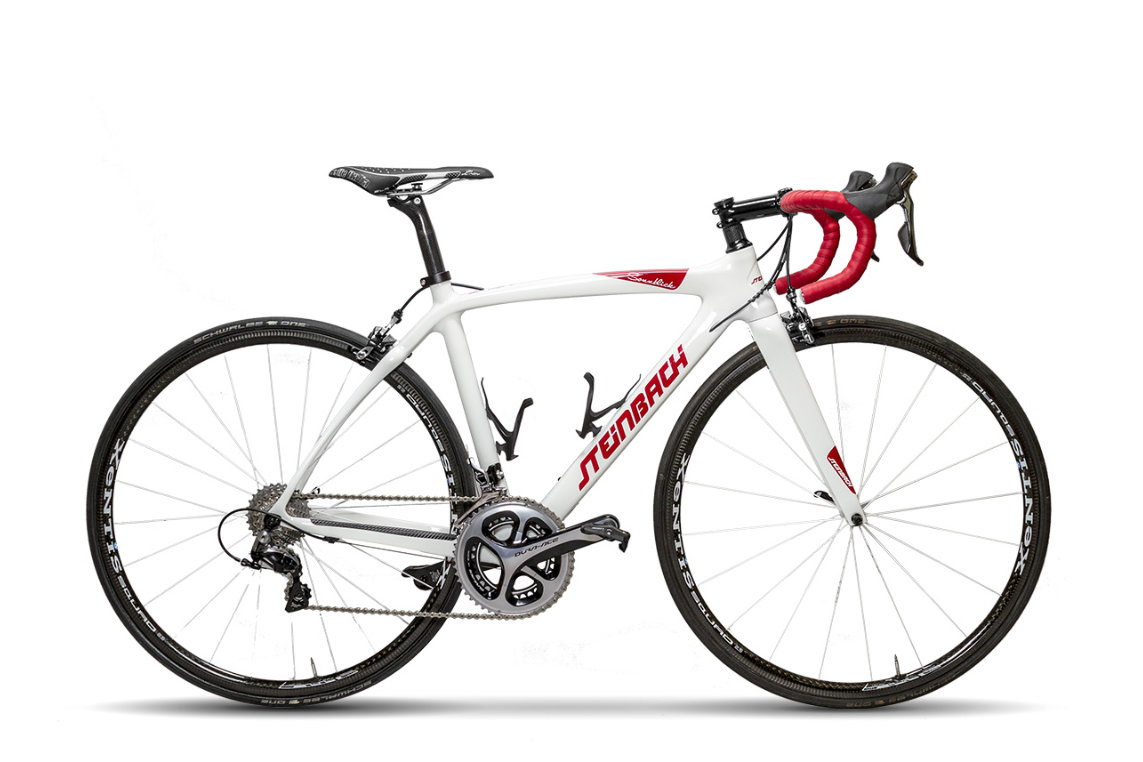

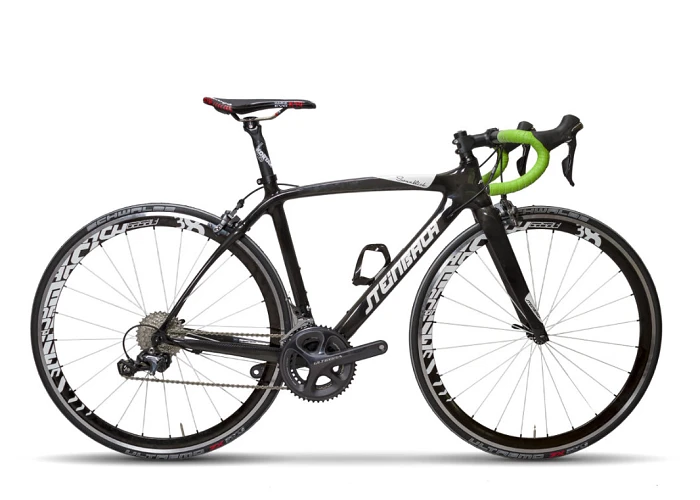

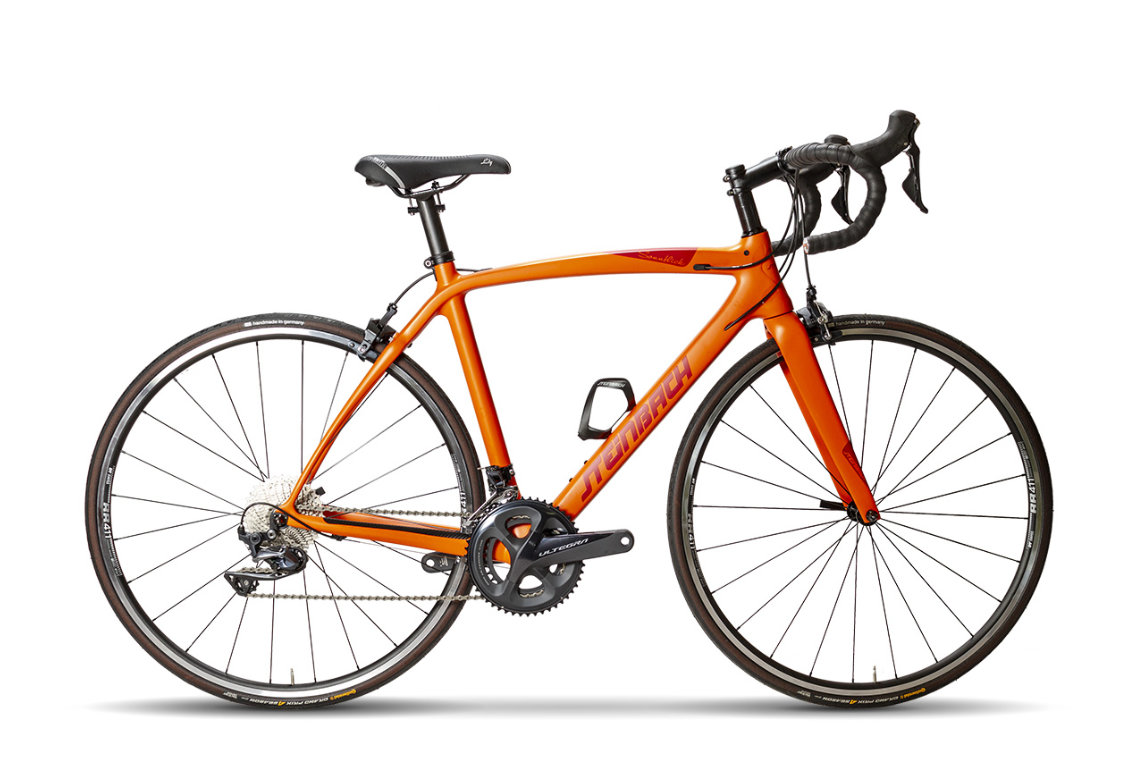

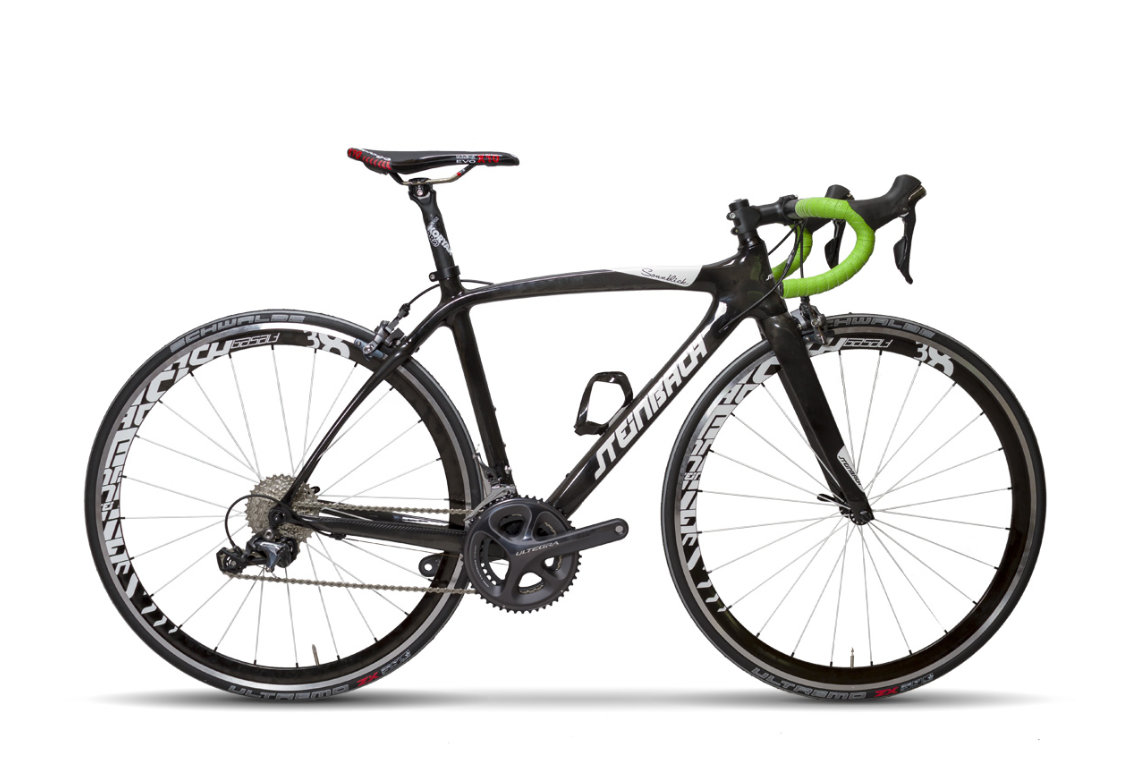

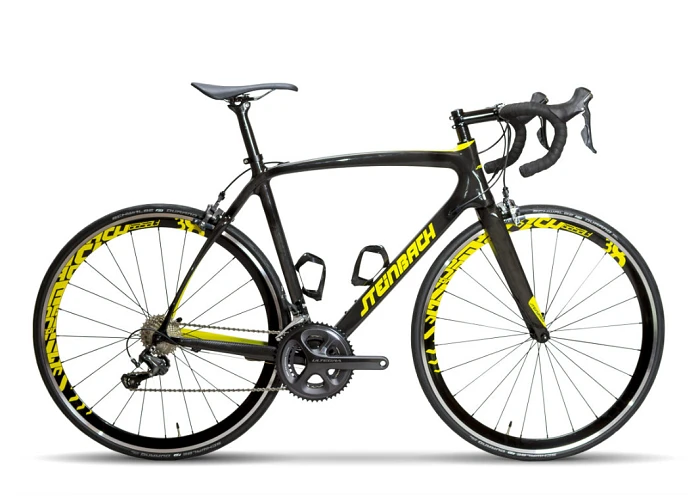

Individual design

Choose the colours and components of your bike to create your unique design. Thanks to our flexibility, our know-how and our experience, we can realise every step with the greatest care. Your name in bright green on a blue frame? Anything is possible! We design your new favourite bike together!

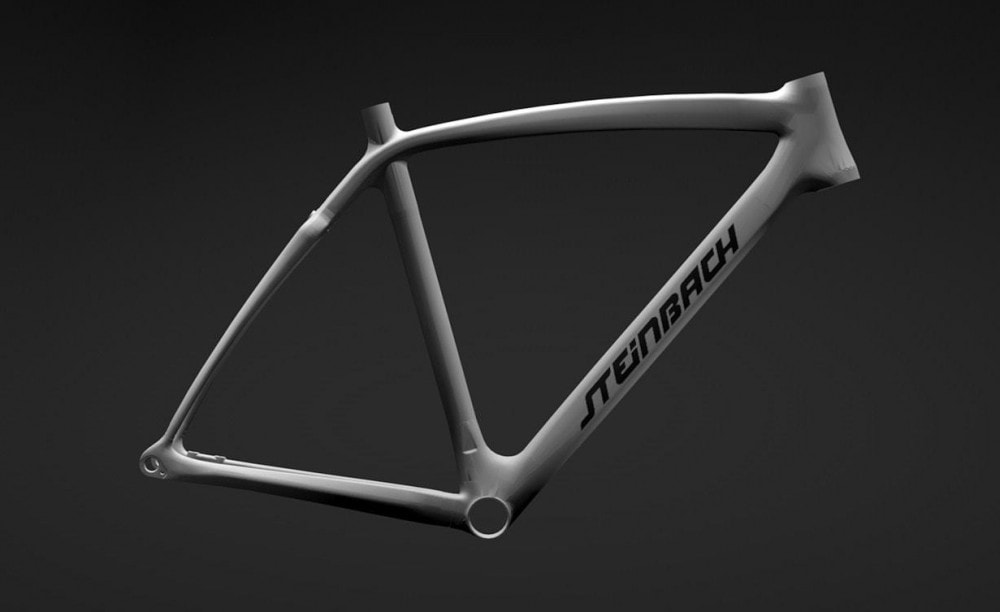

Carbon frame

Full carbon frame with oversized shaped tubes - perfectly shaped for maximum stiffness and maximum riding comfort. Internally routed cables ensure clear design and aerodynamics. Constructing a frame with the highest possible carbon content not only saves weight, but also contributes to the fact that we always want top quality for our athletes. A slim, curved rear triangle ensures maximum flex. Together with the athletes who push the material to the absolute limit, we are constantly developing further.



Accessories

Whether for a cycling trip or your daily ride to work, we equip your bike with the perfect accessories. So you’re always safely underway. From pedals to sports drink bottles. Perfectly prepared for that first cycling experience.



Specifications
specification
High-End
Premium
size
46cm, 49cm, 52cm
46cm, 49cm, 52cm
frame
Sonnblick Carbon
Sonnblick Carbon

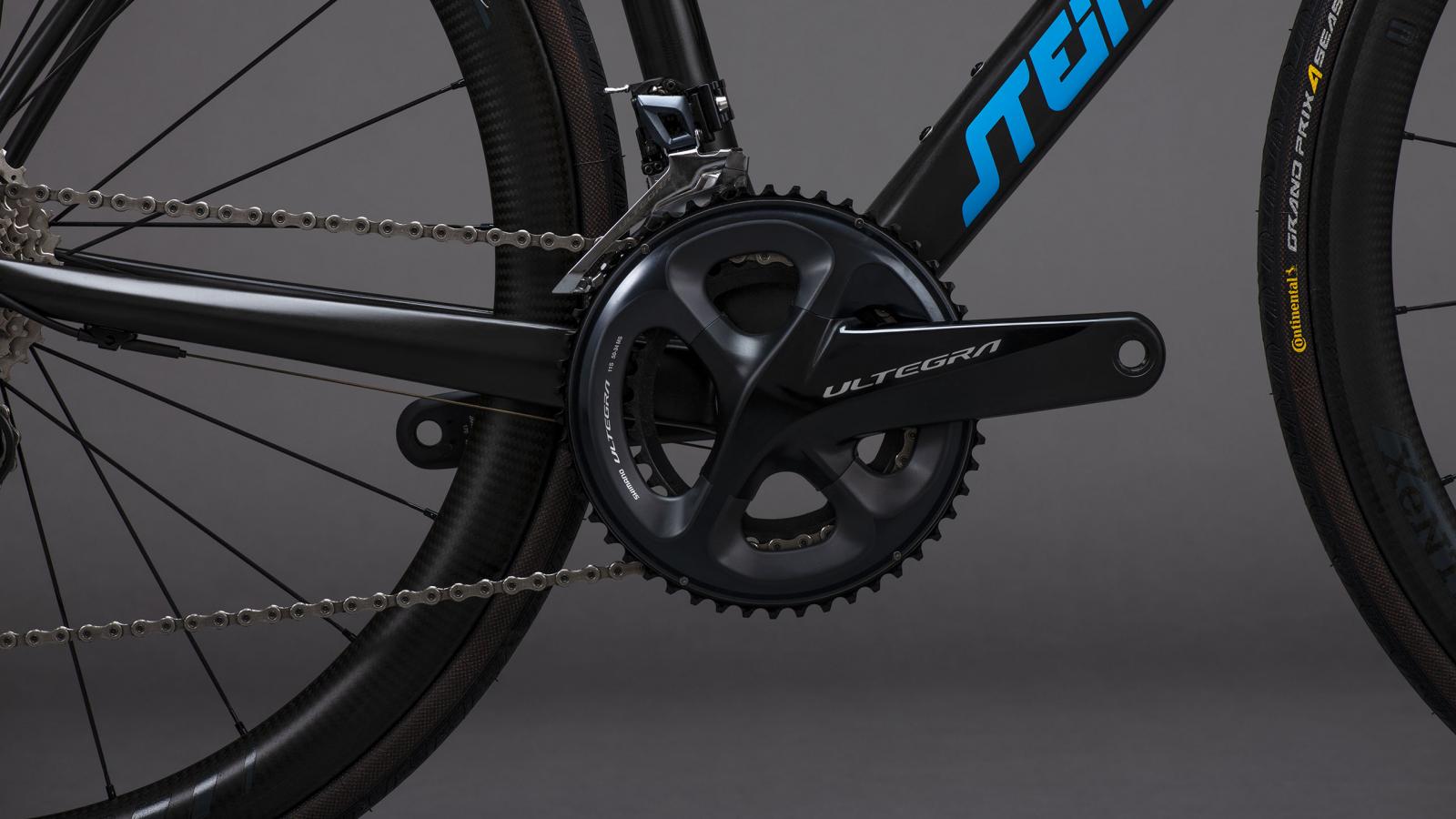

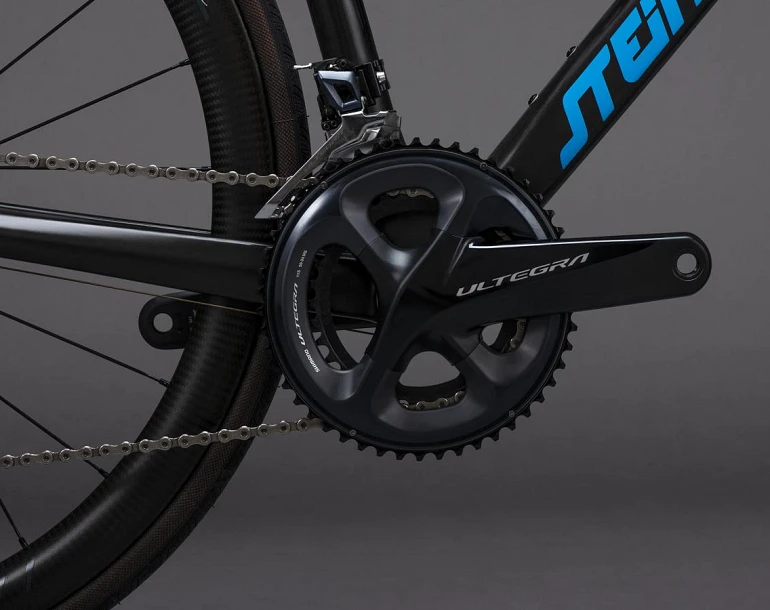

chainset
Shimano Ultegra 2x11
Shimano Dura-Ace 2x11 Di2

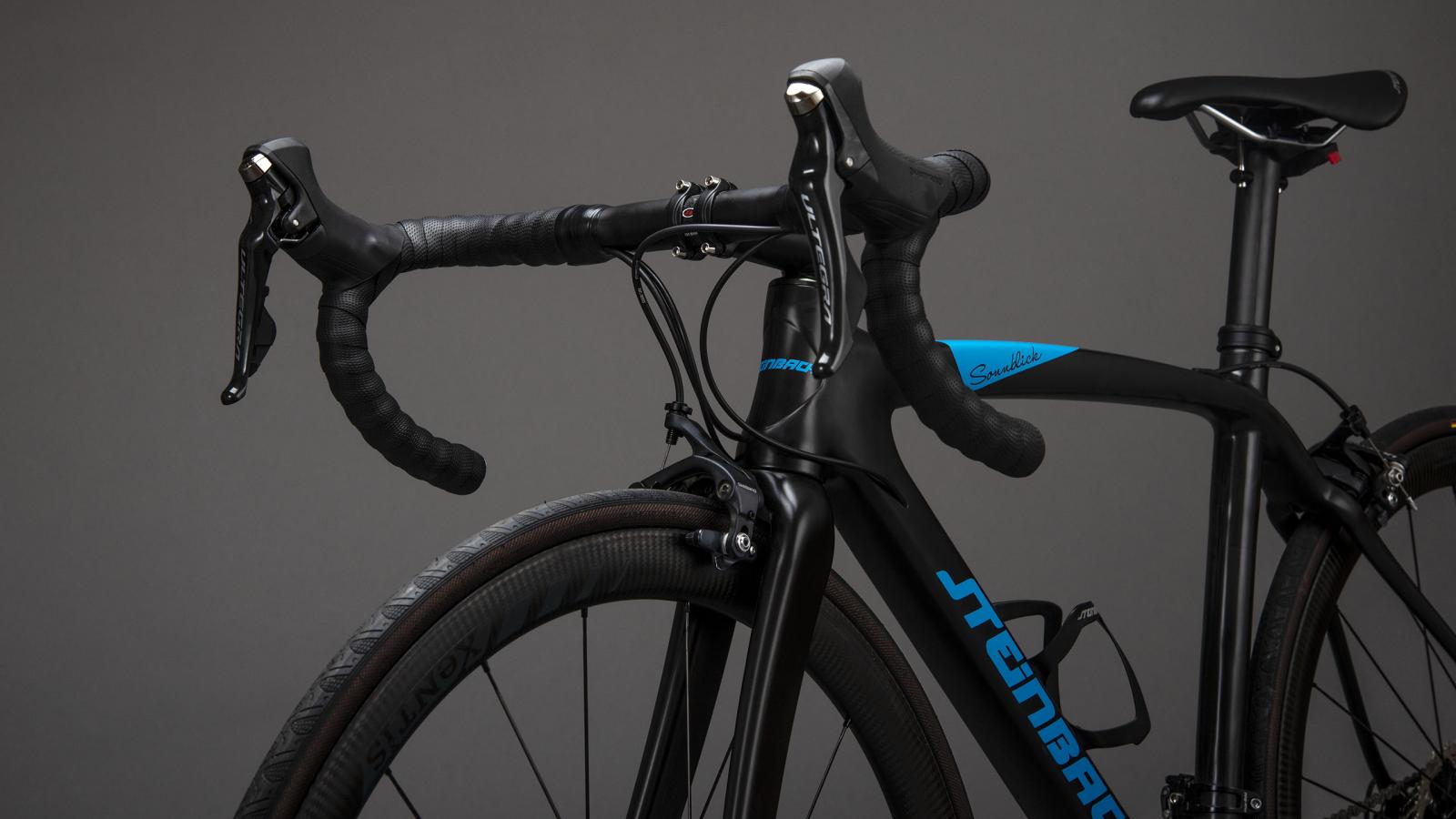

brake
Shimano Ultegra
Shimano Dura-Ace
wheel fork
Steinbach Carbon
Steinbach Carbon

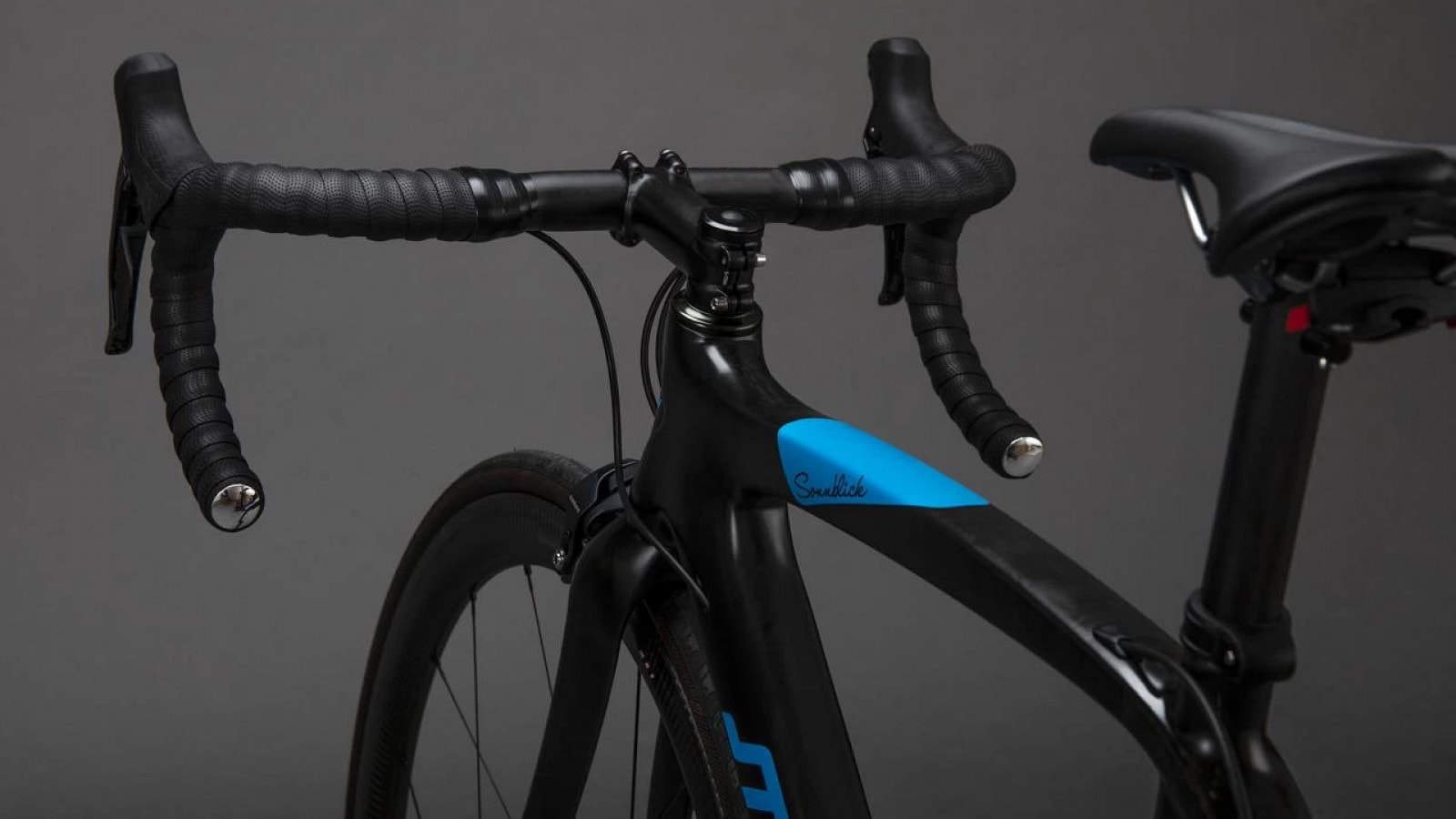

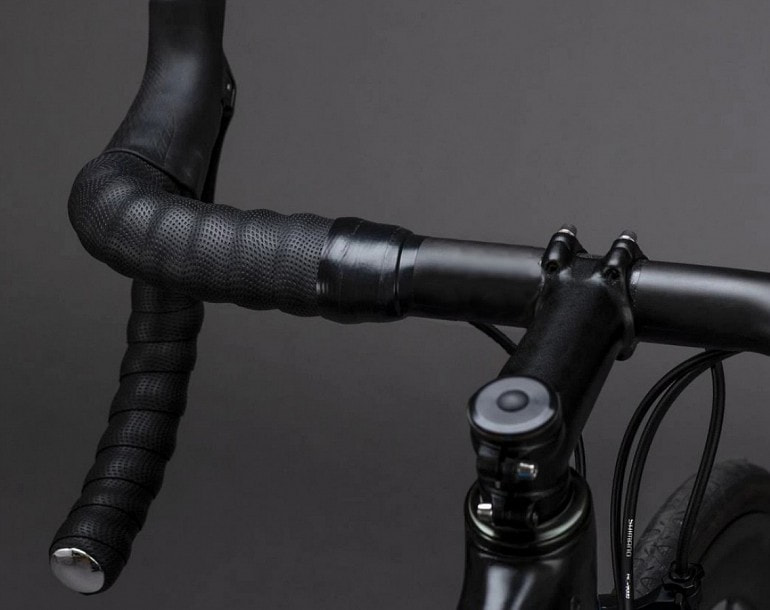

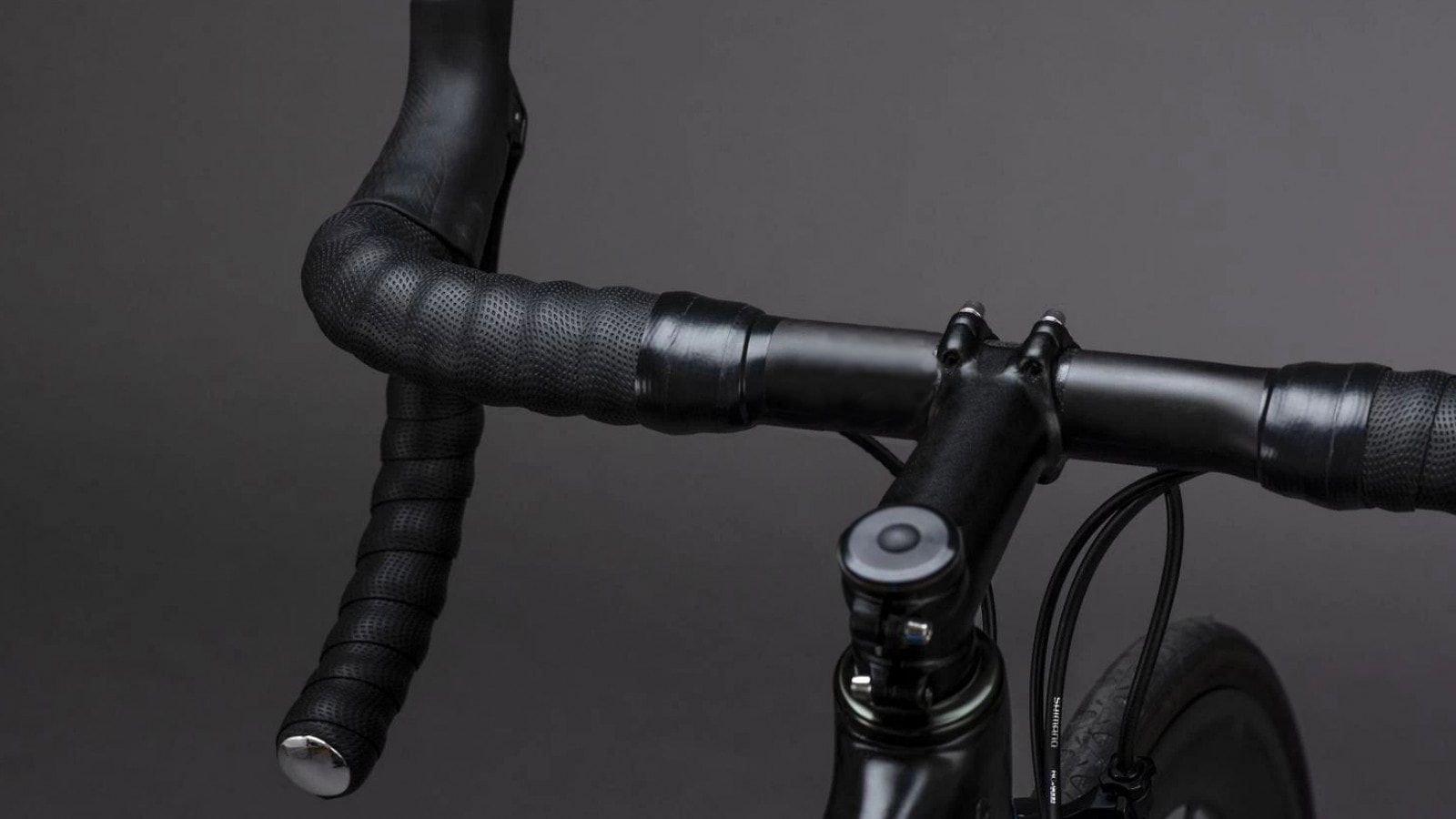

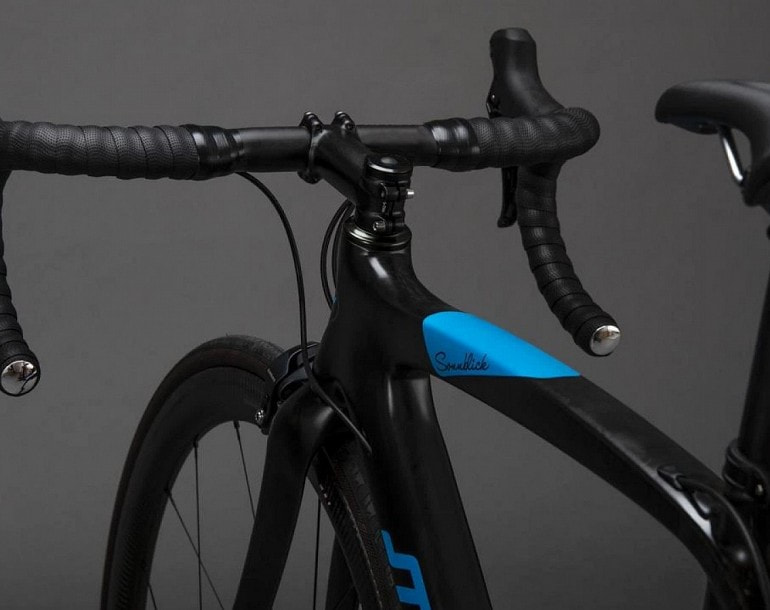

handlebars
Steinbach Carbon
Steinbach Carbon
Sattelstütze
Steinbach Carbon
Steinbach Carbon
Rims
DT Swiss 411 Alu
XeNTIS Squad Carbon
tires
Continental 700x25C
Continental 700x25 / 700x23
weight
from 7.2 kg
from 6.5 kg
Price incl. VAT.
€ 4,390.00
€ 8,940.00


FEEL THE DIFFERENCE

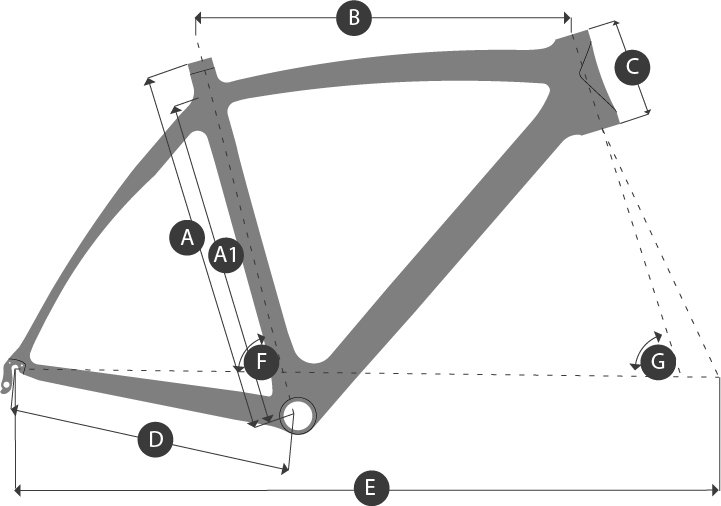

Geometry given in MM
Frame size cm
46
49
52
Seat tube
A
460
490
520
Seat tube 2
A1
415
430
460
top tube
B
500
520
535
Head tube
C
100
120
140
Chain stay
D
405
405
405
wheelbase
E
965
972
974
Seat tube angle
F
75°
74,5°
73,5°
Steering angle
G
73°
73°
73°

Technologies that impress



Customised
Customised

Each bike is created to meet individual size, ride and comfort requirements. All parts and components are selected to give you the unique ride experience of a Steinbach bike. Your personal Steinbach experience!

Lightweight frame
Lightweight frame

Full-carbon frame with oversized shaped tubes – perfectly designed for maximum rigidity and the highest ride comfort. Internal cables ensure a clean and aerodynamic design. The alu-magnesium Hardtail frame with triple butted tubes also impresses with a classic linear design. The geometry results from our years of analysis into how ergonomics helps to increase endurance.

Hand-spoked wheels
Hand-spoked wheels

By choosing the right tyres, you can achieve better adhesion to the road or maximum grip on rough terrain. Whether proven aluminium or high-end carbon rims – only the best for the rider. The extensively machined hubs, tuned spokes and smoothest bearings are the perfect connection to the ground.

Individual Design
Individual Design

The sky is the limit – choose from over 700 RAL colours and more than 80 decorative colours, in matt or gloss. Create your favourite bike.
