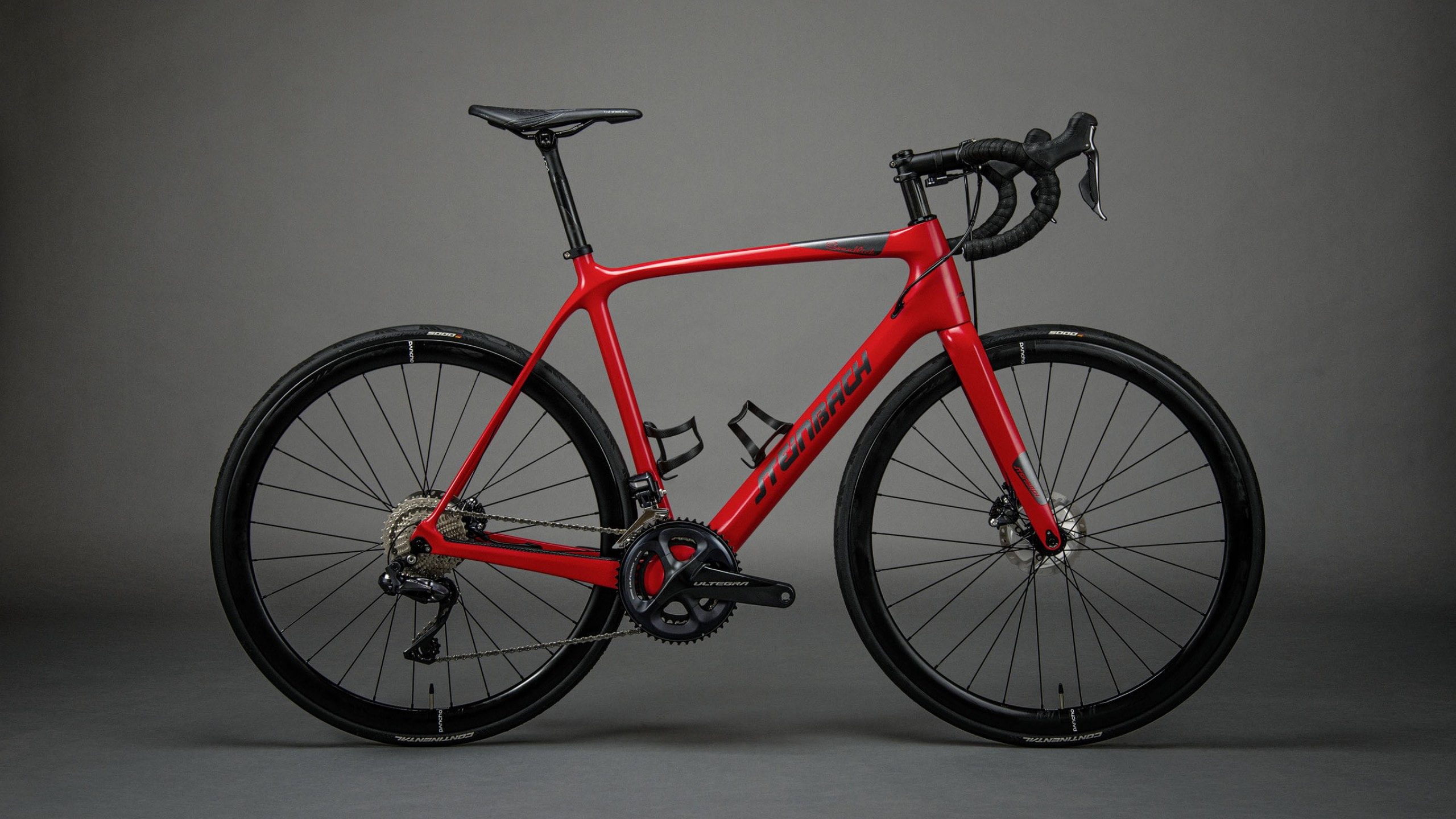

Built for you and for extremely long mountain tours? Our "Sonnblick" is the optimal high-end road racing bike for professionals and ambitious amateur athletes. The slim and curved rear triangle ensures maximum flex and riding comfort.

DESIGNED FÜR
Road
SCHALTUNG
Elektrisch
GEWICHT
ab 6,5 kg
Individual design

Choose the colours and components of your bike to create your unique design. Thanks to our flexibility, our know-how and our experience, we can realise every step with the greatest care. Your name in bright green on a blue frame? Anything is possible! We design your new favourite bike together!


Carbon frame

Full carbon frame with oversized shaped tubes - perfectly shaped for maximum stiffness and maximum riding comfort. Internally routed cables ensure clear design and aerodynamics. Constructing a frame with the highest possible carbon content not only saves weight, but also contributes to the fact that we always want top quality for our athletes. A slim, curved rear triangle ensures maximum flex. Together with the athletes who push the material to the absolute limit, we are constantly developing further.



Shimano Di2 System

Thanks to reliable shifting performance, Di2 technology gives the rider absolute control. The reduced frontal attack surface also reduced air resistance. The front derailleur shifts absolutely seamlessly between the chainrings and carries out its shifts with digital precision in all conditions.



Specifications
specification
High- End
Premium
size
55 cm, 58cm
55 cm, 58 cm
frame
Sonnblick III Carbon
Sonnblick II Carbon
chainset
Shimano Di 2 Ultegra 2x11
Shimano Di 2 Ultegra 2x11
Brake
Shimano Ultegra Disk
Shimano Ultegra Disk
Wheel Fork
Steinbach Carbon
Steinbach Carbon
handelbars
Steinbach Carbon
Steinbach Carbon
stem
Steinbach Alu CNC
Steinbach Alu CNC
seatpost
Steinbach Carbon
Steinbach Carbon
rims
Aluminum, hand-spoked
Carbon, hand-spoked
Reifen
Continental 700x25C
Continental 700x25C
saddle
Steinbach Sport
Steinbach Sport
Weight
from 7.5 kg
from 6.8 kg
Price
on request
on request


FEEL THE DIFFERENCE



Geometry given in MM
line 1
55
58
seat tube
A
550
580
seat tube 2
A1
488
521
top tube
B
555
580
head tube
C
170
190
chain stay
D
410
410
wheelbase
E
991
1010
Seat tube angle
F
73°
73°
Steering angle
G
73°
73°
