Website in progress

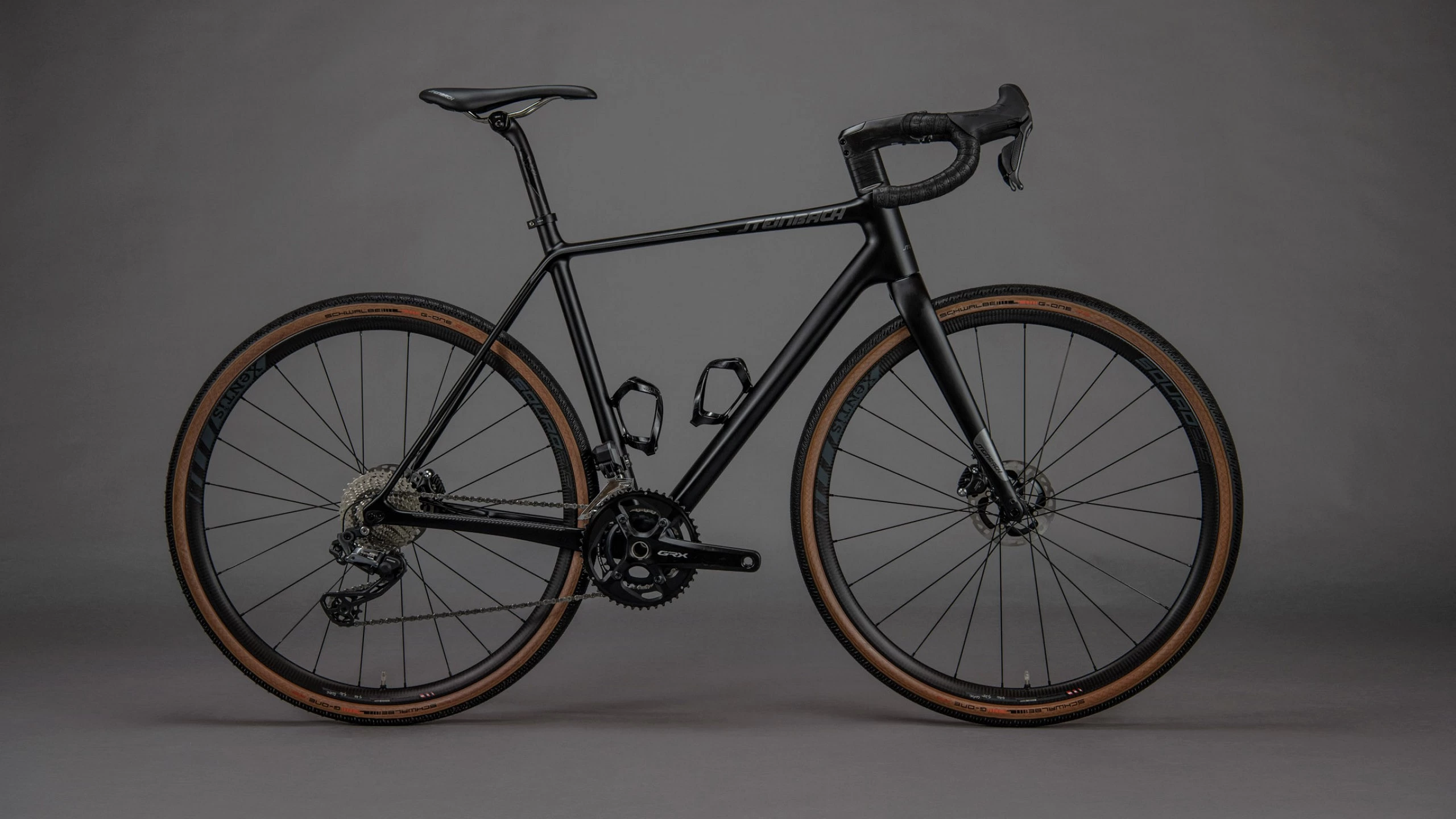

Designed for
Gravel, Cross, Road & Tour
wheel size
28"
Weight
from 8,2 kg
Individual design

Choose the colours and components of your bike to create your unique design. Thanks to our flexibility, our know-how and our experience, we can realise every step with the greatest care. Your name in bright green on a blue frame? Anything is possible! We design your new favourite bike together!



Carbon frame

Full-carbon frame with oversized shaped tubes – perfectly designed for maximum rigidity and the highest ride comfort. Internal cables ensure a clean and aerodynamic design. Slim, curved chainstays ensure maximum flex. In common with the athletes, who push the material to the absolute limit, we are constantly developing our products.



Cabel Intigration

All cables are hidden



Specifications
Wert
High- End
Premium
Size
53cm, 55cm, 57cm,
53cm, 55cm, 57cm,
Rahmen
Full carbon monocoque
Full carbon monocoque
chainset
Shimano GRX Di2 / 2x11
Shimano GRX Di2 / 2x11
Brake
Shimano GRX / 160mm
Shimano GRX / 160mm
Wheel Fork
Steinbach Carbon
Steinbach Carbon
stem
Carbon
Carbon
seat post
Pro Carbon
Pro Carbon
rims
PW Craze / DT Swiss, hand-spoked
Xentis Carbon Squad 2.5
tires
Schwalbe G-One
Schwalbe G-One
sattel
Steinbach Race
Steinbach Race Carbon
Weight
from 9,5 kg
from 7,9 kg
Price
on request
on request


- REQUEST / CONTACT -

Feel the difference, best customization and comfort according to your wishes.



Geometry given in MM
Size
XS
S
M
L
XL
seat tube
A
510
530
550
570
590
top tube
B
504,5
521,6
534,8
553,3
563,6
head tube
C
115
135
143
153
173
chainstay
D
425
425
425
425
425
wheelbase
E
990,5
993,3
1007
1023,5
1026
seat tube angle
F
75°
74°
74°
74°
73°
steering angle
G
71°
72°
72°
72°
72°
Technologies that impress



Customised
Customised

Each bike is created to meet individual size, ride and comfort requirements. All parts and components are selected to give you the unique ride experience of a Steinbach bike. Your personal Steinbach experience!

Lightweight frame
Lightweight frame

Full-carbon frame with oversized shaped tubes – perfectly designed for maximum rigidity and the highest ride comfort. Internal cables ensure a clean and aerodynamic design. The alu-magnesium Hardtail frame with triple butted tubes also impresses with a classic linear design. The geometry results from our years of analysis into how ergonomics helps to increase endurance.

Hand-spoked wheels
Hand-spoked wheels

By choosing the right tyres, you can achieve better adhesion to the road or maximum grip on rough terrain. Whether proven aluminium or high-end carbon rims – only the best for the rider. The extensively machined hubs, tuned spokes and smoothest bearings are the perfect connection to the ground.

Individual Design
Individual Design

The sky is the limit – choose from over 700 RAL colours and more than 80 decorative colours, in matt or gloss. Create your favourite bike.
