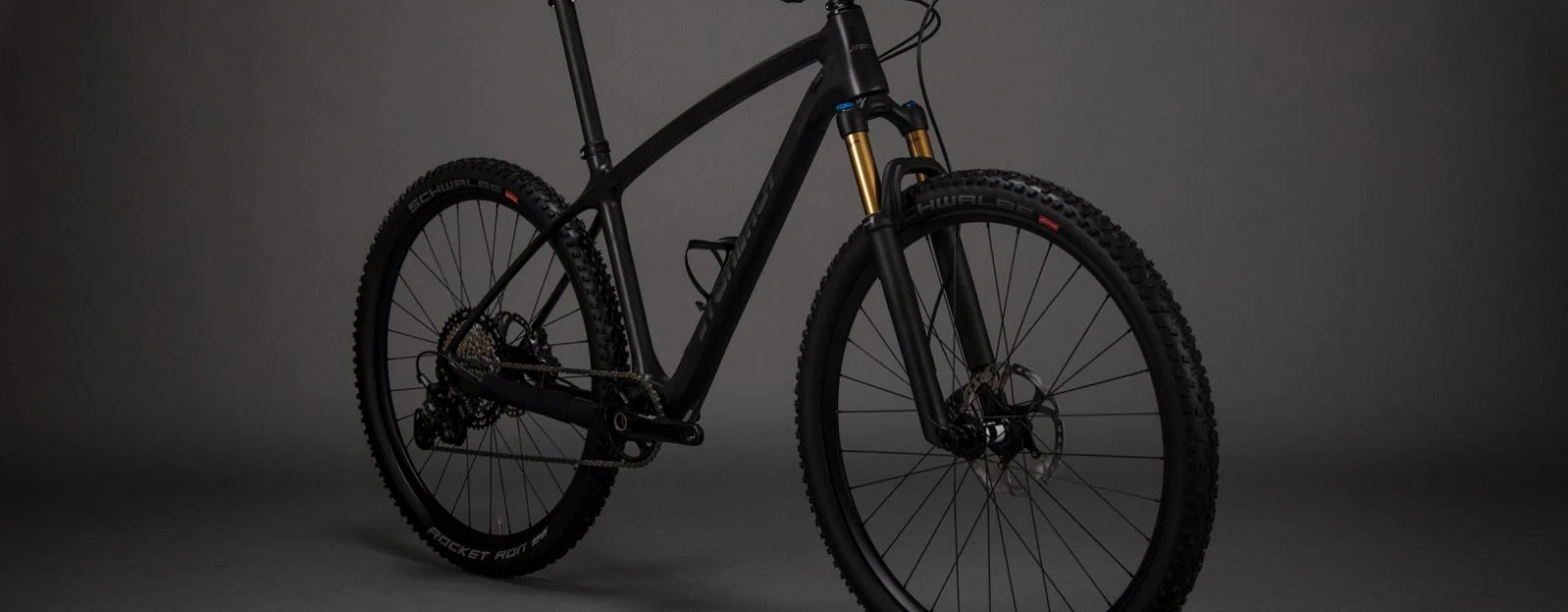

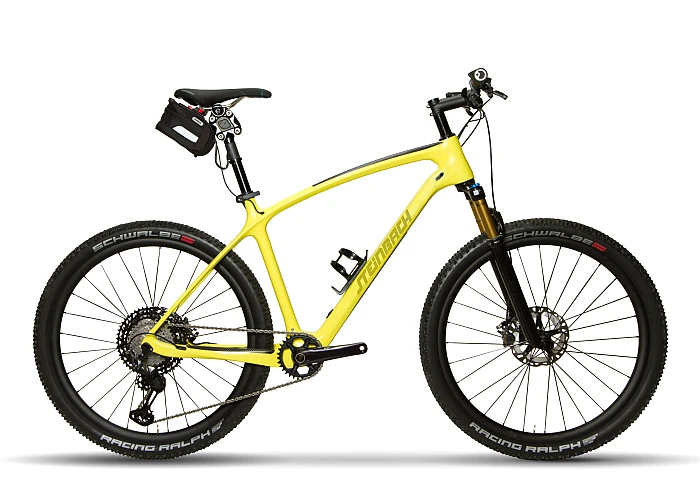

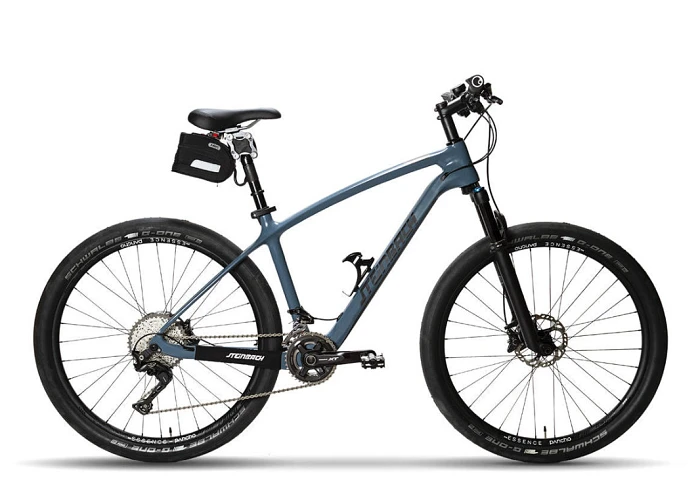

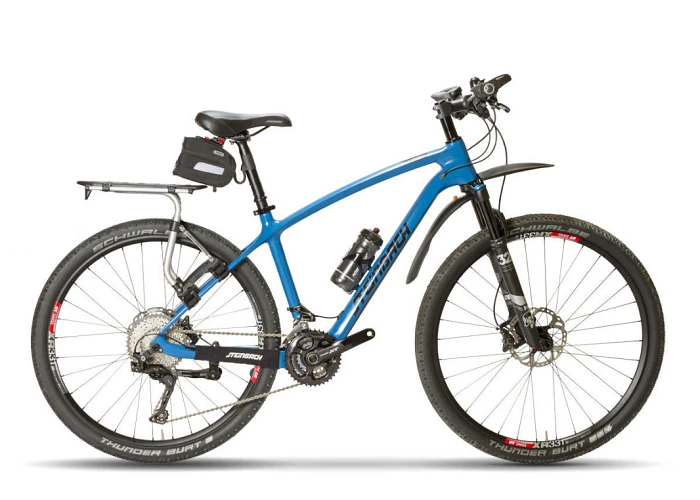

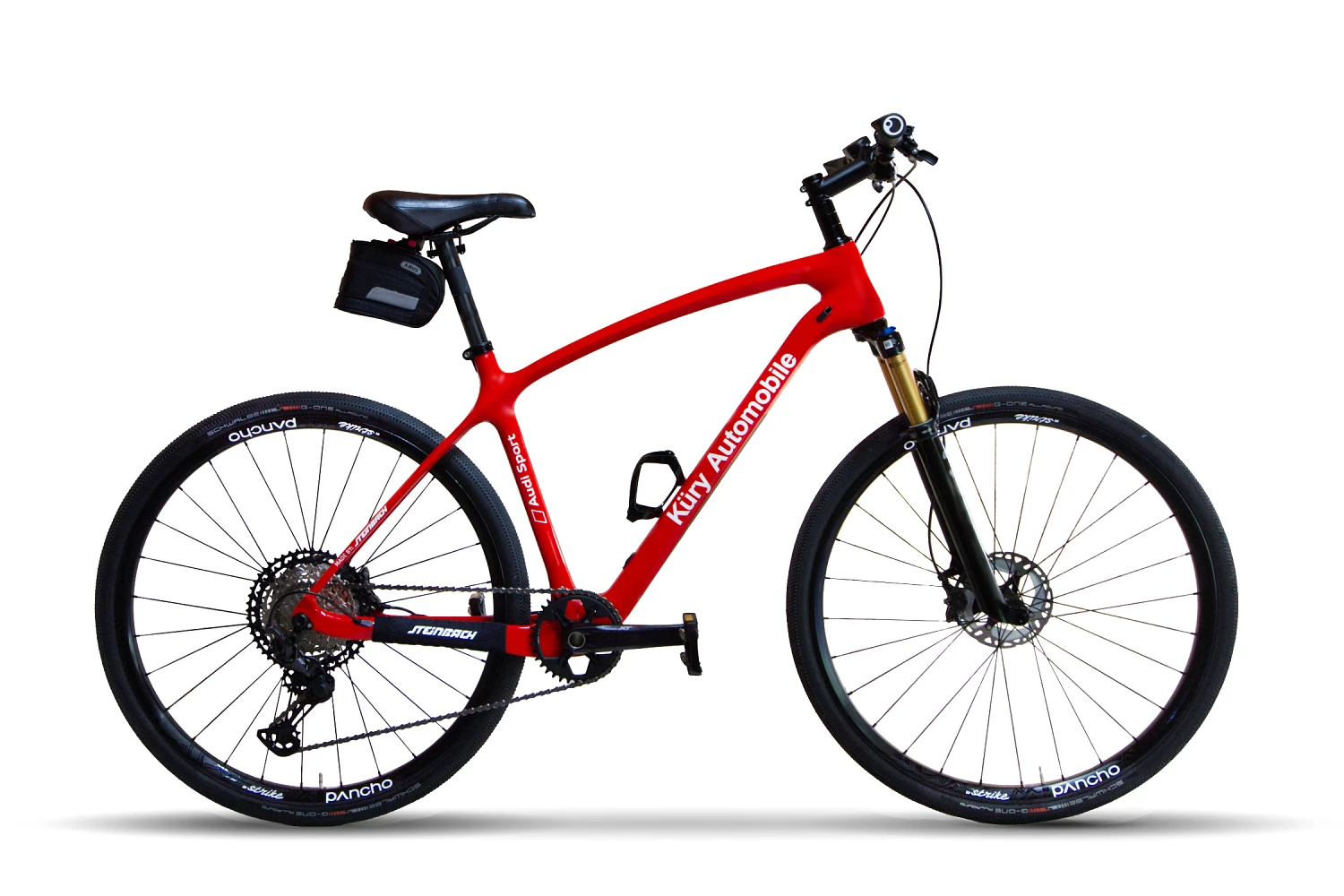

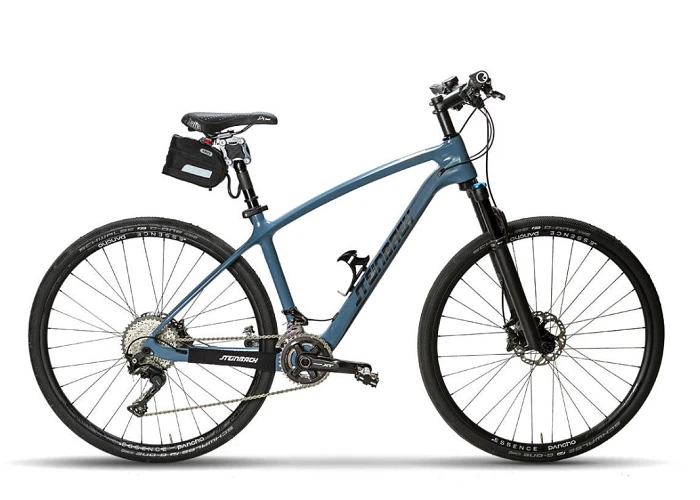

Grafen Hybrid e-Bike

The robust and lively Hardtail bike is the perfect companion for demanding mountain bike tours and impresses with top performance. Low weight, high rigidity and excellent comfort bring pure riding pleasure – up and downhill.

DESIGNED FOR
Mountain, Tour & Trail
WHEEL SIZE
27,5"
WEIGHT
from 10.5 kg

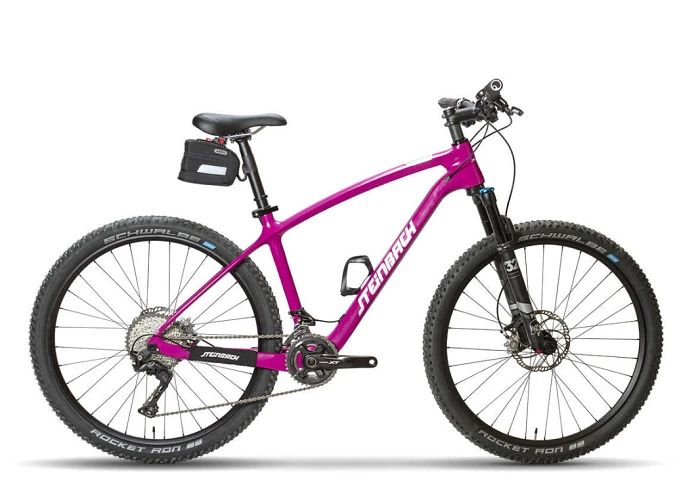

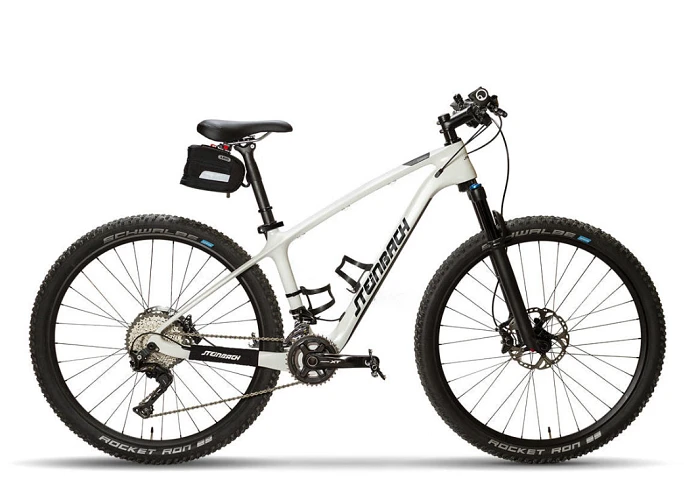

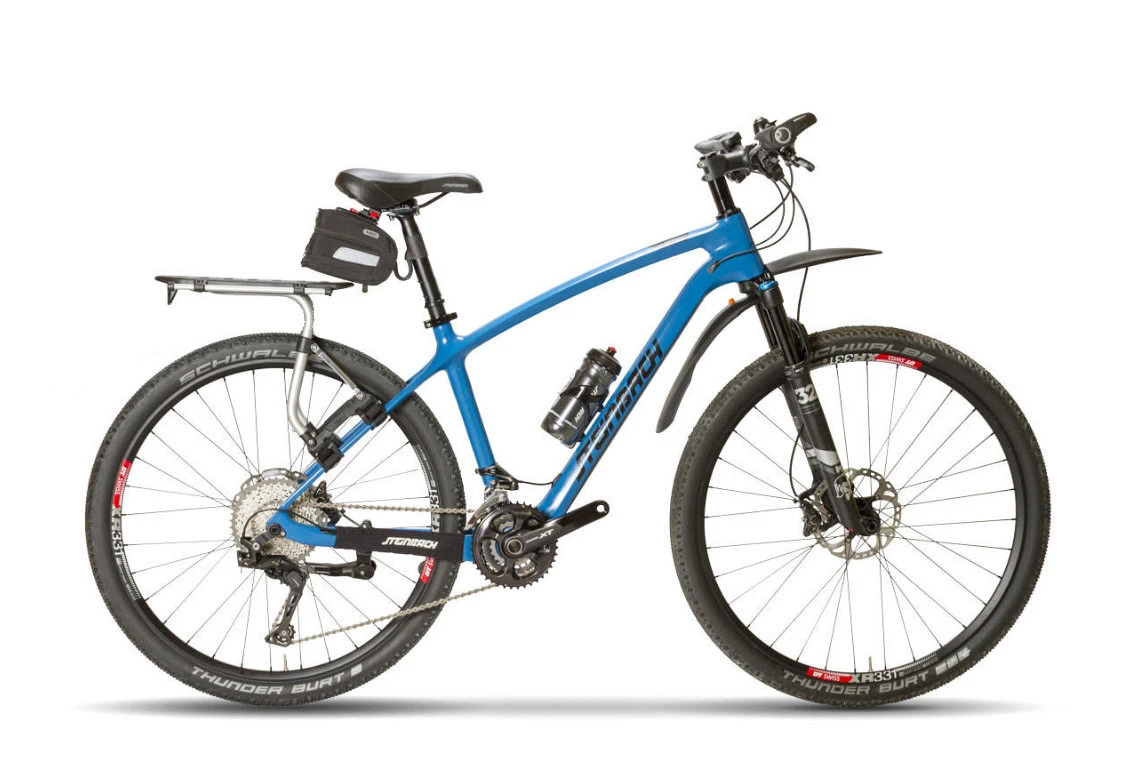

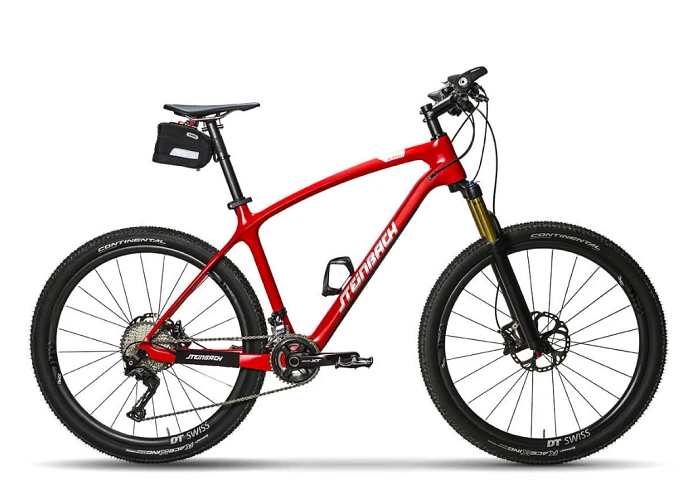

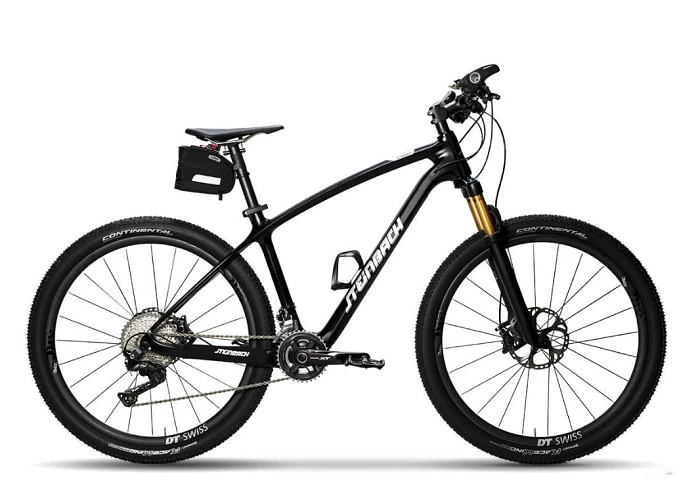

Individual Design

Choose the colours and components of your bike to create your unique design. Thanks to our flexibility, our know-how and our experience, we can realise every step with the greatest care. Your name in bright green on a blue frame? Anything is possible! We design your new favourite bike together!



Hybrid e-Assist drive

Our hybrid e-bike system combines perfectly sporty cycling with the option of electric motor support. Elegantly hidden in the seat tube, it transfers the effective power of a considerable 110 watts direct to the foot pedal at the push of a button. Only the saddlebag containing the battery would let an expert know that this is an assist bike. Steinbach bikes can also be fitted or retrofitted with the vivax electric drive. With the large 9.3 Ah battery, the drive unit comes to 2.3 kg.



Accessories

Whether for a cycling trip or your daily ride to work, we equip your bike with the perfect accessories. So you’re always safely underway. From pedals to sports drink bottles. Perfectly prepared for that first cycling experience.



e-Bike Carbon Frame

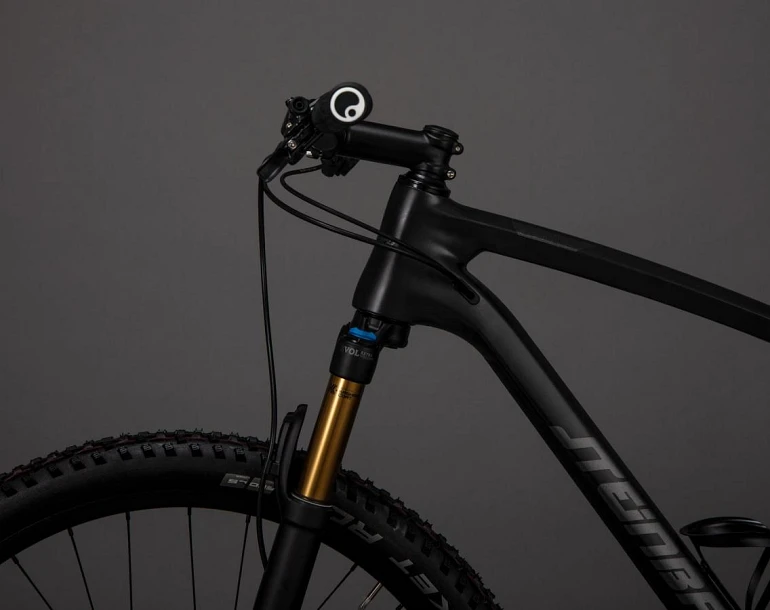

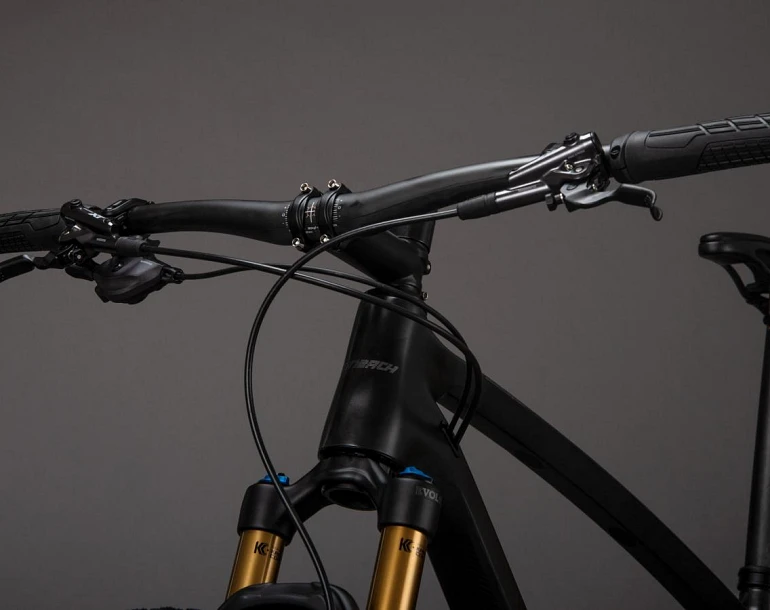

The fully carbon-certified top performance carbon frames impress with their simple look. They are uncomplicated frames that impress with their low weight, high rigidity and comfort. The high conical head tube and the tapered control bearing ensure optimal torsional rigidity. The frames also shine with the hidden cable guides.



Specifications
Specifications
High End
Premium
Frame set
frame
Grafen Carbon
Grafen Carbon
Grafen Carbon
size
39cm, 43cm, 48cm
39cm, 43cm, 48cm
39cm, 43cm, 48cm
Electric drive
Mikromotor 9,3Ah akku
Mikromotor 9,3Ah akku
Mikromotor 9,3Ah akku

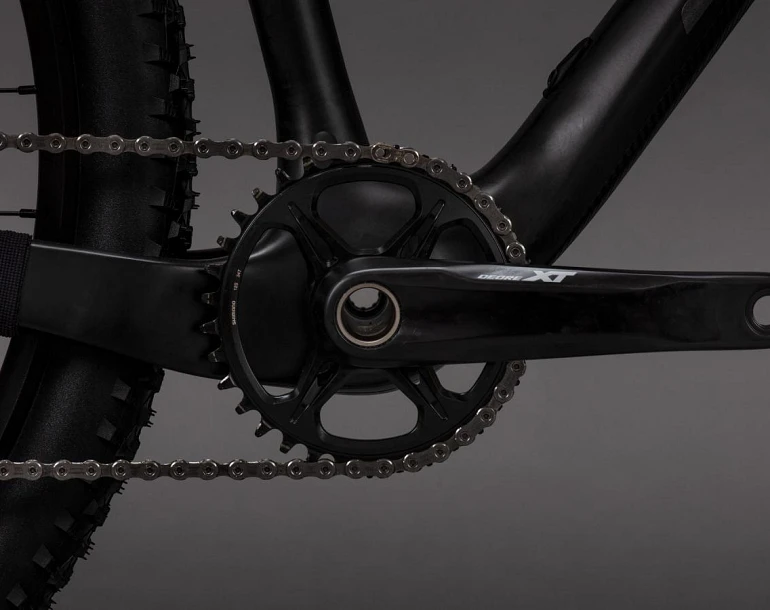

Chainset
Shimano XT 2x12
Shimano XT 1x12
KURBEL: Shimano XT inkl.
brake
Shimano XT
Shimano XTR
-
fork
Fox 32 A Float SC
Fox 32 K Float SC FS
-

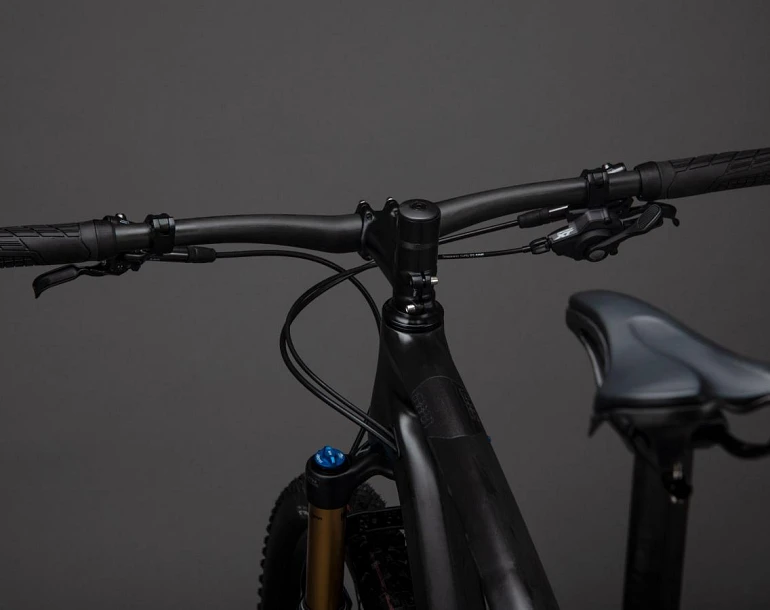

handlebars
Steinbach Carbon
Steinbach Carbon
-
Stem
Steinbach Alu
-
-
Seat post
Steinbach Alu
Steinbach Carbon
Steinbach Alu
wheels
DT Swiss 331 hand-spoked
PW Strike Carbon hand-spoked
-
tires
Schwalbe 27,5", 27,5"/29"
Schwalbe 27,5", 27,5"/29"
-
saddle
Steinbach sport
Steinbach Carbon
-
Weight
10,5 kg
10,5 kg
3,5 kg
Price incl. VAT.
from € 6,250.00
from € 8,920.00
from € 4,500.00

Geometry
geometry
15
17
19
Frame size cm
39
43
48
Seat tube
A
381
432
483
top tube
B
550
591
619
Head tube
C
100
120
130
Chain stay
D
445
430
430
wheelbase
E
1055
1071
1113
seat tube angle
F
73
73
73
steering angle
G
69,5
70
70
Technologies that impress



Tailor-made
Customised

Each bike is created to meet individual size, ride and comfort requirements. All parts and components are selected to give you the unique ride experience of a Steinbach bike. Your personal Steinbach experience!

Lightweight frame
Lightweight frame

Full-carbon frame with oversized shaped tubes – perfectly designed for maximum rigidity and the highest ride comfort. Internal cables ensure a clean and aerodynamic design. The alu-magnesium Hardtail frame with triple butted tubes also impresses with a classic linear design. The geometry results from our years of analysis into how ergonomics helps to increase endurance.

Hand-spoked wheels
Hand-spoked wheels

By choosing the right tyres, you can achieve better adhesion to the road or maximum grip on rough terrain. Whether proven aluminium or high-end carbon rims – only the best for the rider. The extensively machined hubs, tuned spokes and smoothest bearings are the perfect connection to the ground.

Drive
Drive

Our hybrid e-bike system and Shimano Steps E-8000 are the slimmest, lightest and most powerful electric aids on the market and push boundaries. The systems offer first-class torques, extremely quiet operation, immediate power response and fast charging.

Individual Design
Individual Design

The sky is the limit – choose from over 700 RAL colours and more than 80 decorative colours, in matt or gloss. Create your favourite bike.
