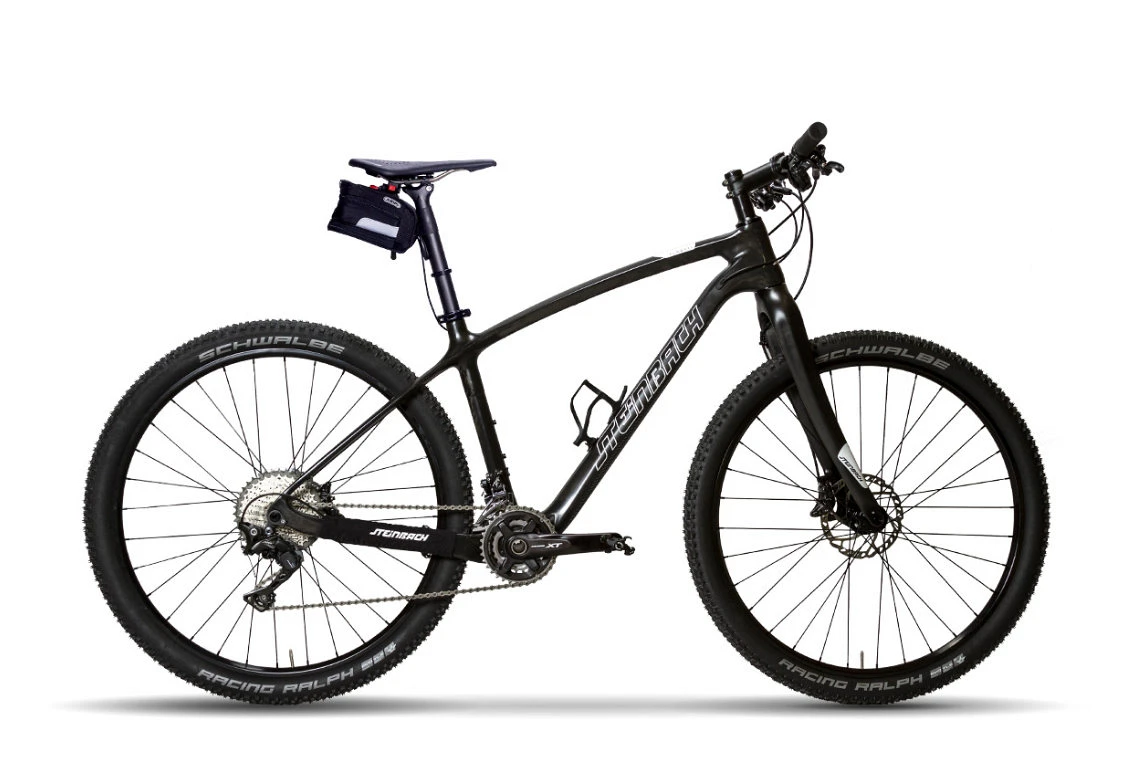

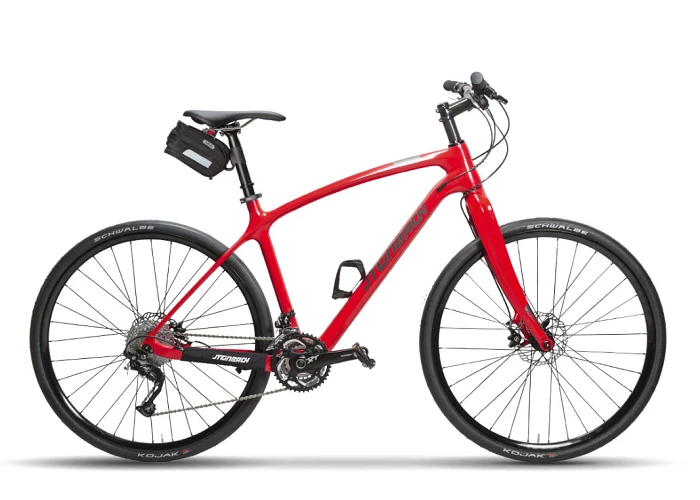

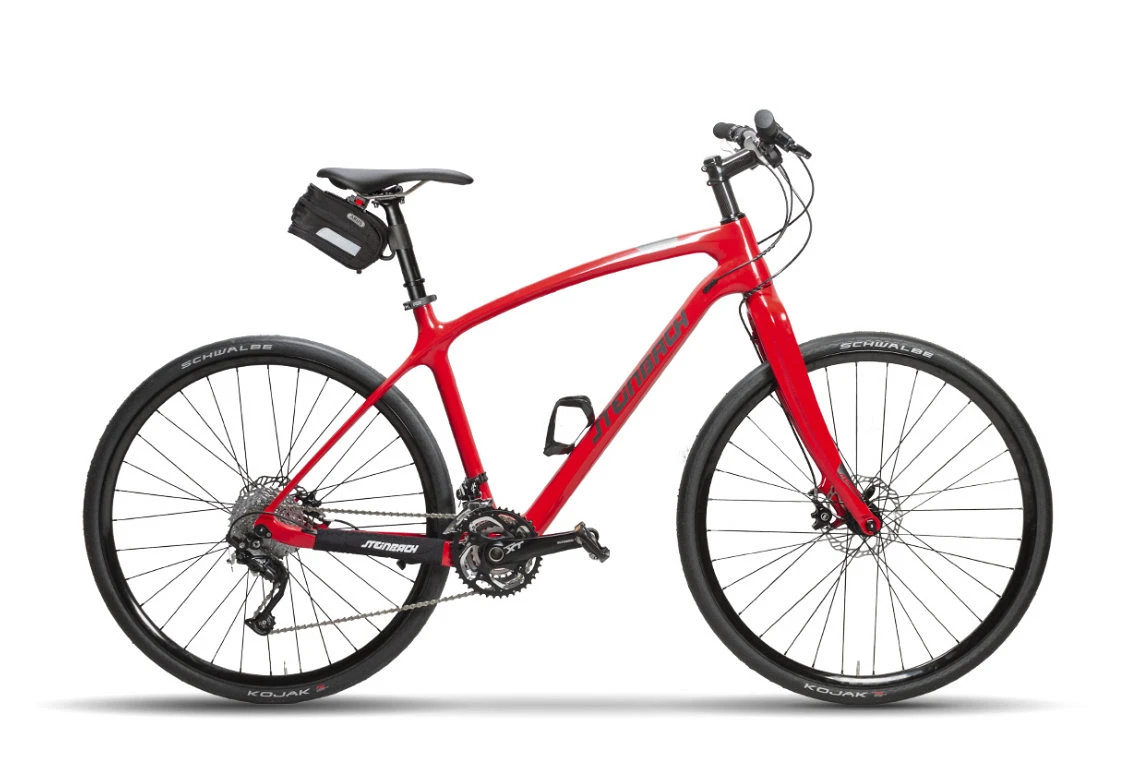

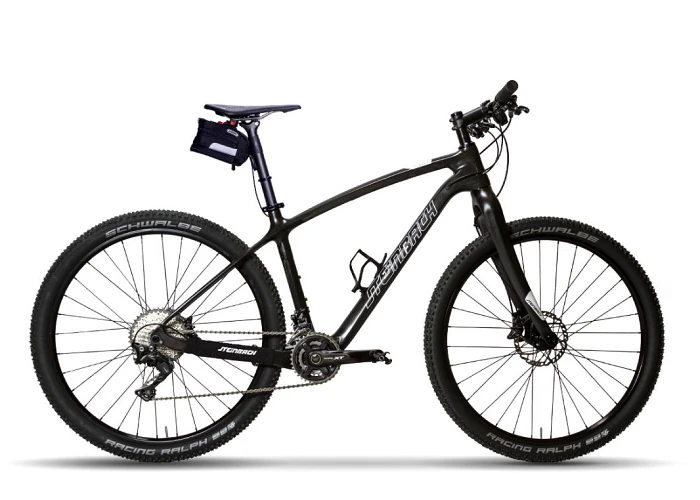

The hand-spoked wheel combination is safer even on rough terrain, delivering a smoother ride with improved control and guide quality for maximum cycling pleasure.

DESIGNED FOR
Mountain & Tour
RIMS SIZE
27.5“/29“
WEIGHT
from 10.5 kg
Individual design

Choose the colours and components of your bike to create your unique design. Thanks to our flexibility, our know-how and our experience, we can realise every step with the greatest care. Your name in bright green on a blue frame? Anything is possible! We design your new favourite bike together!

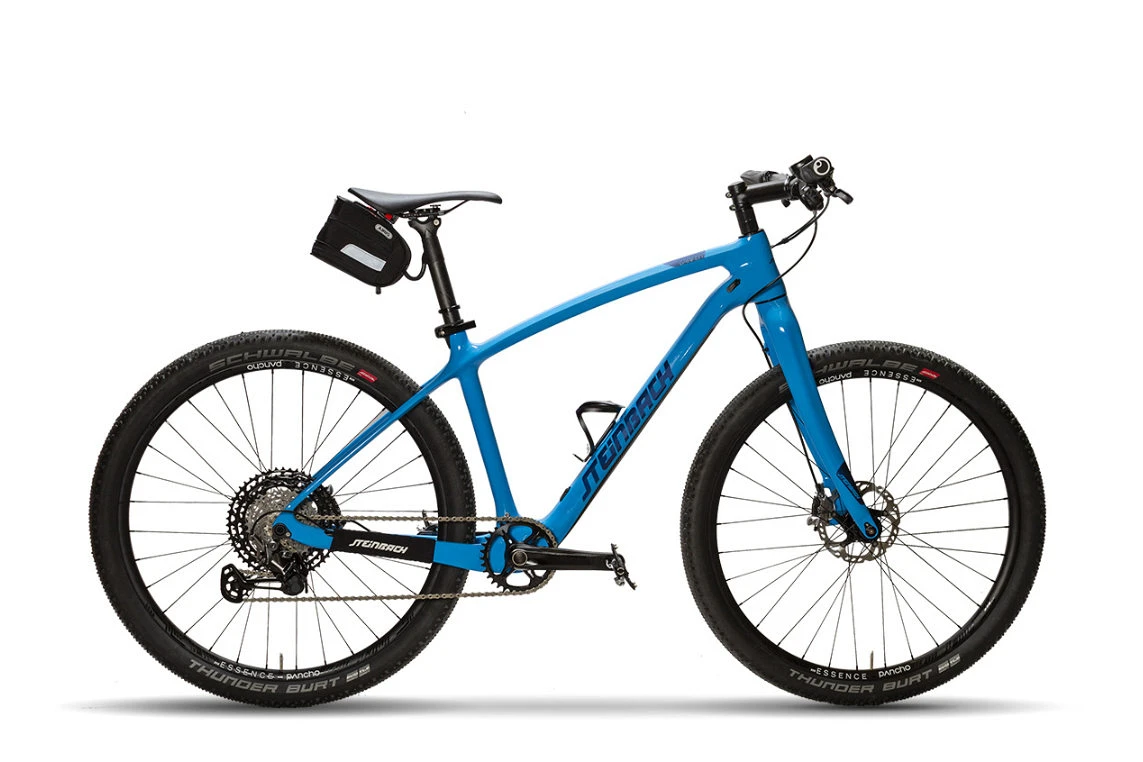

Hybrid e-Assist drive

Our hybrid e-bike system perfectly combines sporty cycling with the option of electric motor support. Elegantly hidden in the saddle tube, it transmits the effective, considerable power of 110 watts directly to the pedal crank at the push of a button. Only the saddlebag with the battery tells the connoisseur that it is an assist bike.  With the large 9.3 Ah battery, the drive unit weighs 2.3 kg.



Accessories

Whether for a cycling trip or your daily ride to work, we equip your bike with the perfect accessories. So you’re always safely underway. From pedals to sports drink bottles. Perfectly prepared for that first cycling experience.

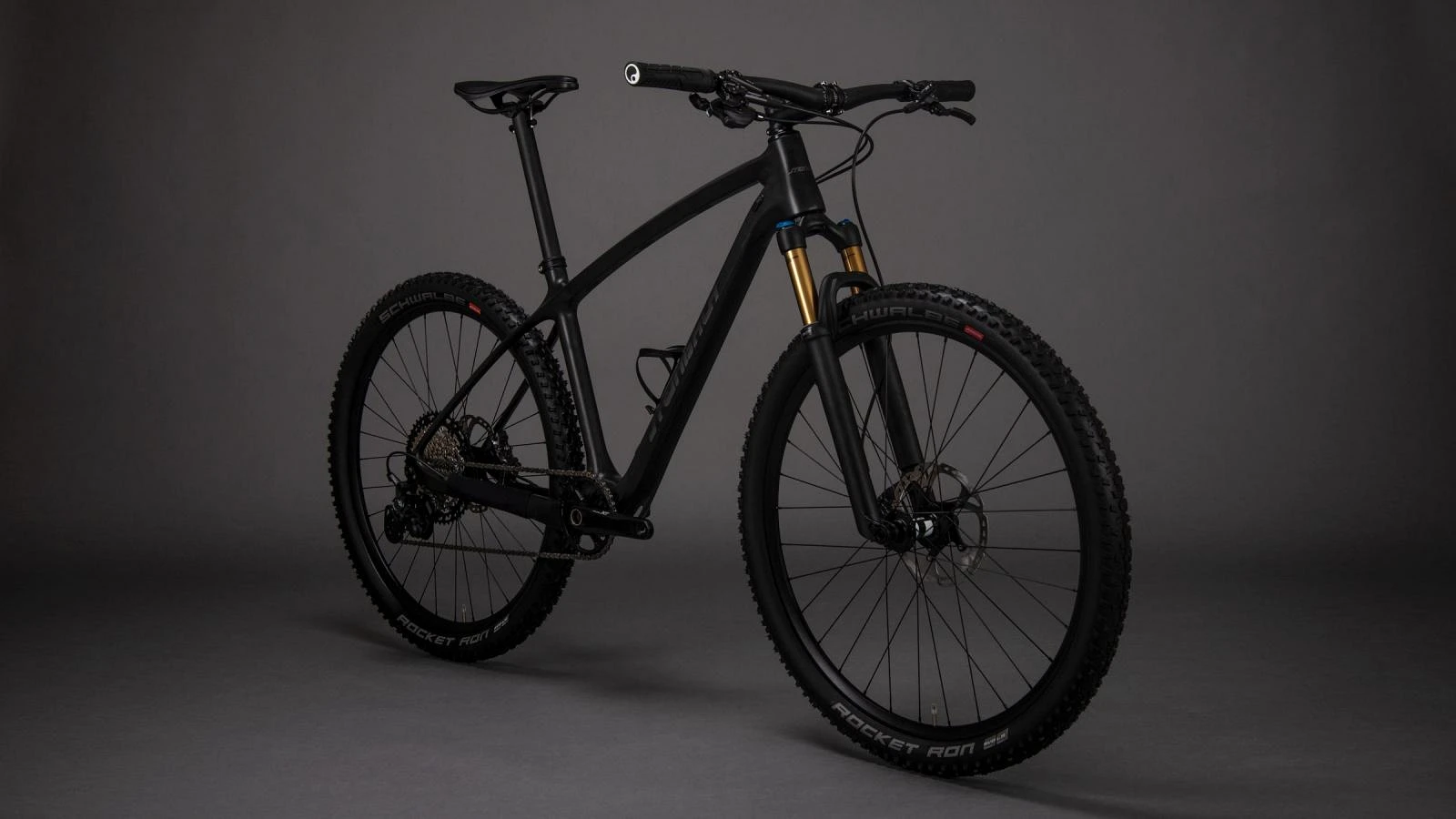

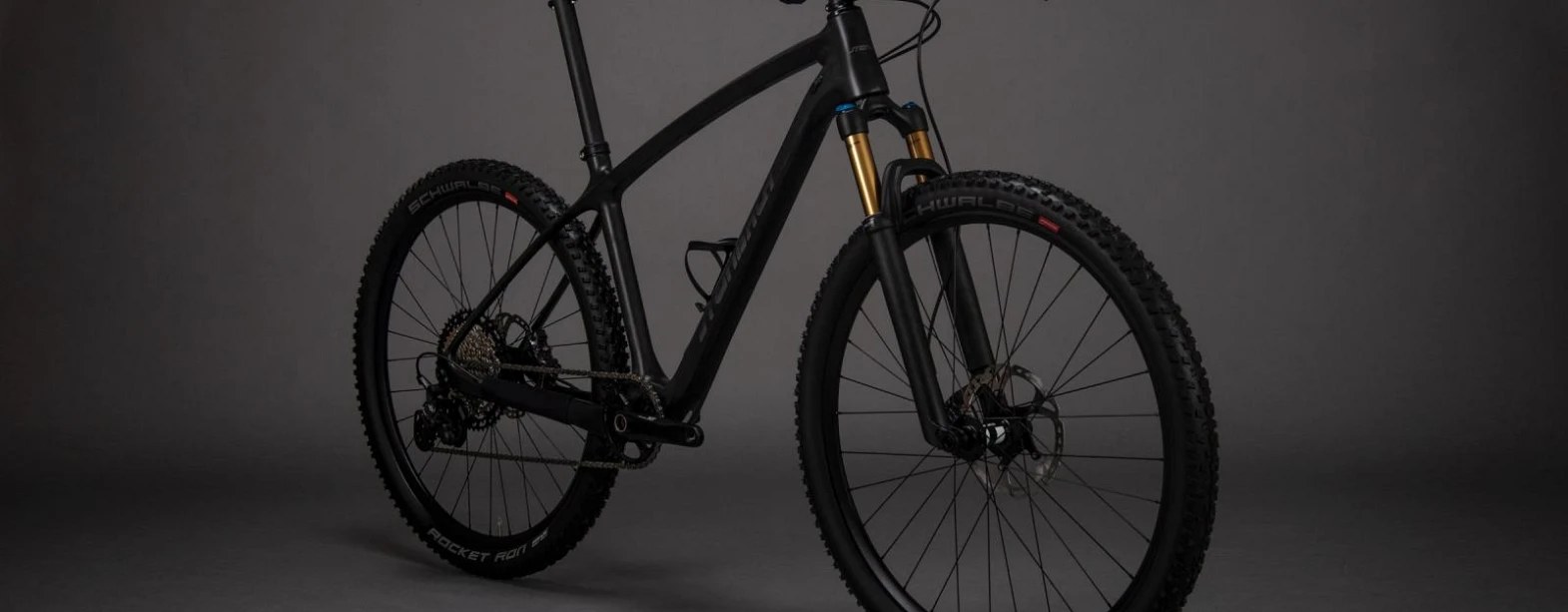

Carbon frame

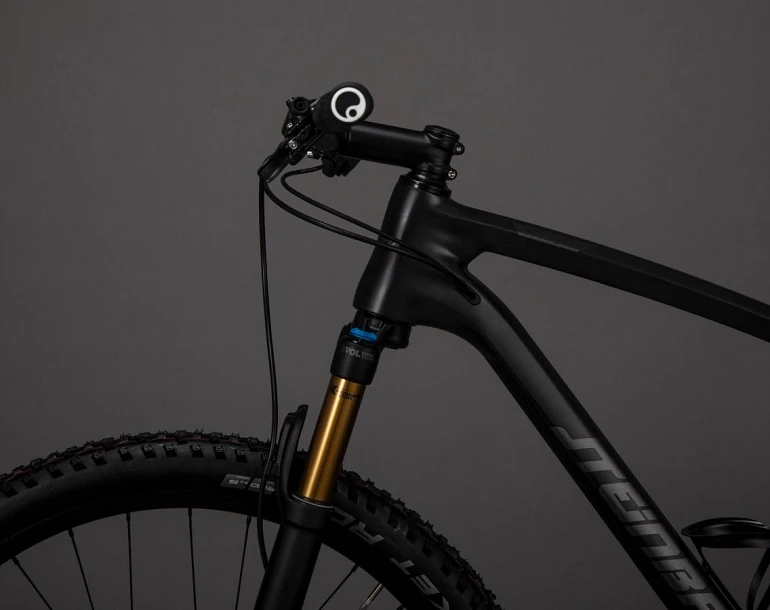

Full carbon frame with oversized shaped tubes - perfectly shaped for maximum stiffness and maximum riding comfort. Internally routed cables ensure clear design and aerodynamics. The fully carbon-certified top performance carbon frames impress with their simple look. They are uncomplicated frames that impress with their low weight, high rigidity and comfort. The geometry results from our years of analysis of how ergonomics help increase endurance.




Specifications
Specifications
High End
Premium
Frame set
size
39cm, 43cm, 48cm
39cm, 43cm, 48cm
39cm, 43cm, 48cm
frame
Grafen Carbon
Grafen Carbon
Grafen Carbon
Electric drive
Mikromotor inkl. 9.3Ah battery
E-Assist 6.5h bottle battery
Mikromotor inkl. 9.3Ah battery

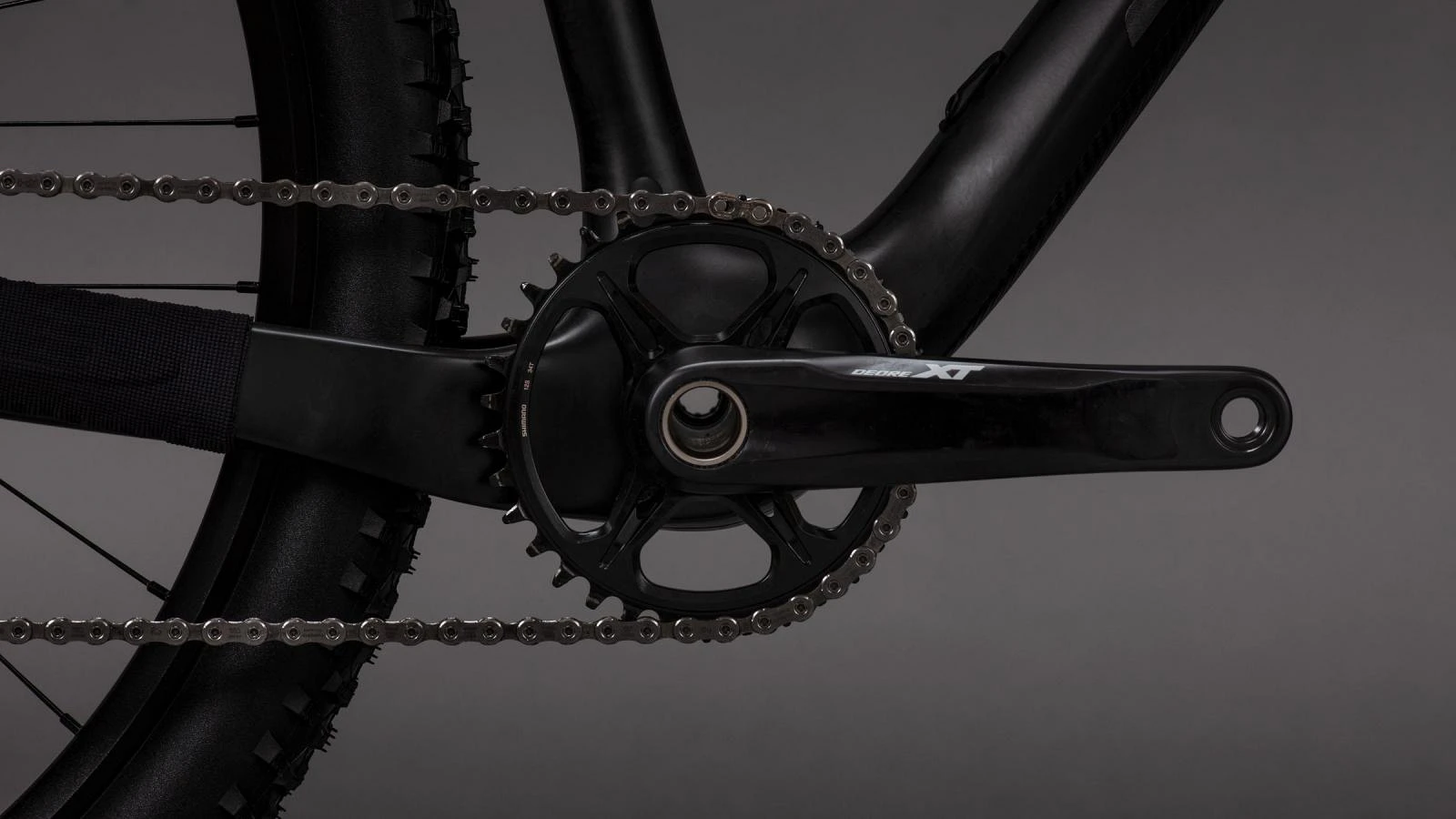

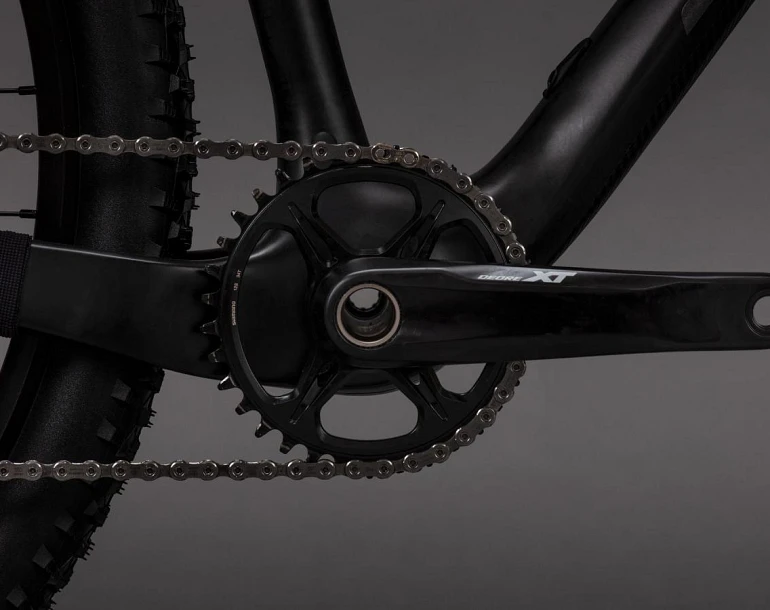

chainset
Shimano XT 2x12
Shimano XTR 1x12
KURBEL: Shimano XT ink. Innenlager
brake
Shimano XT
Shimano XTR
-

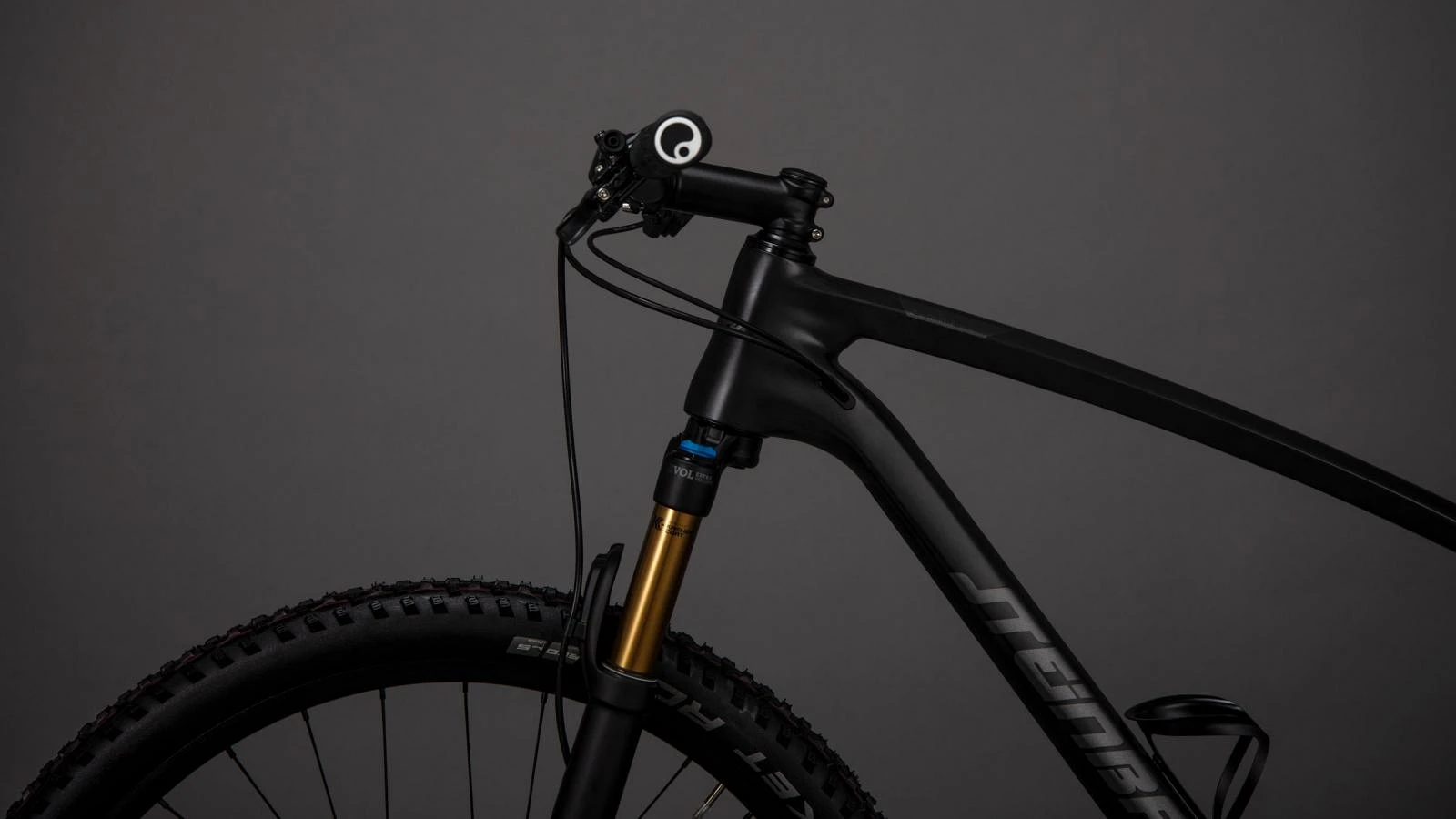

wheel fork
Steinbach Carbon Starrgabel
Steinbach Carbon Starrgabel
-

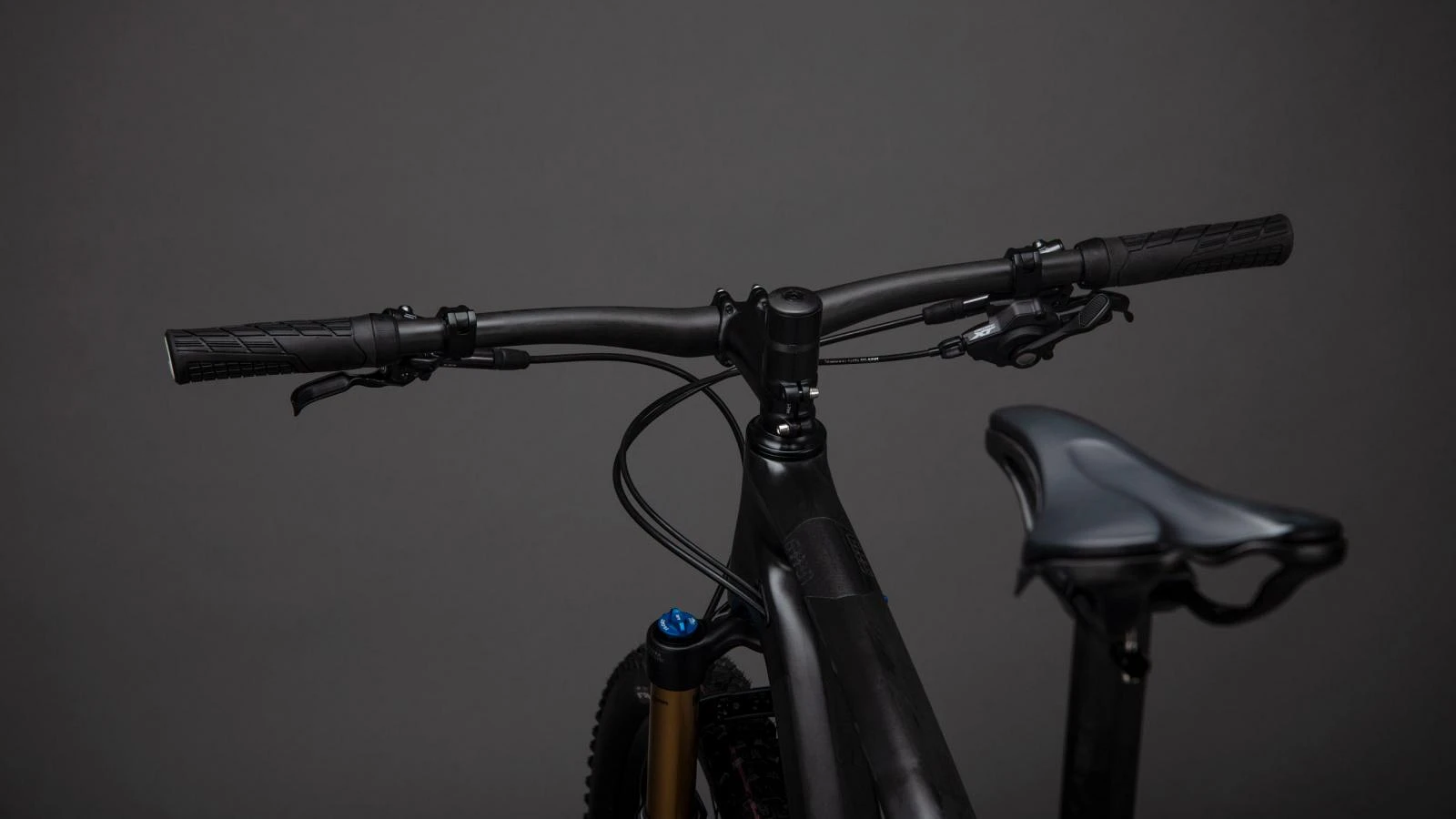

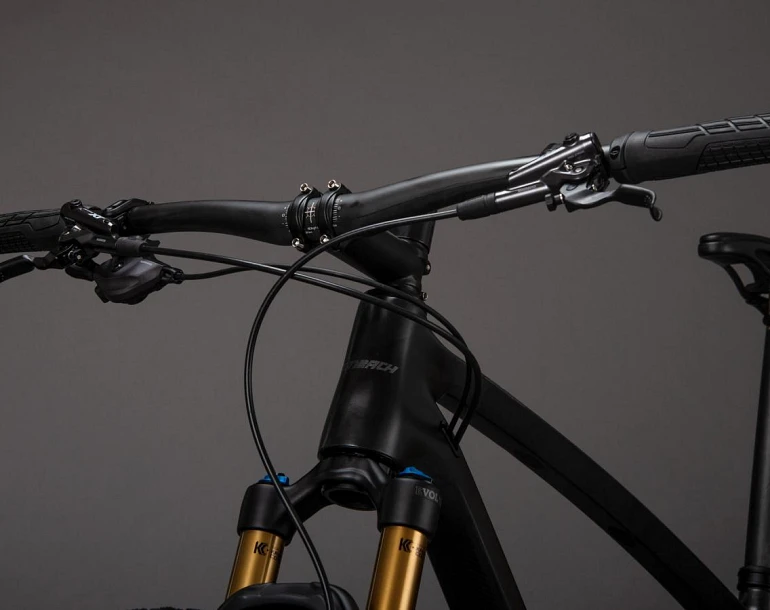

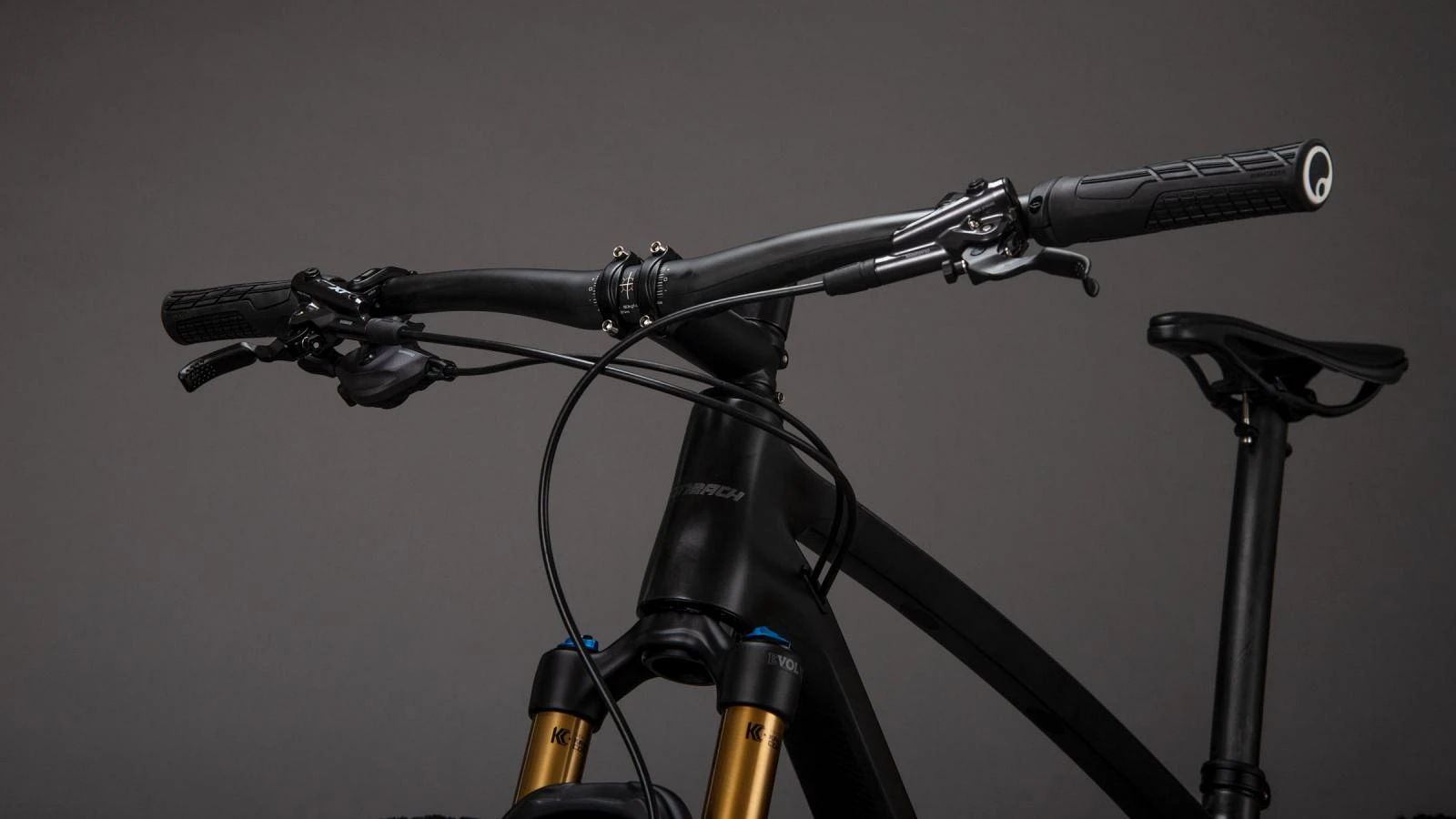

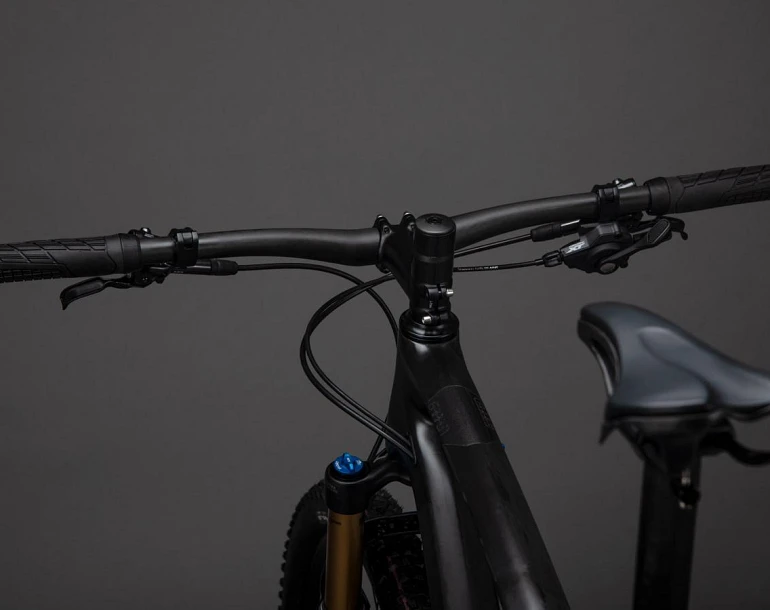

handlebars
Steinbach Carbon
Steinbach Carbon
-
Seat post
Steinbach Alu
Steinbach Carbon
Steinbach Alu
rims
DT Swiss 331 hand-spoked
Strike Carbon hand-spoked
-
tires
Schwalbe 27.5 x 1.5
Schwalbe 29 x 1.5
-
saddle
Steinbach Race
Steinbach Carbon
-
Weight
11 kg
11 kg
3.5 kg
Price incl. VAT.
from € 5,990.00
from € 8,860.00
from € 4,500.00


FEEL THE DIFFERENCE



Geometry given in MM
geometry
15''
17''
19''
Seat tube
A
381
432
483
top tube
B
550
591
619
Head tube
C
100
120
130
Chain stay
D
445
430
430
wheelbase
E
1055
1071
1113
seat tube angle
F
73
73
73
steering angle
G
69,5
70
70

Technologies that impress



Customised
Customised

Each bike is created to meet individual size, ride and comfort requirements. All parts and components are selected to give you the unique ride experience of a Steinbach bike. Your personal Steinbach experience!

Lightweight frame
Lightweight frame

Full-carbon frame with oversized shaped tubes – perfectly designed for maximum rigidity and the highest ride comfort. Internal cables ensure a clean and aerodynamic design. The alu-magnesium Hardtail frame with triple butted tubes also impresses with a classic linear design. The geometry results from our years of analysis into how ergonomics helps to increase endurance.

Hand-spoked wheels
Hand-spoked wheels

By choosing the right tyres, you can achieve better adhesion to the road or maximum grip on rough terrain. Whether proven aluminium or high-end carbon rims – only the best for the rider. The extensively machined hubs, tuned spokes and smoothest bearings are the perfect connection to the ground.

Drive
Drive

Our hybrid e-bike system and Shimano Steps EP-8 serie the slimmest, lightest and most powerful electric aids on the market and push boundaries. The systems offer first-class torques, extremely quiet operation, immediate power response and fast charging.

Individual Design
Individual Design

The sky is the limit – choose from over 700 RAL colours and more than 80 decorative colours, in matt or gloss. Create your favourite bike.
