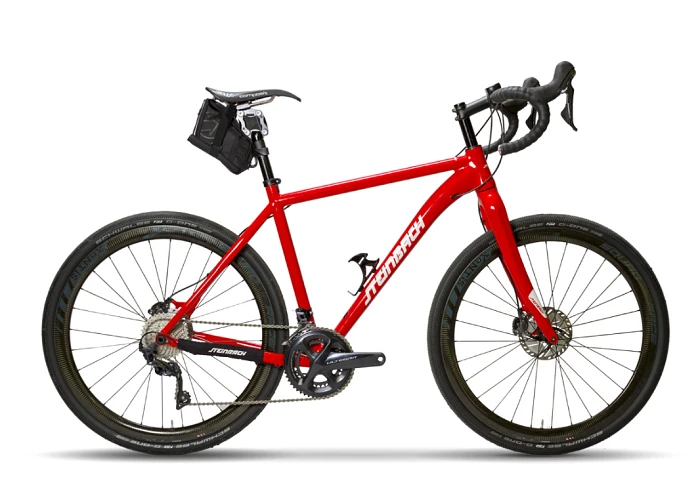

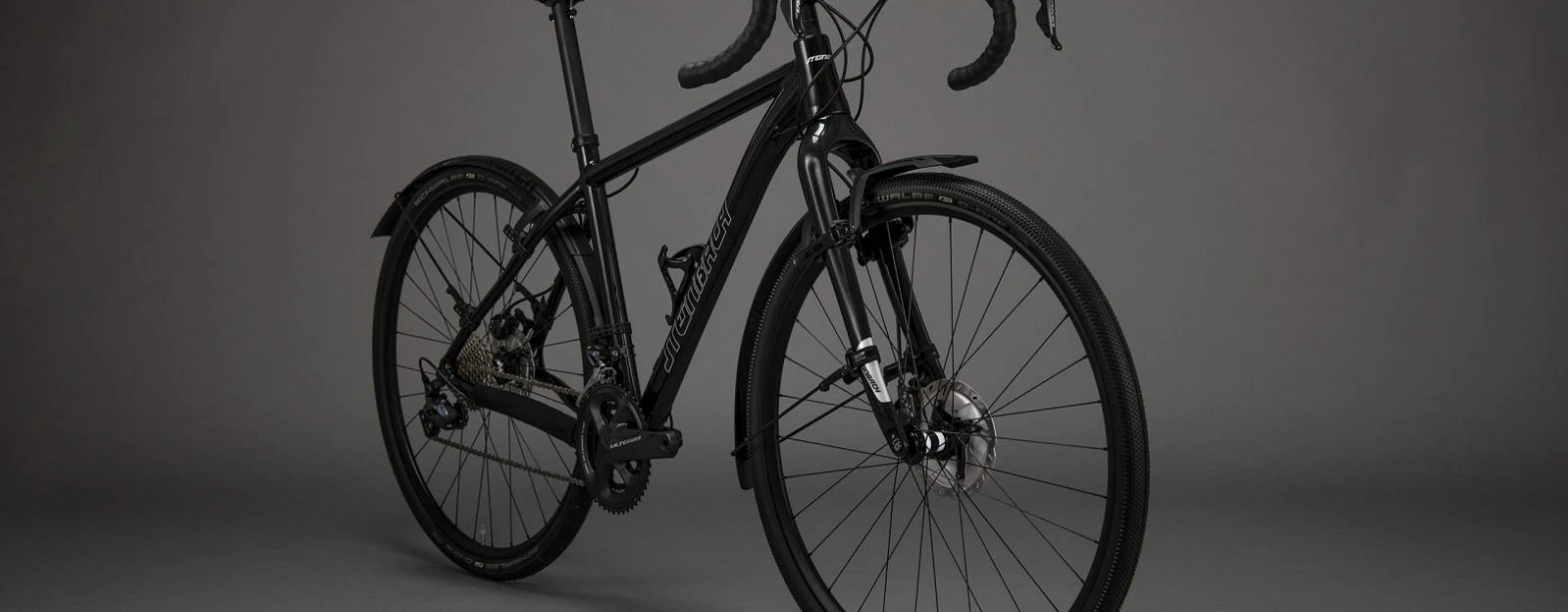

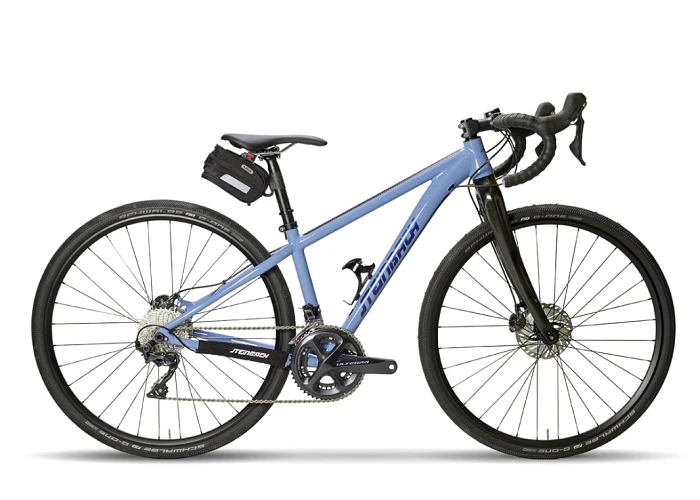

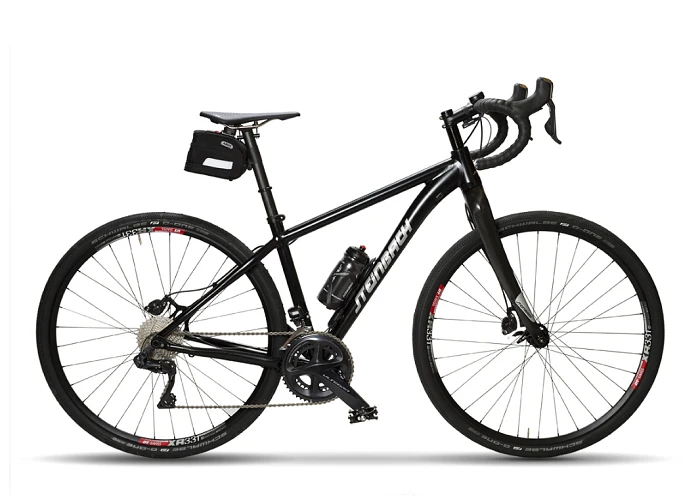

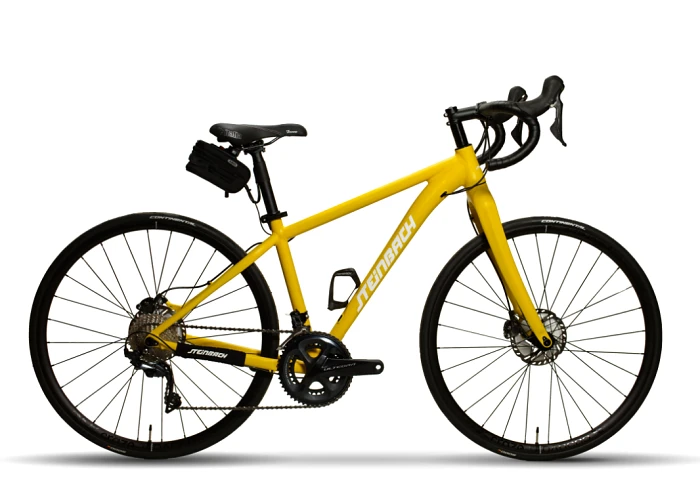

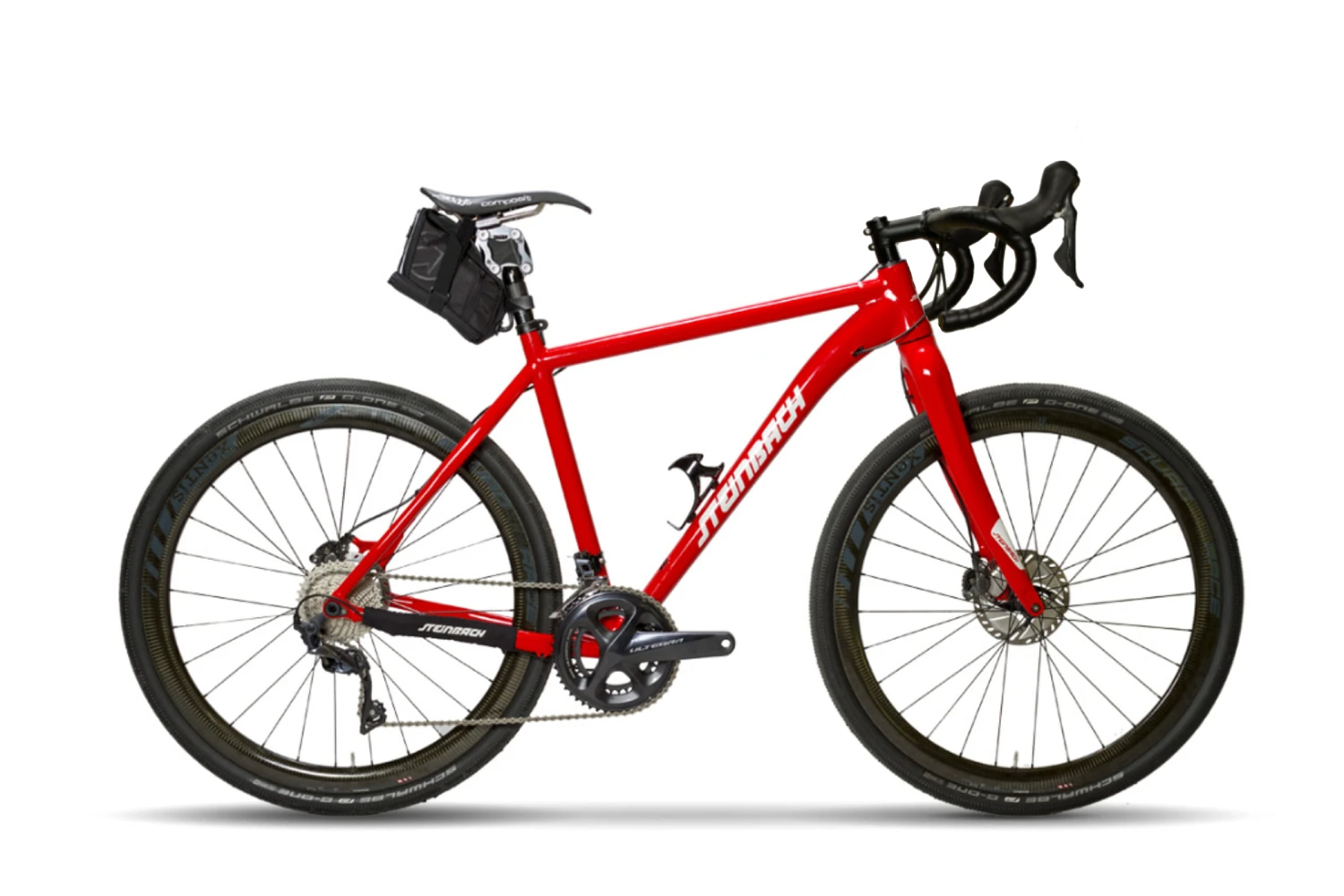

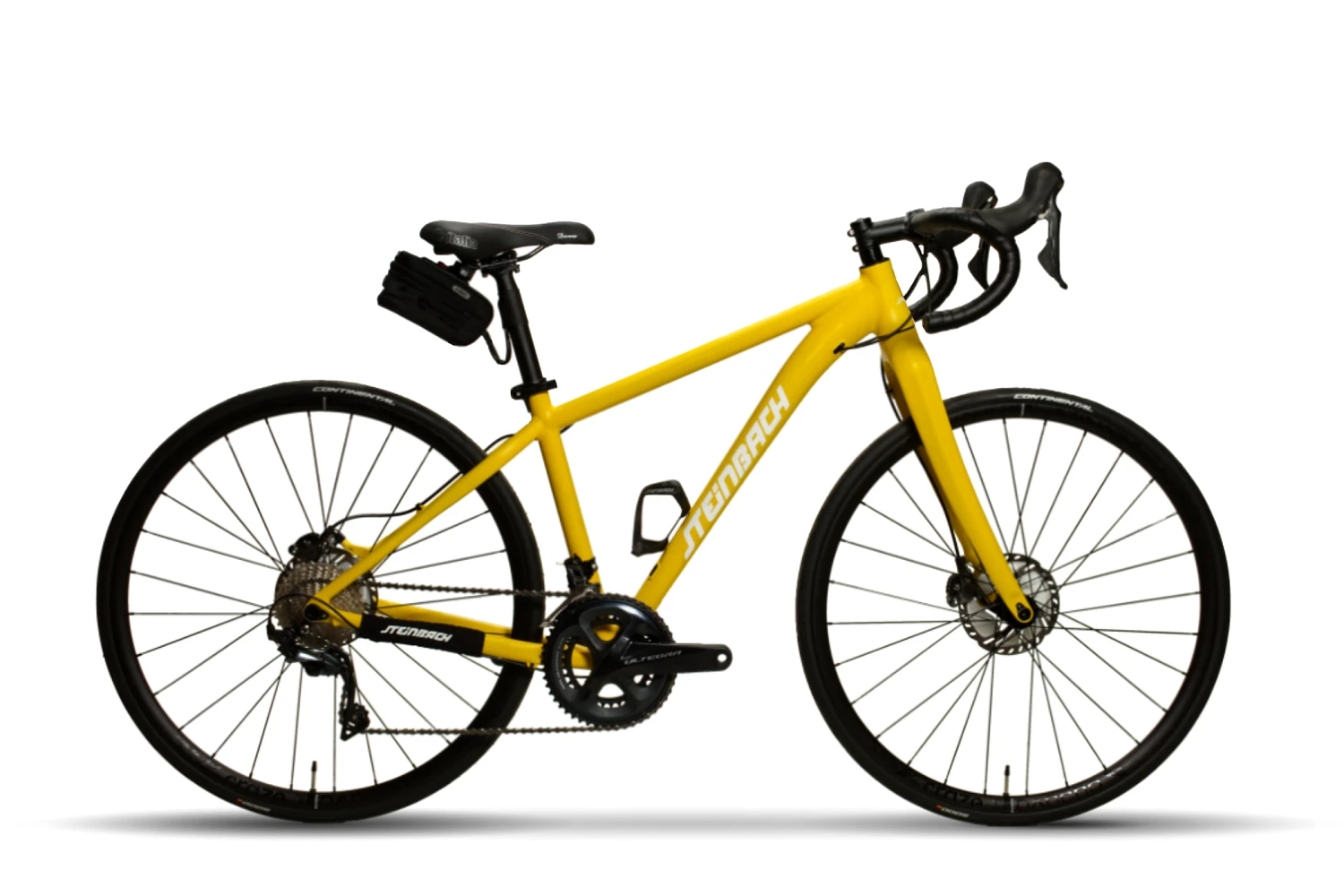

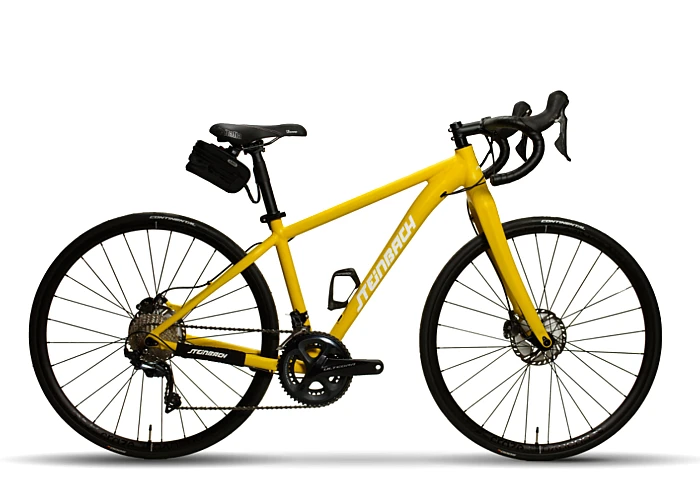

Pihapper Gravel Hybrid e-Bike

The Pihapper Gravel impresses with maximum rigidity, safe riding fun and optimal power transmission – making it ideal for crossover tours. Thanks to the double road bike crankset and selected components, it will overcome any obstacle with you.

Designed for
Gravel, Cross, Road & Tour
Wheel size
28''
Weight

Individual Design

Choose the colours and components of your bike to create your unique design. Thanks to our flexibility, our know-how and our experience, we can realise every step with the greatest care. Your name in bright green on a blue frame? Anything is possible! We design your new favourite bike together!



e-Bike Drive

We insist on Shimano quality for the mid-mounted motor and only install premium products combined with batteries up to 720 watts. Ideal for sporty riders who never want to do without the freedom of resistance-free cycling. The Steps e-motor is the lightest and most compact drive that allows free-wheeling. The system offers first-class torque, immediate power response and fast charging.



Accessories

Whether for a cycling trip or your daily ride to work, we equip your bike with the perfect accessories. So you’re always safely underway. From pedals to sports drink bottles. Perfectly prepared for that first cycling experience.



Aluminum-Magnesium Frame

The super-light AN6 aluminium-magnesium Hardtail frames are the Steinbach classic. Our roots. The large-volume, multi butted tubes have sophisticated elliptic designs and wall thicknesses of 0.9-1.6 mm. The laboriously produced tube sets are welded by hand. The “smooth-wide” welding technology results in welds that produce a smooth surface without finishing work and are extremely stable.
The geometry results from our years of analysis into how ergonomics helps to increase endurance.




Specification
Specs
High-End
Premium
Frame set
frame
Pihapper Aluminium Magnesium
Pihapper Aluminium Magnesium
Pihapper Aluminium Magnesium
size
39cm, 43cm, 48cm, 53cm
39cm, 43cm, 48cm, 53cm
39cm, 43cm, 48cm, 53cm
Electric drive
Mikromotor 9,3Ah akku
Mikromotor 9,3Ah akku
Mikromotor 9,3Ah akku

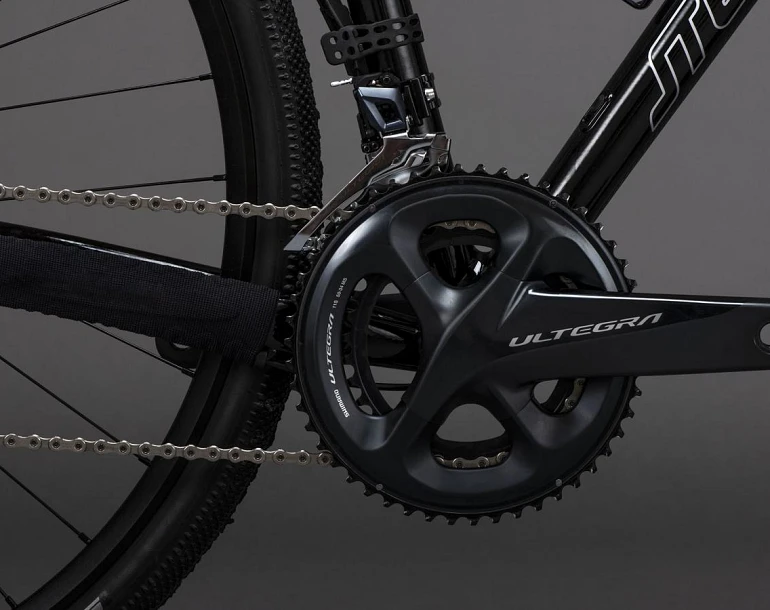

Chainset
Shimano Ultegra 2x11
Shimano Dura-Ace Di2
-
brake
Shimano Disk
Shimano Disk
-

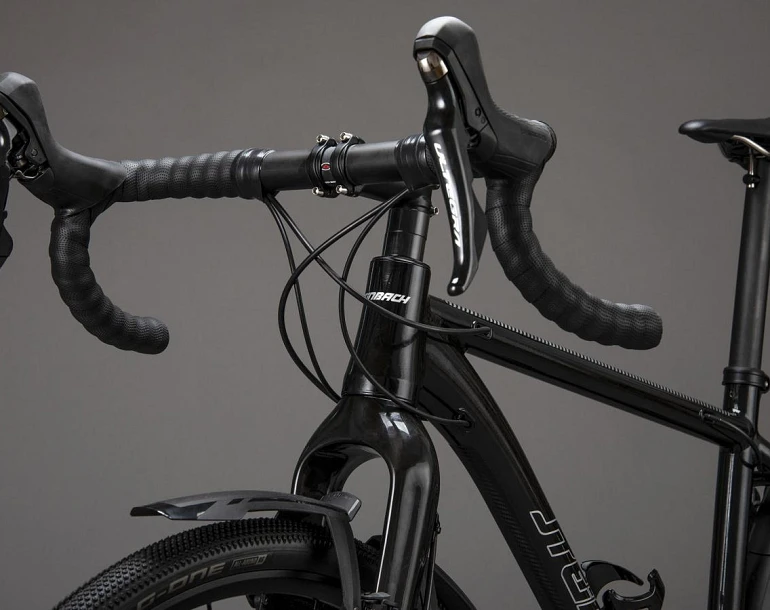

fork
Steinbach Carbon Starrgabel
Steinbach Carbon Starrgabel
-

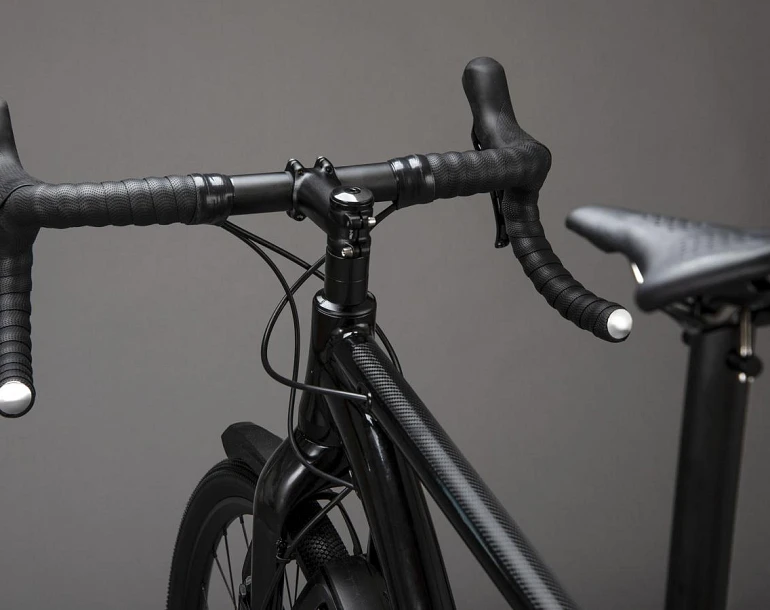

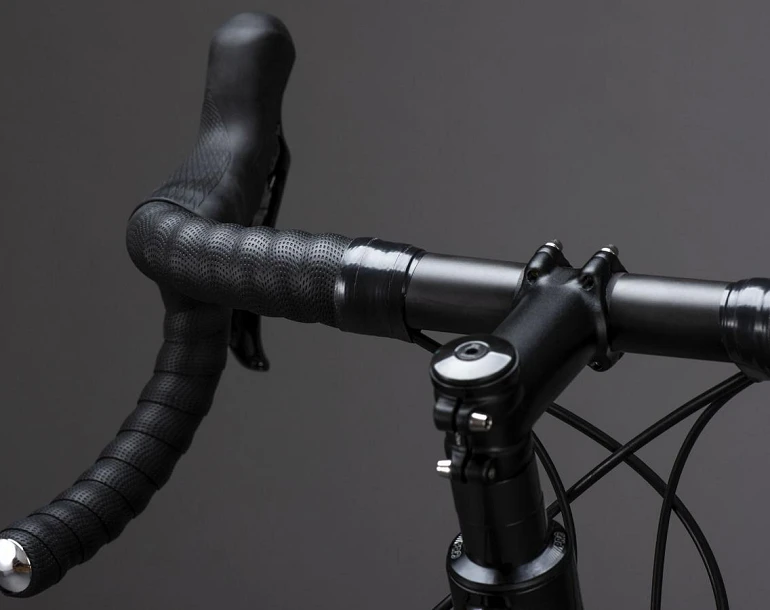

handlebars
Steinbach Carbon
Steinbach Carbon
KURBEL: Shimano Ultegra
Stem
Steinbach Alu
Steinbach Alu
-
Seat post
Steinbach Alu
Steinbach Carbon
Steinbach Alu
wheels
DT Swiss Felge/ Nabe 350
Carbon Rush Felge DT Swiss
-
tire
Schwalbe G-One 28x1,5
Schwalbe G-One 28x1,5
-
Weight
Prices include VAT

Geometry
geometry
15''
17''
19''
21''
Frame size CM
39
43
48
53
Seat tube
A
381
432
483
533
Seat tube
A1
323
370
423
473
Top tube
B
550
570
590
610
Head tube
C
100
105
110
120
Chain stay
D
445
445
445
445
wheelbase
E
1055
1075
1096
1117
Seat tube angle
F
73
73
73
73
Steering angle
G
69,5
69,5
69,5
69,5

Technologies that impress



Tailor-made
Customised

Each bike is created to meet individual size, ride and comfort requirements. All parts and components are selected to give you the unique ride experience of a Steinbach bike. Your personal Steinbach experience!

Lightweight frame
Lightweight frame

Full-carbon frame with oversized shaped tubes – perfectly designed for maximum rigidity and the highest ride comfort. Internal cables ensure a clean and aerodynamic design. The alu-magnesium Hardtail frame with triple butted tubes also impresses with a classic linear design. The geometry results from our years of analysis into how ergonomics helps to increase endurance.

Hand-spoked wheels
Hand-spoked wheels

By choosing the right tyres, you can achieve better adhesion to the road or maximum grip on rough terrain. Whether proven aluminium or high-end carbon rims – only the best for the rider. The extensively machined hubs, tuned spokes and smoothest bearings are the perfect connection to the ground.

Drive
Drive

Our hybrid e-bike system and Shimano Steps E-8000 are the slimmest, lightest and most powerful electric aids on the market and push boundaries. The systems offer first-class torques, extremely quiet operation, immediate power response and fast charging.

Individual Design
Individual Design

The sky is the limit – choose from over 700 RAL colours and more than 80 decorative colours, in matt or gloss. Create your favourite bike.
