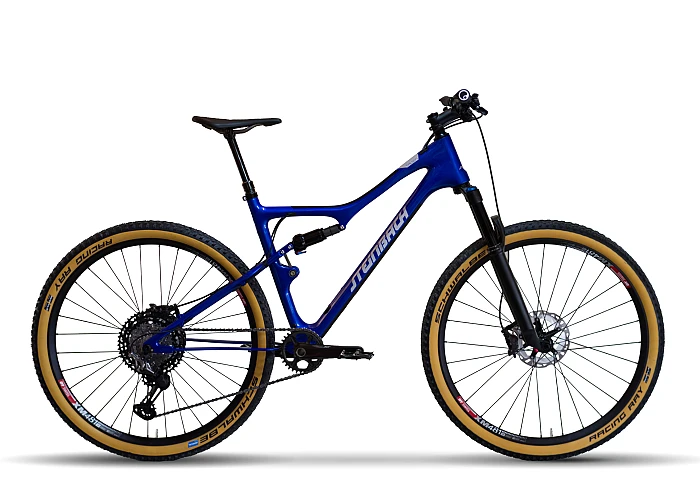

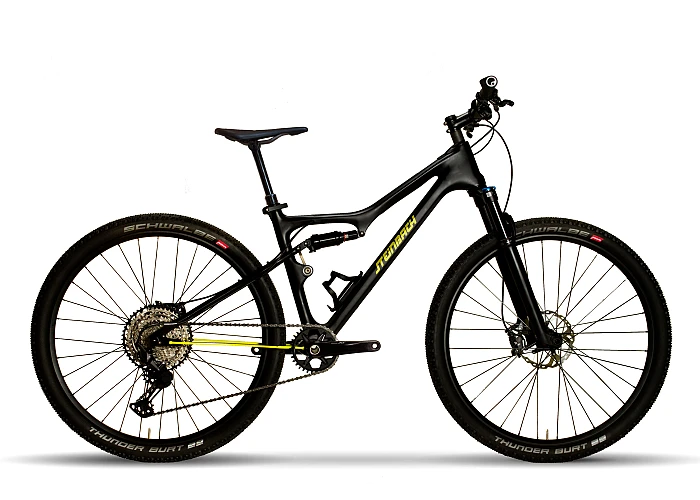

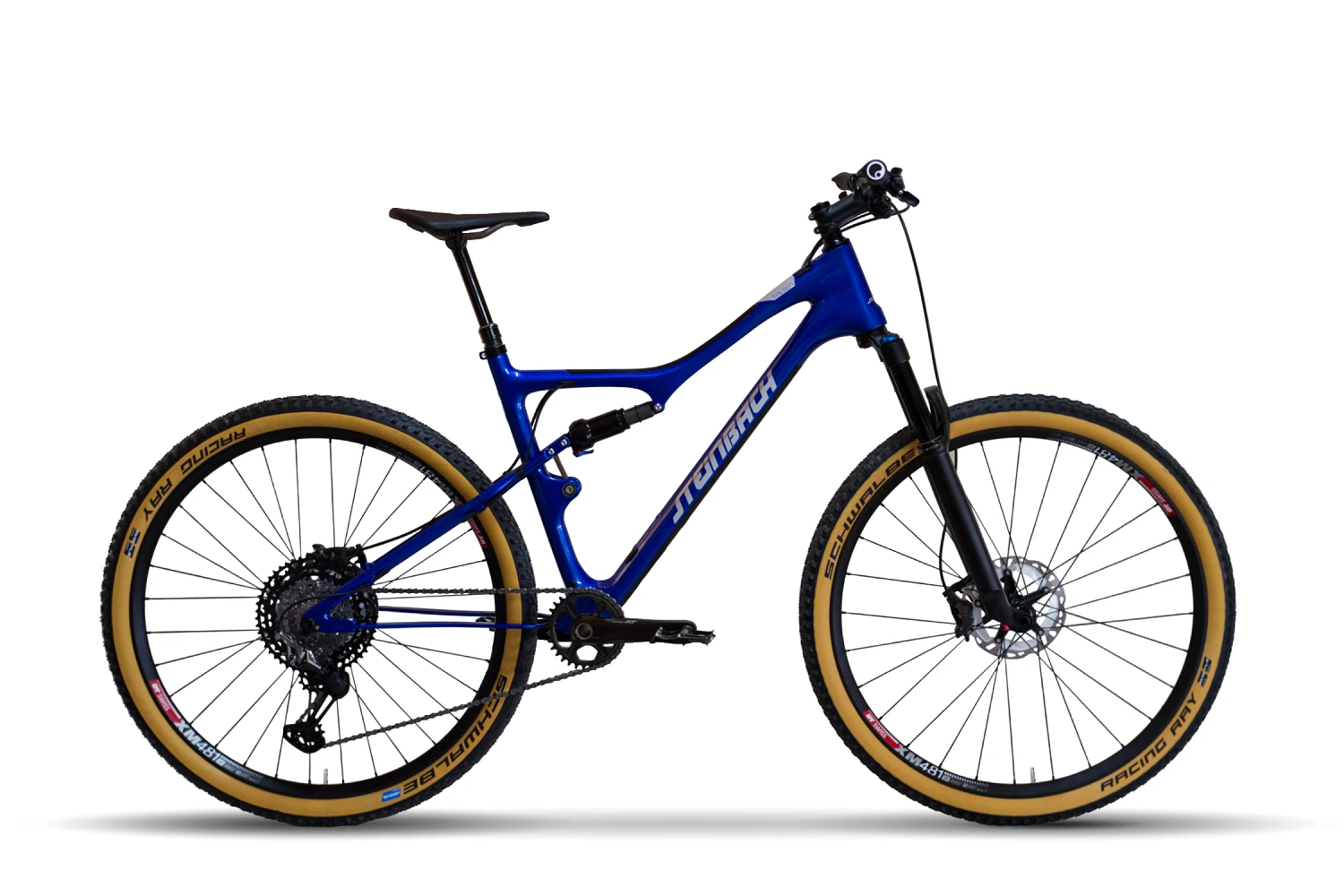

Talsen III Carbon

The Talsen 3.0 takes the fastest line with you. You “fly” over the demanding terrain safely and calmly in comfort. Thanks to optimised chainstays, the bike can also be fitted with bigger wheels to handle obstacles more easily – for improved ride comfort.

DESIGNED FOR
Mountain & Trail
WHEEL SIZE
27,5“/ 29“
WEIGHT
from 8.9 kg

Individual Design

Choose the colours and components of your bike to create your unique design. Thanks to our flexibility, our know-how and our experience, we can realise every step with the greatest care. Your name in bright green on a blue frame? Anything is possible! We design your new favourite bike together!


Frame carbon

Full-carbon frame with oversized shaped tubes – perfectly designed for maximum rigidity and the highest ride comfort. Internal cables ensure a clean and aerodynamic design. Slim, curved chainstays ensure maximum flex. In common with the athletes, who push the material to the absolute limit, we are constantly developing our products.


Accessories

Whether for a cycling trip or your daily ride to work, we equip your bike with the perfect accessories. So you’re always safely underway. From pedals to sports drink bottles. Perfectly prepared for that first cycling experience.




Specifications
Specifications
High End
Premium
Frame set
frame
Talsen III Carbon
Talsen III Carbon
Talsen III Carbon
size
39cm, 43cm, 48cm
39cm, 43cm, 48cm
39cm, 43cm, 48cm
chainset
Shimano XT 1x12
Shimano XTR 1x12
KURBEL: Shimano XT
brake
Shimano XT
Shimano XTR
-
fork
Fox 32 Float SC PS
Fox 32 K Float SC PS
-
damper
Rock Shox / Fox
Rock Shox / Fox
Rock Shox / Fox
handlebars
Steinbach Carbon
Steinbach Carbon
* headset
Stem
Steinbach Alu
Steinbach Alu
-
Seat post
Pro Koryak absenkbar
Fox Transfer
* Seat clamp
wheels
DT swiss 331 hand-spoked
Strike carbon rim hand-spoked
-
tires
Schwalbe bis 2,35 Breite
Schwalbe bis 2,35 Breite
-
saddle
Steinbach Sport
Steinbach Carbon
-
weight
ab 10,2 kg
ab 8,9 kg
3,4 kg
Price incl. VAT.
from € 4,390.00
from € 7,440.00
from € 2,090.00

Geometry
geometry
15"
17"
19"
21"
Frame size cm
39
43
48
53
Seat tube
A
394
432
483
530
top tube
B
570
592
616
634
Head tube
C
120
130
145
162
Chain stay
D
435
435
435
435
wheelbase
E
1072
1083
1096
2007
Seat tube angle
F
74°
74°
74°
74°
Steering angle
G
71°
71°
71°
71°
Technologies that impress



Customised
Customised

Each bike is created to meet individual size, ride and comfort requirements. All parts and components are selected to give you the unique ride experience of a Steinbach bike. Your personal Steinbach experience!

Lightweight frame
Lightweight frame

Full-carbon frame with oversized shaped tubes – perfectly designed for maximum rigidity and the highest ride comfort. Internal cables ensure a clean and aerodynamic design. The alu-magnesium Hardtail frame with triple butted tubes also impresses with a classic linear design. The geometry results from our years of analysis into how ergonomics helps to increase endurance.

Hand-spoked wheels
Hand-spoked wheels

By choosing the right tyres, you can achieve better adhesion to the road or maximum grip on rough terrain. Whether proven aluminium or high-end carbon rims – only the best for the rider. The extensively machined hubs, tuned spokes and smoothest bearings are the perfect connection to the ground.

Individual Design
Individual Design

The sky is the limit – choose from over 700 RAL colours and more than 80 decorative colours, in matt or gloss. Create your favourite bike.
