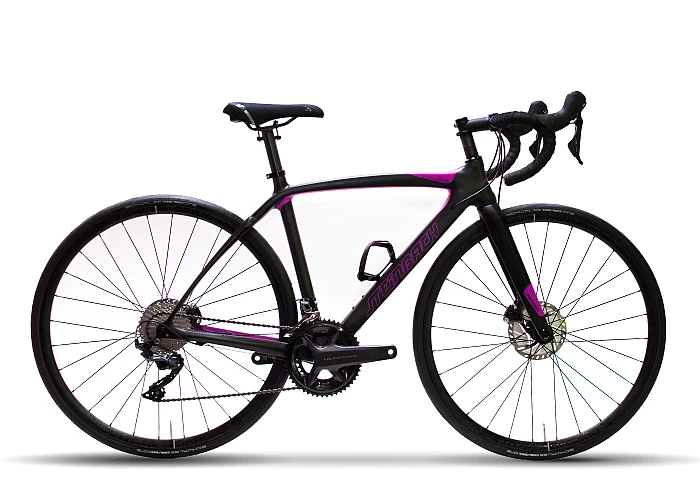

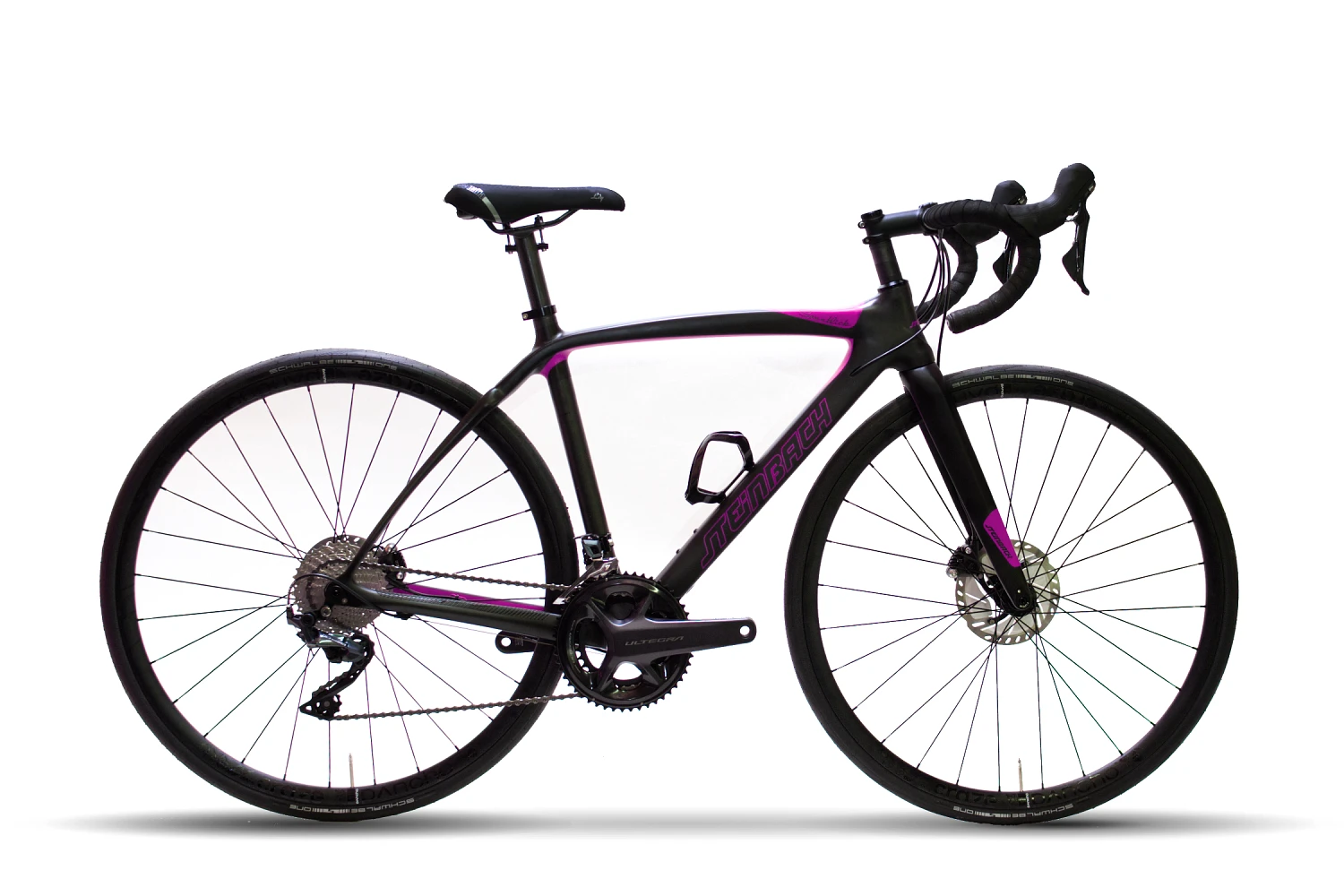

Sonnblick II Carbon



Like extremely long and hilly tours? Our Sonnblick is the perfect high-end road racing bike for professionals and ambitious amateurs. The slim and curved chainstays ensure maximum flex and ride comfort.

Designed for
Road
Wheel size
700C
weight
from 6.5 kg

Individual Design

Choose the colours and components of your bike to create your unique design. Thanks to our flexibility, our know-how and our experience, we can realise every step with the greatest care. Your name in bright green on a blue frame? Anything is possible! We design your new favourite bike together!


Carbon Frame

Full-carbon frame with oversized shaped tubes – perfectly designed for maximum rigidity and the highest ride comfort. Internal cables ensure a clean and aerodynamic design. Slim, curved chainstays ensure maximum flex. In common with the athletes, who push the material to the absolute limit, we are constantly developing our products.



Accessories

Whether for a cycling trip or your daily ride to work, we equip your bike with the perfect accessories. So you’re always safely underway. From pedals to sports drink bottles. Perfectly prepared for that first cycling experience.



Specifications
specification
High-End
Premium
Frame set
size
49cm, 52cm, 55cm, 58cm
49cm, 52cm, 55cm, 58cm
49cm, 52cm, 55cm, 58cm
frame
Sonnblick Carbon
Sonnblick Carbon
Sonnblick Carbon
chainset
Shimano Ultegra 2x11
Shimano Dura-Ace Di2
KURBEL: Shimano Ultegra 2x11
brake
Shimano Ultegra Bremsenzange
Shimano Dura-Ace Bremsenzange
-
fork
Steinbach Carbon
Steinbach Carbon
Steinbach Carbon for brake caliper incl .: seat clamp, steering bearing
handlebars
Steinbach Carbon
Steinbach Carbon
-
Stem
Steinbach Alu CNC
Steinbach Alu CNC
-
Seat post
Steinbach Alloy
Steinbach Carbon
-
wheels
DT Swiss RR411, handgespeicht
XeNTIS Squad Carbon
-
tires
Continental 700x25C
Continental 700x25C
-
saddle
Steinbach Sport
Steinbach Carbon
-
weight
6,5 kg
6,5 kg
950 g
Price incl. VAT.
from € 4,450.00
from € 8,640.00
from € 1,990.00

Geometry
geometry
-
19''
20''
22''
23''
Frame size cm
49
52
55
58
Seat tube
A
490
520
550
580
Seat tube
A1
430
460
490
520
top tube
B
520
535
555
580
Head tube
C
120
140
170
190
Chain stay
D
405
405
405
405
wheelbase
E
972
974
986
1005
Seat tube angle
F
75
74,5
73,5
73
Steering angle
G
73
73
73
73
Technologies that impress



Customised
Customised

Each bike is created to meet individual size, ride and comfort requirements. All parts and components are selected to give you the unique ride experience of a Steinbach bike. Your personal Steinbach experience!

Lightweight frame
Lightweight frame

Full-carbon frame with oversized shaped tubes – perfectly designed for maximum rigidity and the highest ride comfort. Internal cables ensure a clean and aerodynamic design. The alu-magnesium Hardtail frame with triple butted tubes also impresses with a classic linear design. The geometry results from our years of analysis into how ergonomics helps to increase endurance.

Hand-spoked wheels
Hand-spoked wheels

By choosing the right tyres, you can achieve better adhesion to the road or maximum grip on rough terrain. Whether proven aluminium or high-end carbon rims – only the best for the rider. The extensively machined hubs, tuned spokes and smoothest bearings are the perfect connection to the ground.

Individual Design
Individual Design

The sky is the limit – choose from over 700 RAL colours and more than 80 decorative colours, in matt or gloss. Create your favourite bike.
