The Elevator Gebra with carbon frame is our most popular custom e-bike with the most powerful motor! Very lightweight, slim, stable, reliable – in short a good choice for your daily ride or in the mountains.

Designed for
Mountain & Tour
Rims size
27.5“ / 29“
Weight
from 16.1 kg
Individuelles Design

Gib deinem Rad auch optisch noch mal eine persönliche Note. Du kannst aus über 700 RAL Farben sowie Sondermetallic Farben und mehr als 80 Dekorfarben den Look für dein Bike bestimmen. Ob dezent oder auffällig, glänzend oder matt - deine Entscheidung. Jedes Rad wird in deiner Wunschfarbe pulverbeschichtet/lackiert, mit dem entsprechenden Dekor versehen und klar überlackiert.

Dein Rad - dein Name. Benenne dein Rad und mache es auch optisch klar zu deinem Unikat.



e-Bike Drive

We insist on Shimano quality for the mid-mounted motor and only install premium products combined with batteries up to 720 watts. Ideal for sporty riders who never want to do without the freedom of resistance-free cycling. The Steps e-motor is the lightest and most compact drive that allows free-wheeling. The system offers first-class torque, immediate power response and fast charging.



Accessories

Whether for a cycling trip or your daily ride to work, we equip your bike with the perfect accessories. So you’re always safely underway. From pedals to sports drink bottles. Perfectly prepared for that first cycling experience.

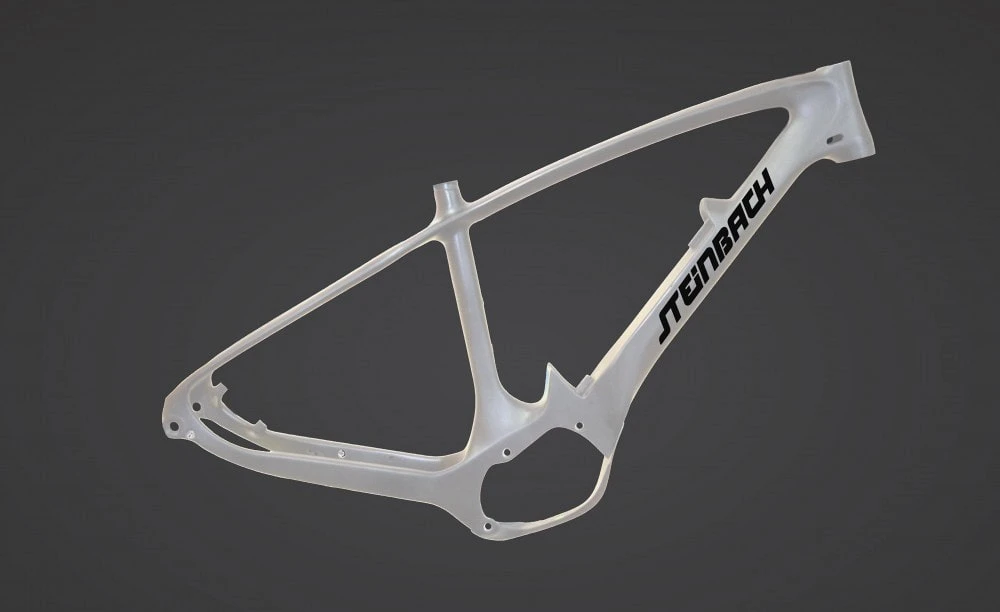

e-Bike Carbon frame

The certified full-carbon, top-performance carbon frames have an impressive simple look. These are uncomplicated frames that impress thanks to low weight, high rigidity and comfort. The high conical head tube and the tapered headset ensure optimal torsion resistance. The hidden cable guides are the other striking feature of the frames.




Specification
Zeile 1
High-End
Premium
frame
Gebra Carbon
Gebra Carbon
size
39cm, 43cm, 48cm, 53cm
39cm, 43cm, 48cm, 53cm
Electric drive
Shimano EP8 battery 504Wh/630Wh
Shimano EP8 battery 504Wh/630Wh
Chainset
Shimano XT Di2
Shimano XT Switch Di2 / XTR
brake
Shimano XT 4 Kolben
Shimano XTR 4 Kolben
fork
Fox 34A Float SC
Fox 34A Float SC
handlebars
Pro Koryak
Steinbach Carbon
Seat post
Pro Koryak
Steinbach Carbon
Wheels
DT Swiss 481 hand-spoked
PW Strike Carbon 27.5 ”hand-spoked
tires
Schwalbe 27.5“, 27.5“ / 29“, 29“
Schwalbe bis 2,35
saddle
Steinbach Comfort
Steinbach Sport
Weight
from 17 kg
from 16.5 kg
Prices include VAT
from € 5,990.00
from € 8,990.00

Geometry
Zeile 1
15
17
19
21
Frame size cm
A
39
43
48
53
top tube
B
570
590
615
635
Head tube
C
125
105
130
120
Chain stay
D
455
445
435
445
wheelbase
E
1102
1075
1128
1117
Seat tube angle
F
67°
67°
66,8°
66,6°
Steering angle
G
69°
69°
69°
69°

Technologies that impress



Customised
Customised

Each bike is created to meet individual size, ride and comfort requirements. All parts and components are selected to give you the unique ride experience of a Steinbach bike. Your personal Steinbach experience!

Lightweight frame
Lightweight frame

Full-carbon frame with oversized shaped tubes – perfectly designed for maximum rigidity and the highest ride comfort. Internal cables ensure a clean and aerodynamic design. The alu-magnesium Hardtail frame with triple butted tubes also impresses with a classic linear design. The geometry results from our years of analysis into how ergonomics helps to increase endurance.

Hand-spoked wheels
Hand-spoked wheels

By choosing the right tyres, you can achieve better adhesion to the road or maximum grip on rough terrain. Whether proven aluminium or high-end carbon rims – only the best for the rider. The extensively machined hubs, tuned spokes and smoothest bearings are the perfect connection to the ground.

Drive
Drive

Our hybrid e-bike system and Shimano Steps E-8000 are the slimmest, lightest and most powerful electric aids on the market and push boundaries. The systems offer first-class torques, extremely quiet operation, immediate power response and fast charging.

Individual Design
Individual Design

The sky is the limit – choose from over 700 RAL colours and more than 80 decorative colours, in matt or gloss. Create your favourite bike.
