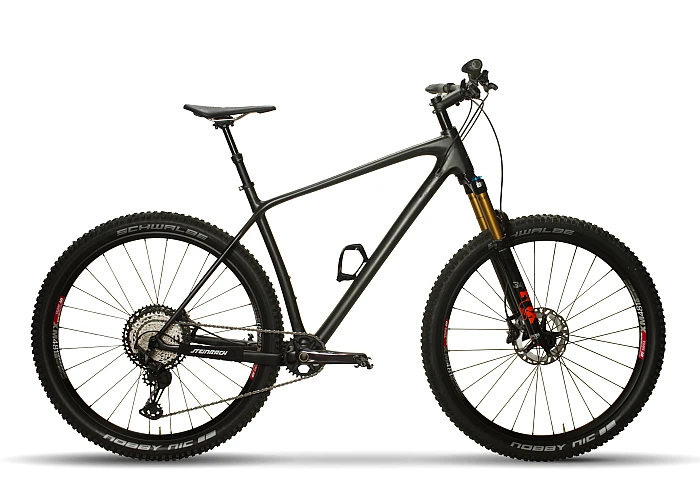

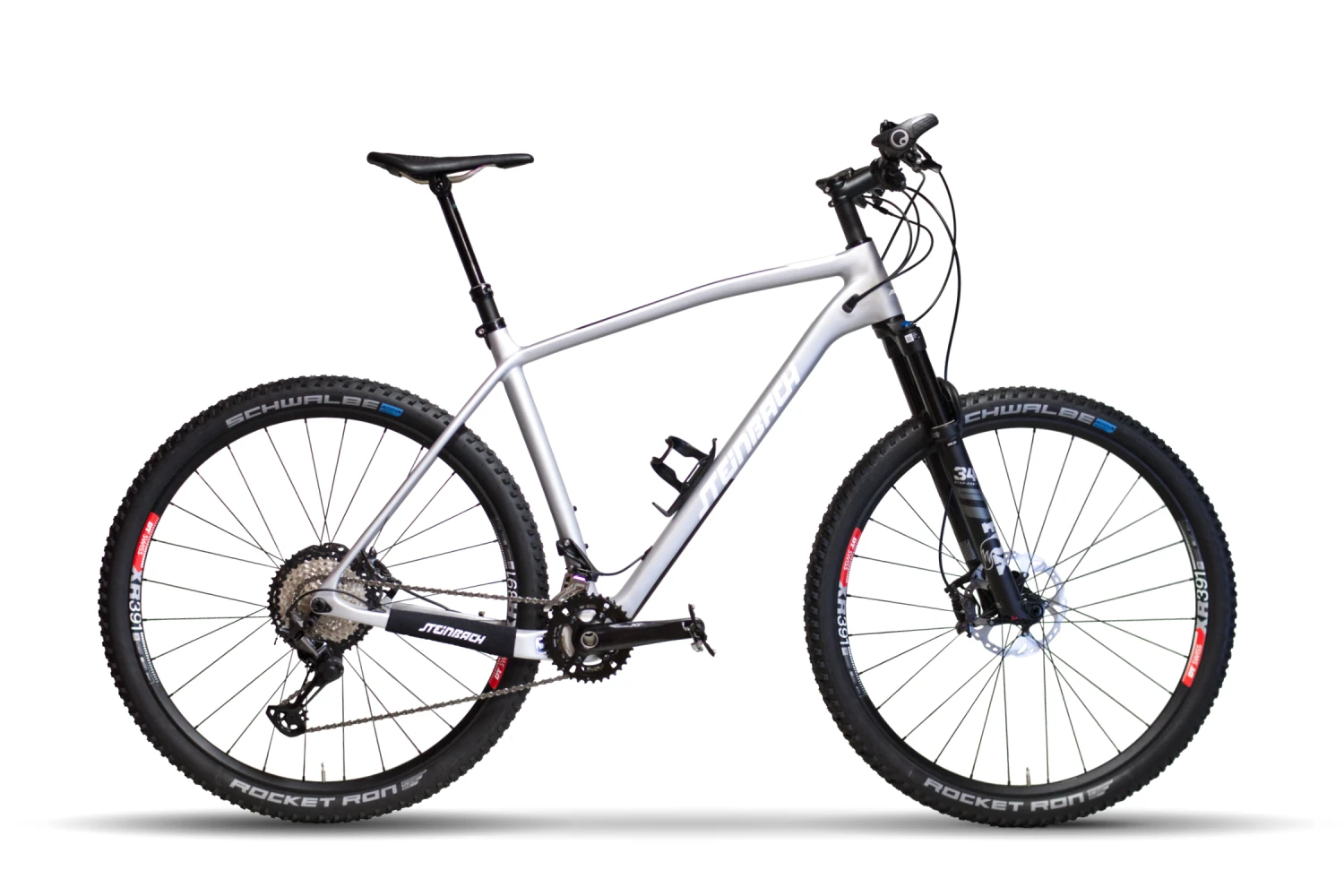

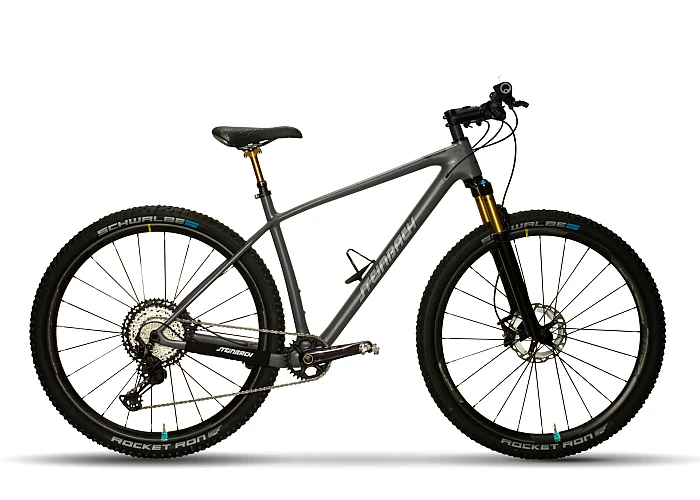

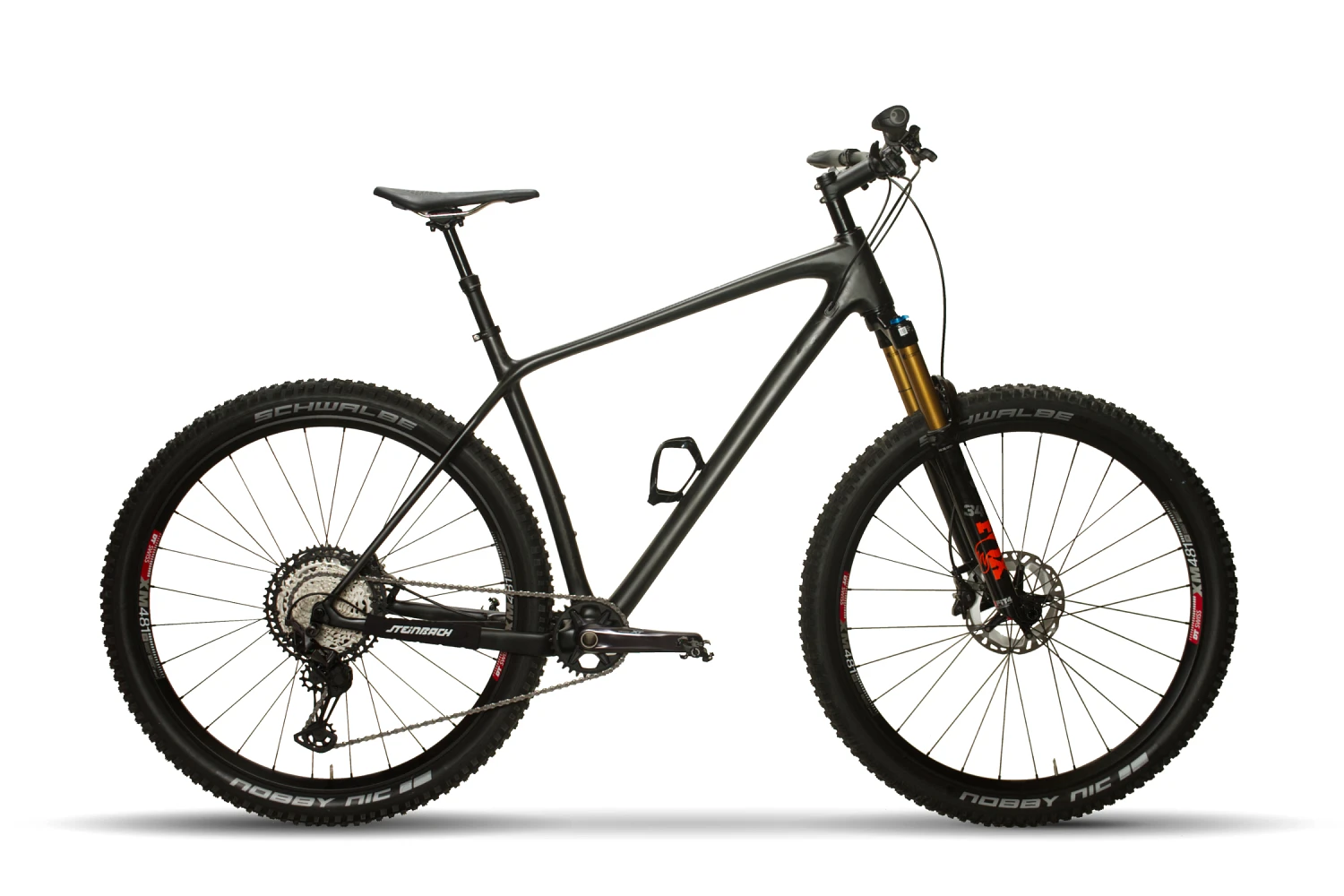

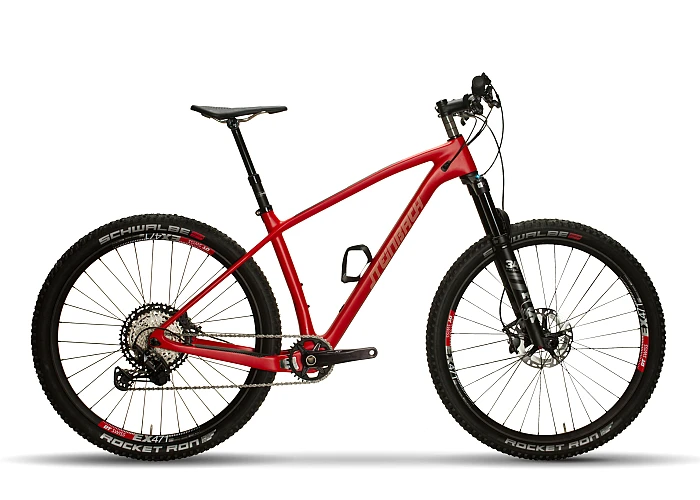

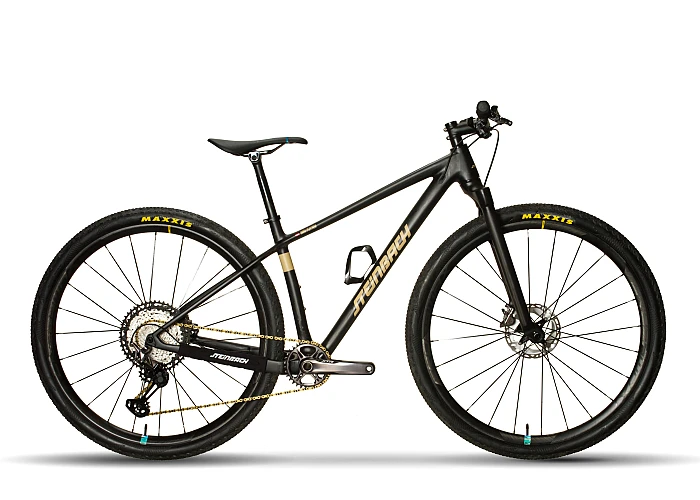

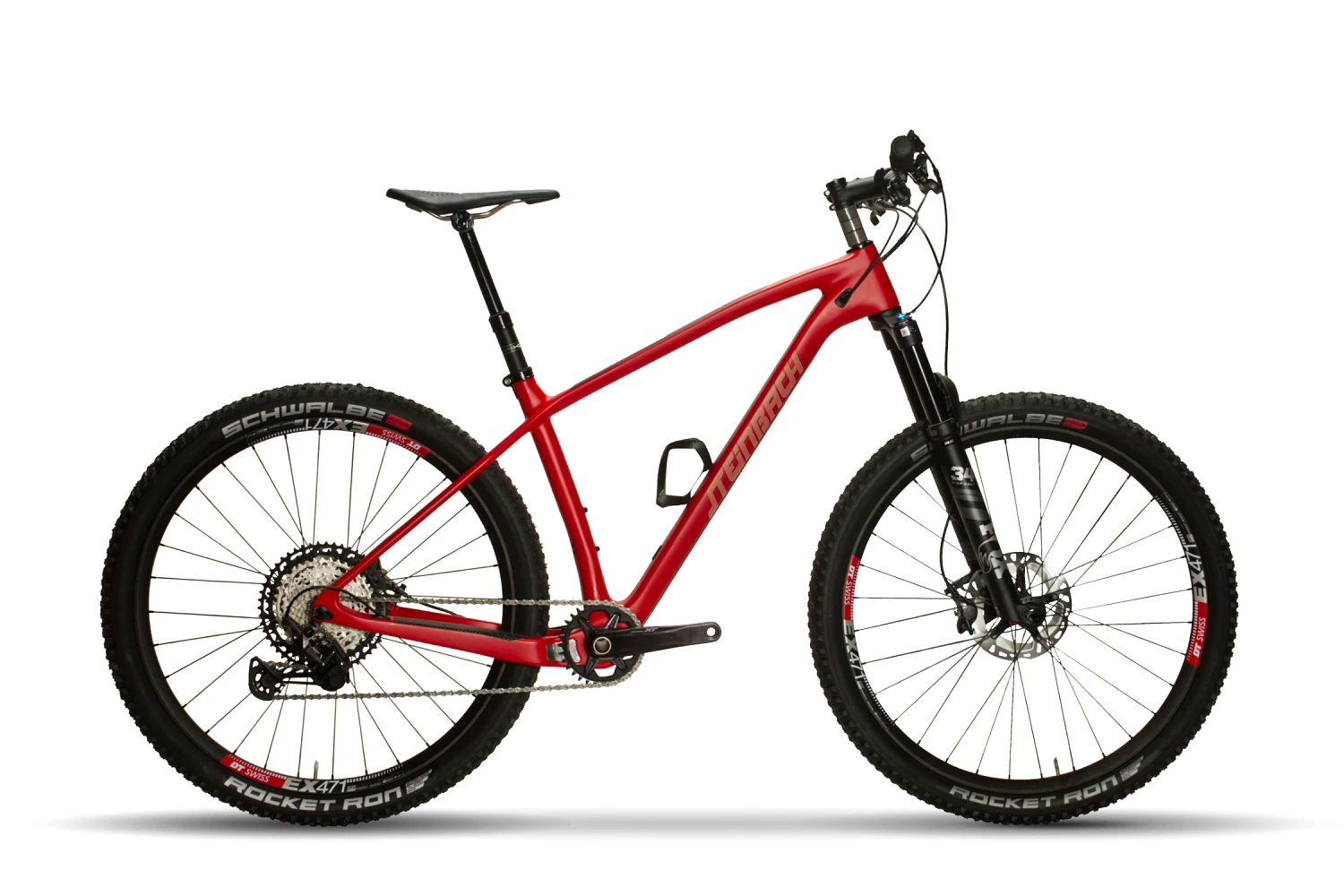

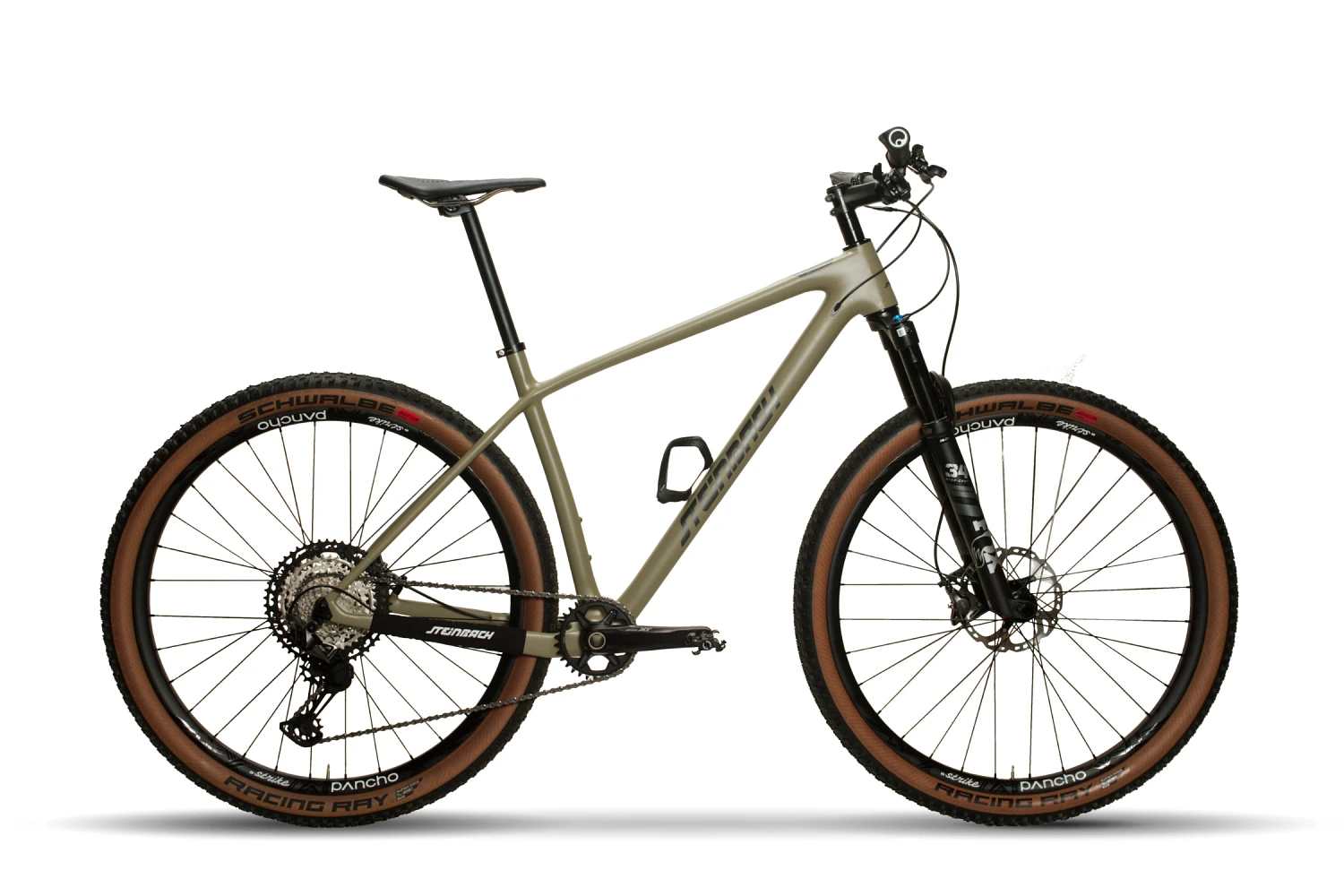

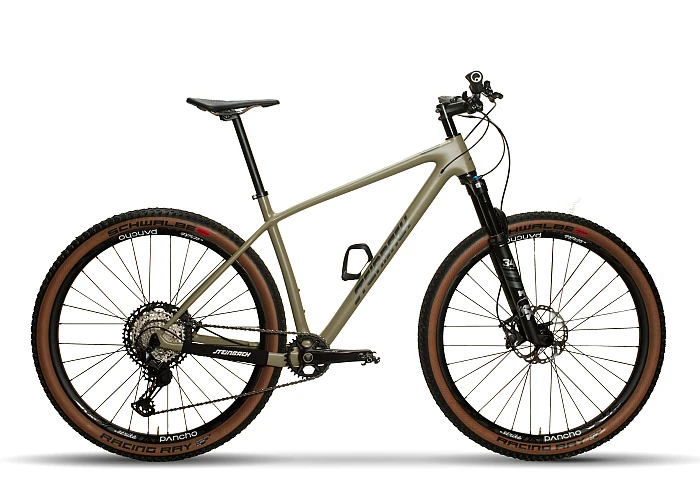

Fleiding III website in progress


website in Progress

Designed for
mountain & trail
wheel size
27,5" / 29"
Weight
from 7,4 kg
Individual design

Choose the colours and components of your bike to create your unique design. Thanks to our flexibility, our know-how and our experience, we can realise every step with the greatest care. Your name in bright green on a blue frame? Anything is possible! We design your new favourite bike together!

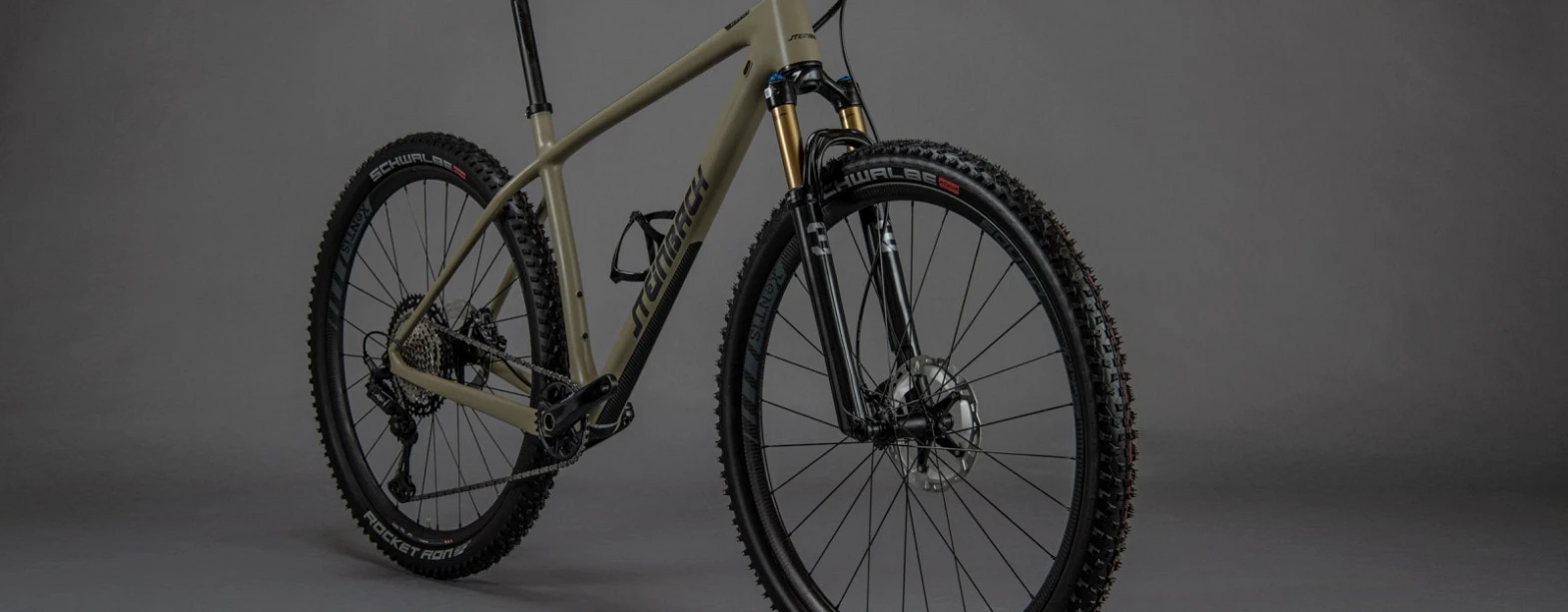

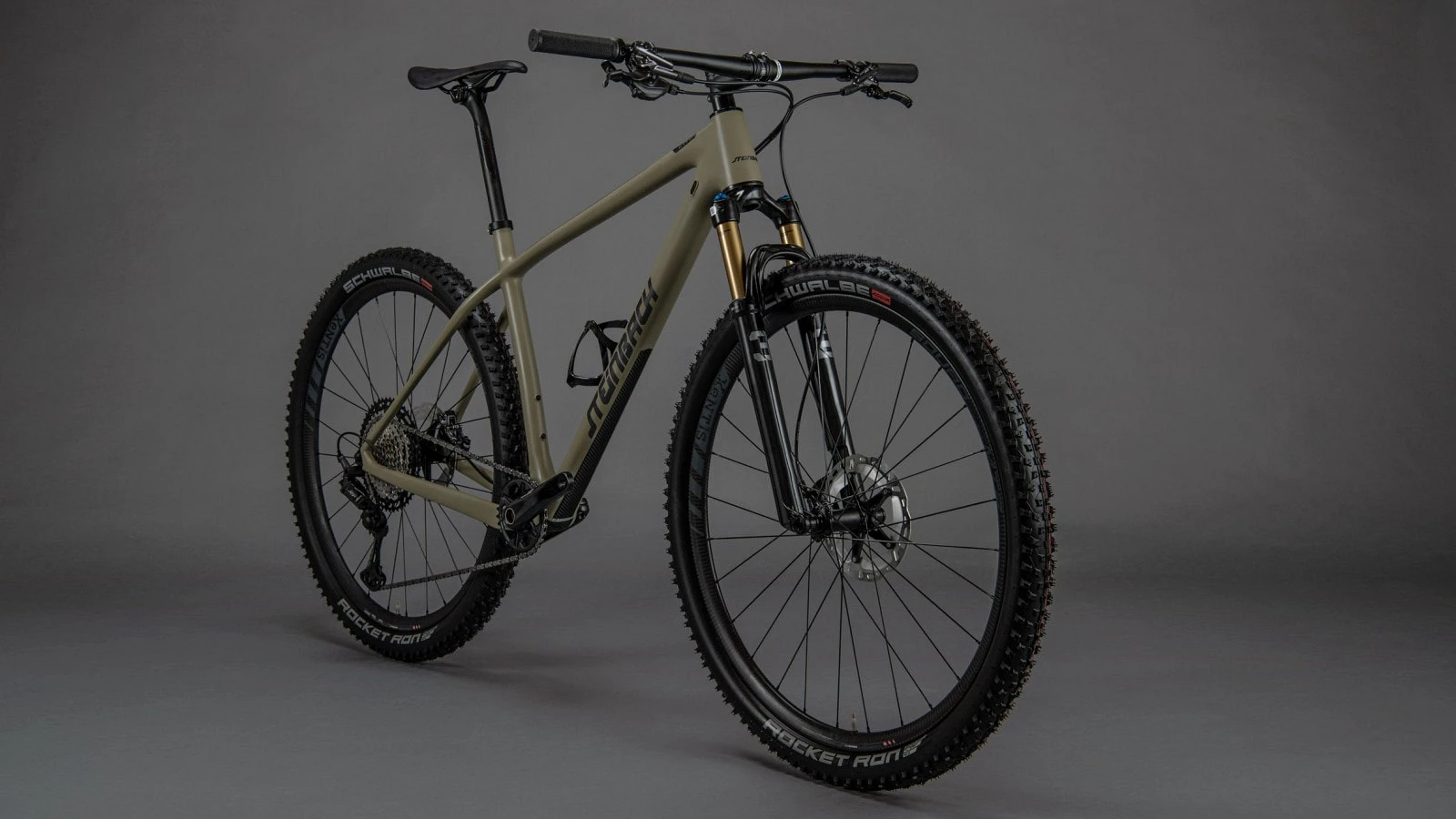

carbon frame

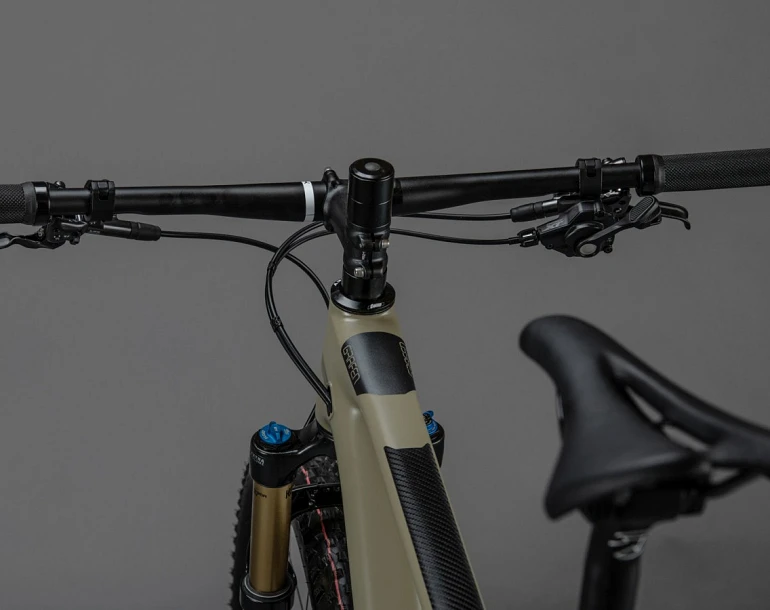

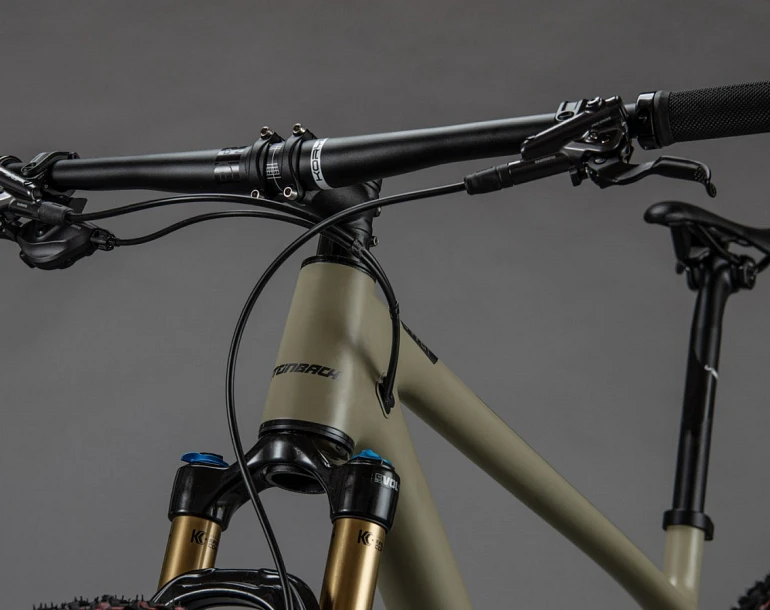

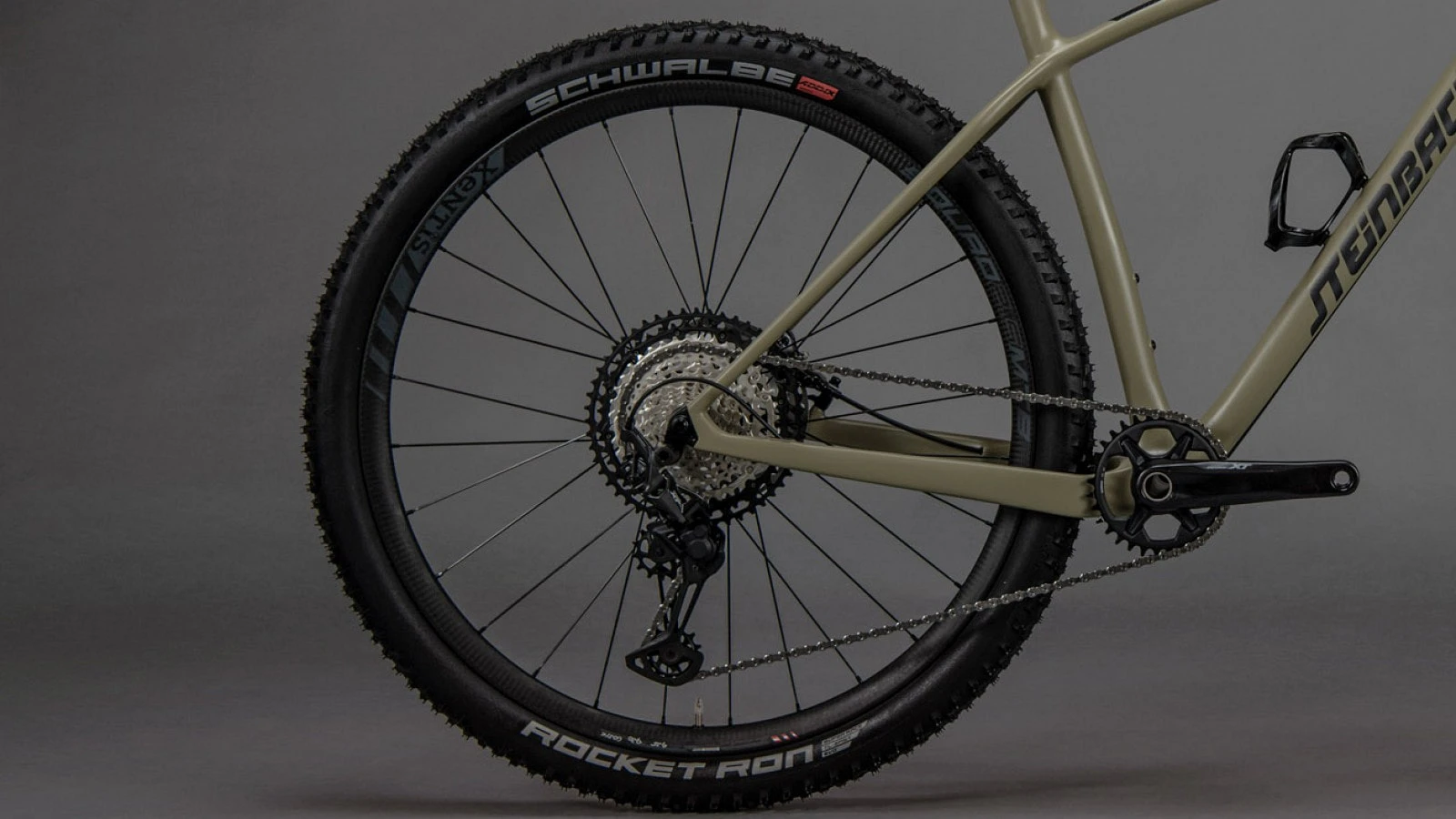

Perfectly shaped carbon frame with intern routed cables for a tidy look and aesthetic appearance. With the large-volume trapez-form down tube and flat top tube, the basic requirements for the magnificent riding characteristics. The revolutionary wheel dual system, with a 27.5" wheel at the back as a fast, active drive unit. At the front the 29" wheel makes a soft, comfortably and a stable ride.


Accessories

Whether for a cycling trip or your daily ride to work, we equip your bike with the perfect accessories. So you’re always safely underway. From pedals to sports drink bottles. Perfectly prepared for that first cycling experience.




specifications
wert
High-End
Premium
size
S, M, L
S, M, L
frame
Fullcarbon Monocoque
Fullcarbon Monocoque

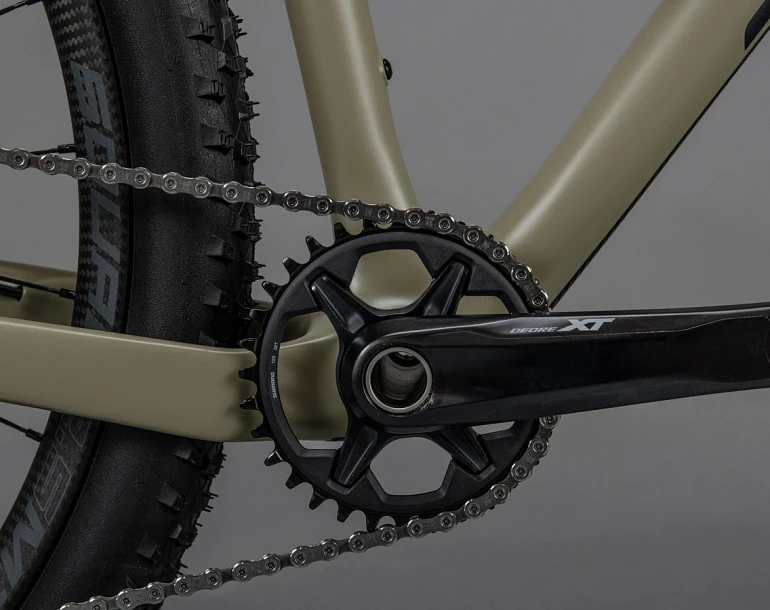

chainset
Shimano XT 1x12
Shimano XTR 1x12
Brake
Shimano XT / 2 pistons
Shimano XTR / 2 pistons
Wheel Fork
Fox 32 Performance
Steinbach Carbon Starrgabel

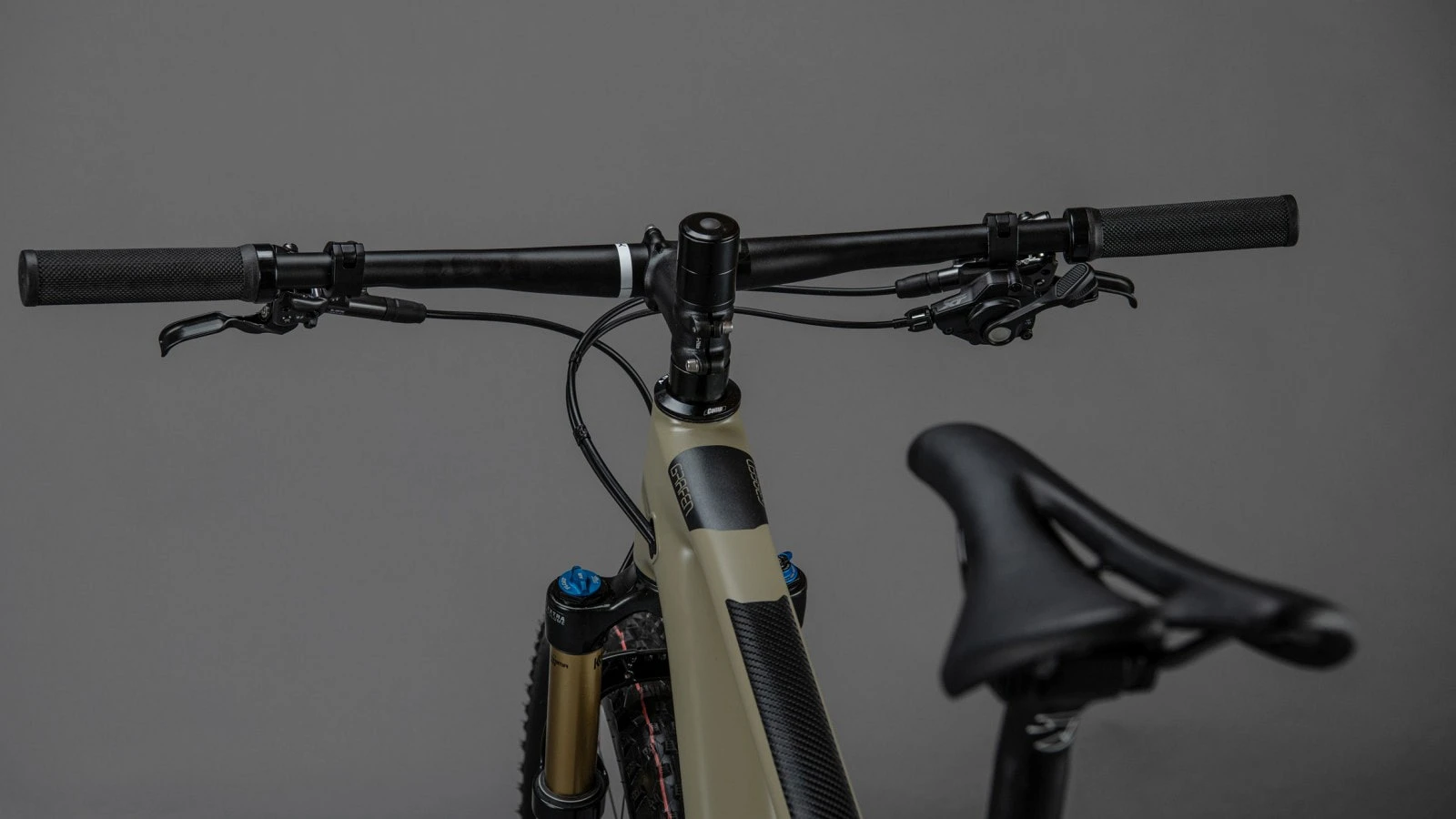

Handelbars
Steinbach Carbon
Steinbach Carbon
stem
Steinbach Alu
Steinbach Alu
seatpost
Steinbach Carbon
Pro Vibe Carbon
rims
DT Swiss 331, hand-spoked
Mavic Carbon Cross Max
tires
Schwalbe Racing Ray
Maxxis Maxlite
saddle
Steinbach Sport
Steinbach Race Carbon
Weight
from 9,7 kg
from 7,4 kg
Price incl. VAT
on request
on request


- REQUEST / CONTACT -

Feel the difference, best customization and comfort according to your wishes.



Geometry given in MM
Size
S
M
L
XL
seat tube
A
420
450
490
530
top tube
B
579,8
600,2
620,7
646,9
headl tube
C
91,8
92,7
110,7
128,7
chainstay
D
437
437
437
437
wheelbase
E
1079,4
1094,9
1116
1137
seat tube angle
F
70°
70,5°
70,5°
70,5°
steering angle
G
73,5°
73,5°
73,5°
73°
Technologies that impress



Customised
Customised

Each bike is created to meet individual size, ride and comfort requirements. All parts and components are selected to give you the unique ride experience of a Steinbach bike. Your personal Steinbach experience!

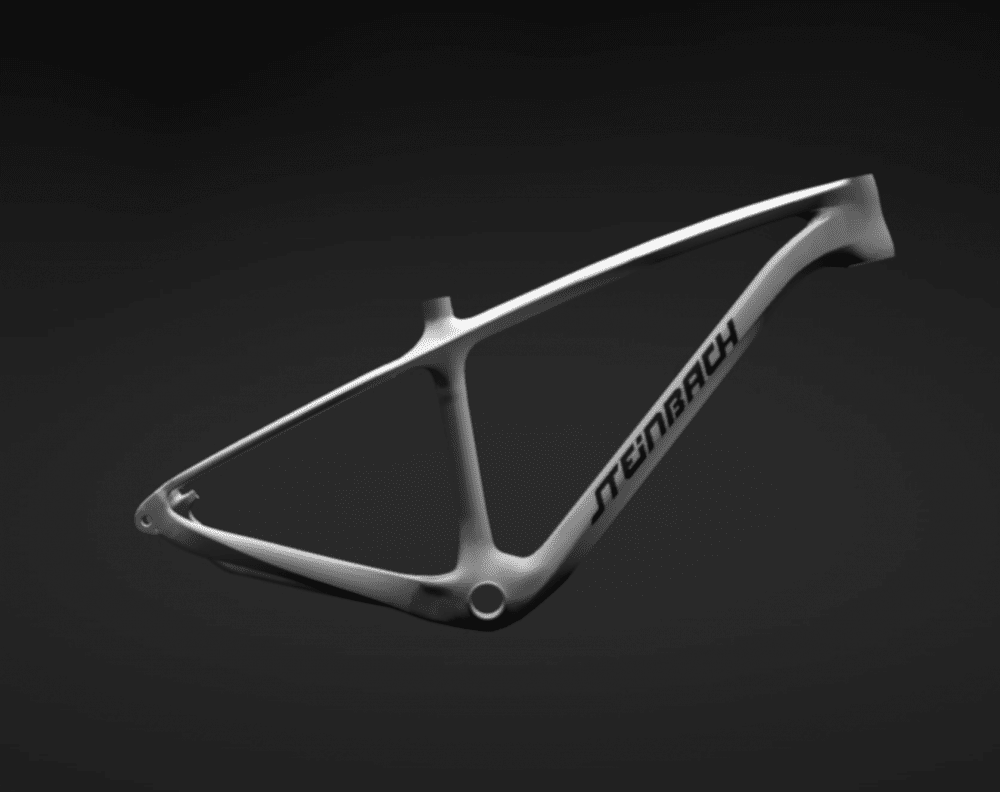

Lightweight frame
Lightweight frame

Full-carbon frame with oversized shaped tubes – perfectly designed for maximum rigidity and the highest ride comfort. Internal cables ensure a clean and aerodynamic design. The alu-magnesium Hardtail frame with triple butted tubes also impresses with a classic linear design. The geometry results from our years of analysis into how ergonomics helps to increase endurance.

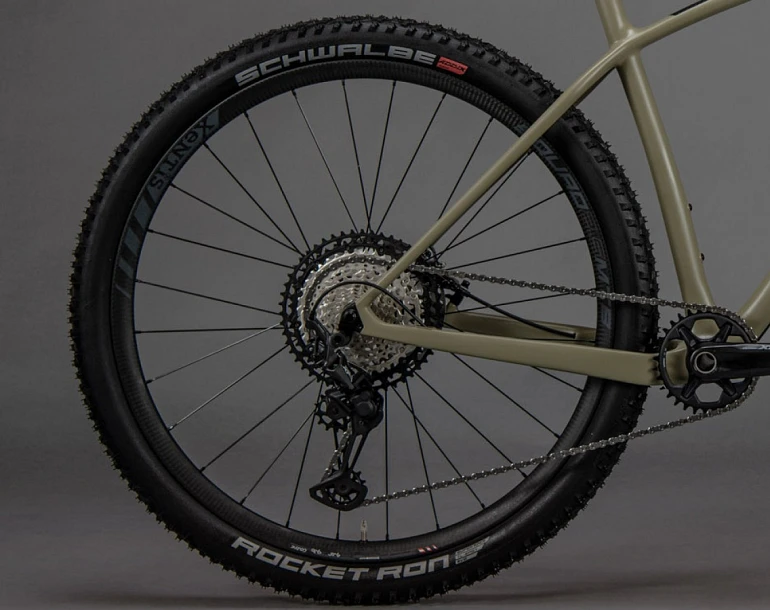

Hand-spoked wheels
Hand-spoked wheels

By choosing the right tyres, you can achieve better adhesion to the road or maximum grip on rough terrain. Whether proven aluminium or high-end carbon rims – only the best for the rider. The extensively machined hubs, tuned spokes and smoothest bearings are the perfect connection to the ground.

Individual Design
Individual Design

The sky is the limit – choose from over 700 RAL colours and more than 80 decorative colours, in matt or gloss. Create your favourite bike.
