Hop on the Brenten and get off-road! Amazing viewpoints, narrow trails, steep slopes – with this carbon e-bike you can go anywhere. This bike will go through ups and downs with you – you will love it.



Designed for
Mountain, Trail & Tour
Rims size
27.5“ / 29“
Weight
from 19 kg
Individual design

Choose the colours and components of your bike to create your unique design. Thanks to our flexibility, our know-how and our experience, we can realise every step with the greatest care. Your name in bright green on a blue frame? Anything is possible! We design your new favourite bike together!


e-bike drive

We use Shimano quality for the mid-motor and only use the premium class in combination with batteries up to 720 watts. Ideal for sporty bikers who never want to be without the freedom of resistance-free cycling again. The Steps e-Motor is the lightest and most compact freewheel drive. The system offers best-in-class torque, instantaneous power response and fast charging.



Accessories

Whether for a cycling trip or your daily ride to work, we equip your bike with the perfect accessories. So you’re always safely underway. From pedals to sports drink bottles. Perfectly prepared for that first cycling experience.

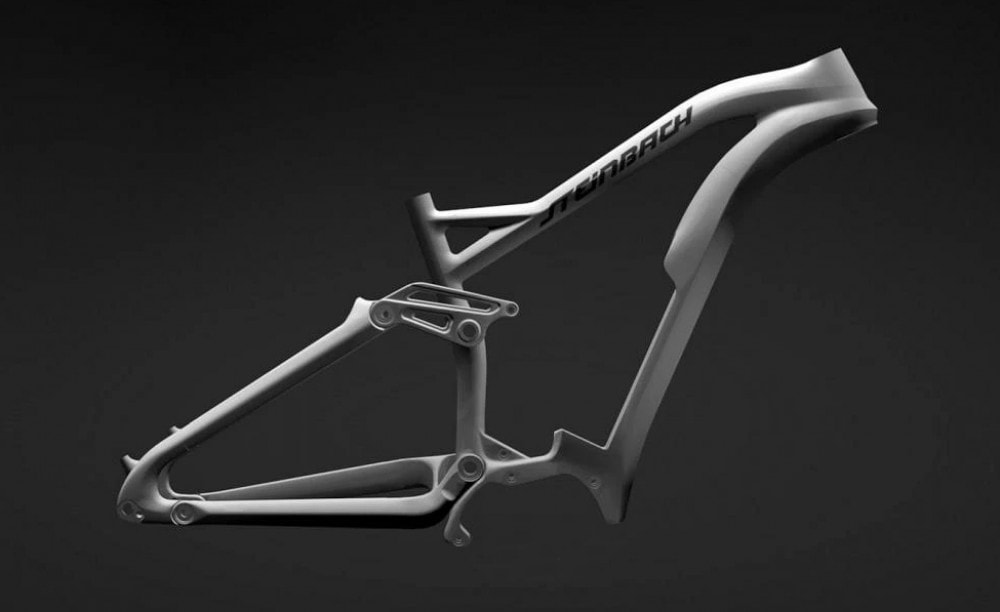

E-Bike Carbon Rahmen

Die vollcarbon-zertifizierten top Performance Carbon Rahmen überzeugen durch deren schlichte Optik. Es sind unkomplizierte Rahmen, welche mit wenig Gewicht, hohe Steifigkeit und Komfort überzeugen. Das hohe konische Kopfrohr und das tapered Steuerlager sorgen für optimale Verwindungssteifigkeit. Die Rahmen glänzen zudem mit den verborgenen Seilführungen.




Specifications
Zeile 1
High-End
Premium
size
43cm
43cm
frame
Brenten Carbon
Brenten Carbon
Electric drive
Shimano EP8 battery 504 Wh/630 Wh
Shimano EP8 battery 504 Wh/630 Wh
chainset
Shimano XT 1x11 / Di2
Shimano XT 1x11 / Di2
brake
Shimano XT 4 Kolben
Shimano XTR 4 Kolben
wheel fork
FOX 32 A Float SC PS 140mm
FOX 32 A Float SC PS 140mm
damper
FOX Float DPS Performance
FOX Float DPS Performance
handlebars
Pro Di2 Koryak
Pro Di2 Tharsis
Stem
Pro Koryak Di2
Pro Di2 Tharsis
Seat post
Pro Koryak Di2
Pro Di2 Tharsis
rims
DT Swiss 481 hand-spoked
DT Swiss 481 hand-spoked
tires
Schwalbe Rocket Ron 27.5“ / 29“
Schwalbe Rocket Ron 27.5“
saddle
Steinbach comfort
Steinbach sport
Weight
from 18 kg
from 17.2 kg
Prices include VAT
from € 6,990.00
from € 7,890.00


FEEL THE DIFFERENCE



Geometry given in MM
Zeile 1
17"
seat tube
A
430
top tube
B
600
Head tube
C
110
Chain stay
D
475
wheelbase
E
1215
Seat tube angle
F
73°
Steering angle
G
67°

Technologies that impress



Customised
Customised

Each bike is created to meet individual size, ride and comfort requirements. All parts and components are selected to give you the unique ride experience of a Steinbach bike. Your personal Steinbach experience!

Lightweight frame
Lightweight frame

Full-carbon frame with oversized shaped tubes – perfectly designed for maximum rigidity and the highest ride comfort. Internal cables ensure a clean and aerodynamic design. The alu-magnesium Hardtail frame with triple butted tubes also impresses with a classic linear design. The geometry results from our years of analysis into how ergonomics helps to increase endurance.

Hand-spoked wheels
Hand-spoked wheels

By choosing the right tyres, you can achieve better adhesion to the road or maximum grip on rough terrain. Whether proven aluminium or high-end carbon rims – only the best for the rider. The extensively machined hubs, tuned spokes and smoothest bearings are the perfect connection to the ground.

Drive
Drive

Our hybrid e-bike system and Shimano Steps EP-8 serie the slimmest, lightest and most powerful electric aids on the market and push boundaries. The systems offer first-class torques, extremely quiet operation, immediate power response and fast charging.

Individual Design
Individual Design

The sky is the limit – choose from over 700 RAL colours and more than 80 decorative colours, in matt or gloss. Create your favourite bike.
